Sony VPLFHZ131L Overview

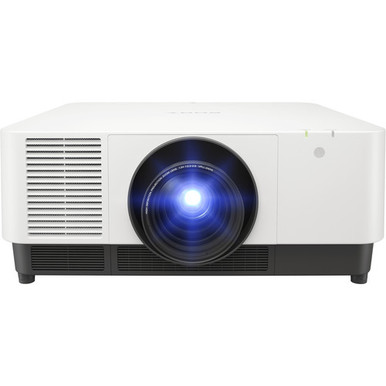

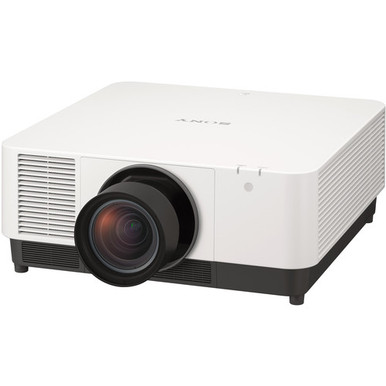

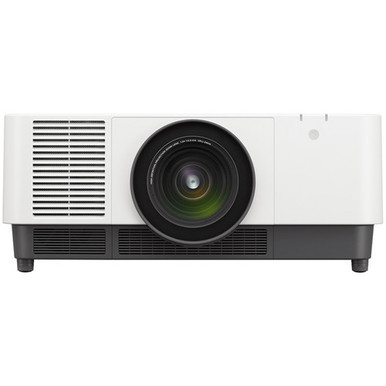

Enjoy bright, high-contrast images in classrooms, meeting rooms, museums, and entertainment venues with the white Sony VPL-FHZ131L/W 13,000-Lumen WUXGA Laser 3LCD Projector. Its 13,000 lumens of brightness and virtually infinite dynamic contrast ratio work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 3LCD display system with a 1920 x 1200 WUXGA native resolution for viewing HD video and detailed pictures or data. The projector uses separately available lenses that provide a range of throw distances and zoom values to meet the needs of various installation settings.
The VPL-FHZ131L/W features HDBaseT, VGA, DVI-D, 5BNC, and HDMI inputs for connecting to nearly any source as well as a VGA output for passing video through the projector to another projector or display. The projector is controllable by various popular control systems via HDBaseT, RS-232, or the included remote control.
Designed to Provide Bright Image in Large Venues The 13,000-lumen brightness output helps ensure big-screen presentations with extra presence, even in brightly lit rooms. Reality Creation Technology Image quality is boosted by Sony's Reality Creation technology, which uses a pattern-matching database to optimize low-resolution images, enhancing clarity without increasing digital picture noise. Designed for Fast, Simple Setup Sony's Intelligent Setting function is engineered to simplify installation with presets to optimize brightness, cooling, color, and other projector settings to provide clear images in nearly any environment, including meeting rooms, classrooms, museums, entertainment venues, and multi-screen setups. Flexible Installation With lens shift adjustment and a variety of interchangeable lens options, you can install the projector in nearly any space, including classrooms and halls with high ceilings. A short-throw lens is also available for positioning the projector close to the screen to avoid ceiling-mounted obstructions. Reduced Maintenance Design The laser light source provides up to 20,000 hours of operation without lamp replacement, reducing maintenance needs when compared to lamp-based projectors. Brightness is also maintained through the light source's lifespan. Networked Control and Monitoring The VPL-FHZ131L/W is suitable for integration in A/V environments with popular control, monitoring, and management systems like Crestron Connected and Extron XTP Systems. Edge Blending Seamlessly join color-matched images from multiple projectors for super-sized displays in corporate and education environments. Lens Shift Enjoy enhanced projector position flexibility thanks to the generous lens shift range. Designed to Blend In The projector features a flat-top surface to help it discreetly blend into nearly any space when it's mounted to the ceiling. Lens Position Memory Store and recall up to six settings for projected image size, position, and aspect ratio, saving time in different environments. This feature exclusively works with the VPLL-Z4111 lens option. Designed for Easy Lens Swapping A variety of lens options let you customize the projector to suit virtually any size room and throw requirements. A quick release bayonet mount helps simplify lens exchange. Additional Features
- BrightEra LCD panels
- Powered or manual focus and zoom, depending on lens used
- 10,000-hour maximum filter replacement cycle
- Infinite dynamic contrast ratio
- Meets 100% of the sRGB color space in sRGB Mode
- Up to ±30° of horizontal and vertical keystone correction, depending on lens used
- Slot for optional BKM-PJ20 3G-SDI input adapter
- HTML viewer
- Automatic standby mode activates after approximately two minutes
Sony VPLFHZ131L Specs
| Display System |
3-Chip 1" LCD |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
White: 13,000 Lumens (ISO)
Color: 13,000 Lumens |
| HDR Support |
No |
| Inputs/Outputs |
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Video
1x HDMI Audio, Video Input
1x DVI-D Video Input
1x 5BNC Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x USB-A 2.0 Data
1x USB-B 2.0 Service Input
1x DE-9/DB-9 (RS-232) Control
1x RJ45 (Ethernet) LAN |
| Light Source |
Laser Phosphor |
Image Display
| Display System |
3-Chip 1" LCD |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 1920 x 1200 |
| Maximum Brightness |
White: 13,000 Lumens (ISO)
Color: 13,000 Lumens |
| Aspect Ratio |
Native: 16:10 |
| Scan |
Horizontal: 15 to 92kHz
Vertical: 48 to 92Hz |
| Includes Lens |
No |
Features
| HDR Support |
No |
| Ceiling Mountable |
Yes |
Input/Output Connectors
| Inputs/Outputs |
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Video
1x HDMI Audio, Video Input
1x DVI-D Video Input
1x 5BNC Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x USB-A 2.0 Data
1x USB-B 2.0 Service Input
1x DE-9/DB-9 (RS-232) Control
1x RJ45 (Ethernet) LAN |
| HDCP Support |
Yes, Version 1.4 |
| Number of Expansion Slots |
1 |
Hardware
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
General
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Medium Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 42 dB
Medium Brightness: 39 dB |
| Security |
Cable Lock Slot
Security Bar |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 4.4 to 10.8 A |
| Power Consumption |
Full Brightness: 1076 W
Standby Mode (Lamp Off): 0.5 W |
| Operating Conditions |
32 to 77°F / 0 to 45°C at 20 to 80% Humidity |
| Storage Conditions |
14 to 140°F / -10 to 60°C at 20 to 80% Humidity |
| Dimensions (W x H x D) |
21.4 x 8.1 x 22.2" / 544.0 x 205.0 x 564.0 mm (Without Protrusions) |
| Weight |
58 lb / 26.31 kg |
Packaging Info
| Package Weight |
73.5 lb |
| Box Dimensions (LxWxH) |
28.75 x 28.38 x 15.63" |
