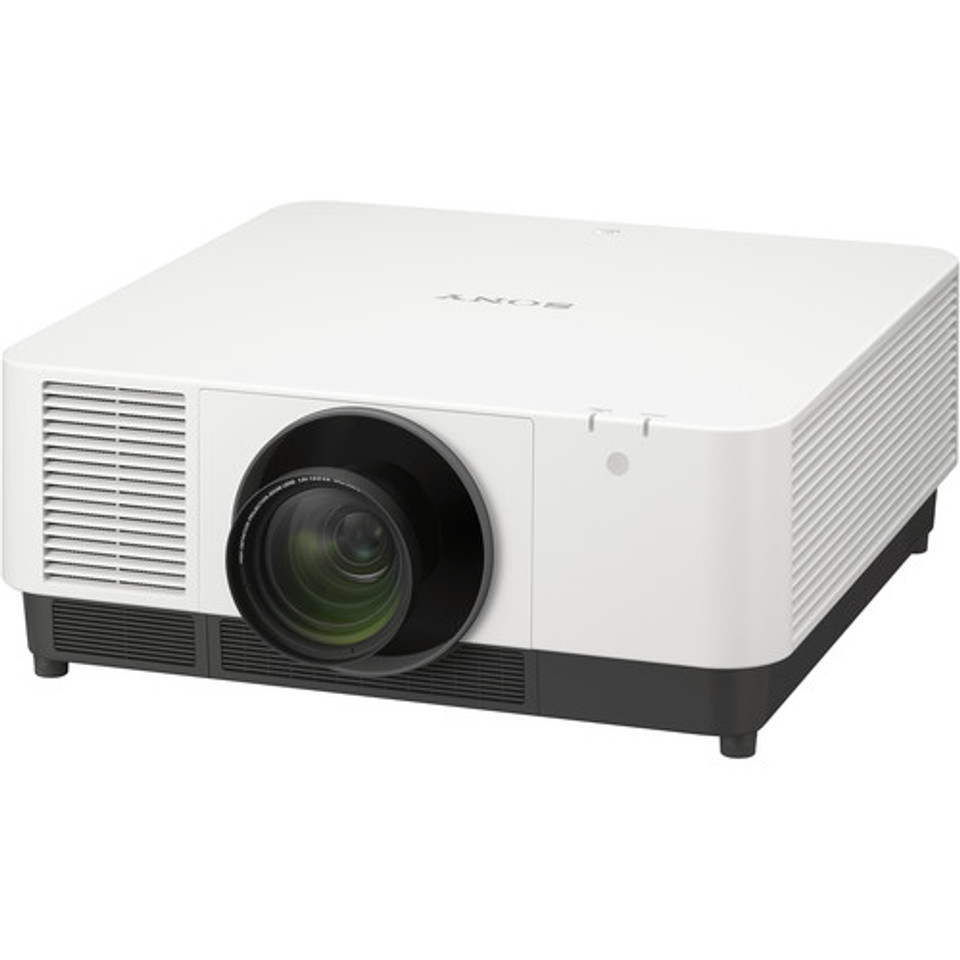

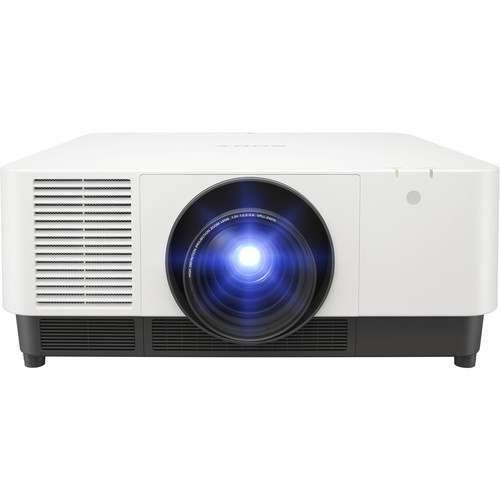

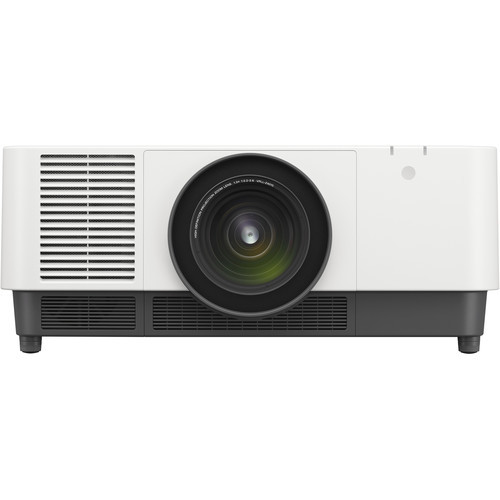

Sony VPL-FHZ120LW WUXGA 3LCD Projector

Free Shipping
(No reviews yet) Write a Review
In stock, ship same-day or until 48 Hrs
  • Sony VPL FHZ120L WUXGA 3LCD Projector
  • Sony VPL FHZ120L WUXGA 3LCD Projector
  • Sony VPL FHZ120L WUXGA 3LCD Projector
  • Sony VPL FHZ120L WUXGA 3LCD Projector
  • Sony VPL FHZ120L WUXGA 3LCD Projector
  • Sony VPL FHZ120L WUXGA 3LCD Projector
  • Sony VPL FHZ120L WUXGA 3LCD Projector


Sony VPL-FHZ120L Overview

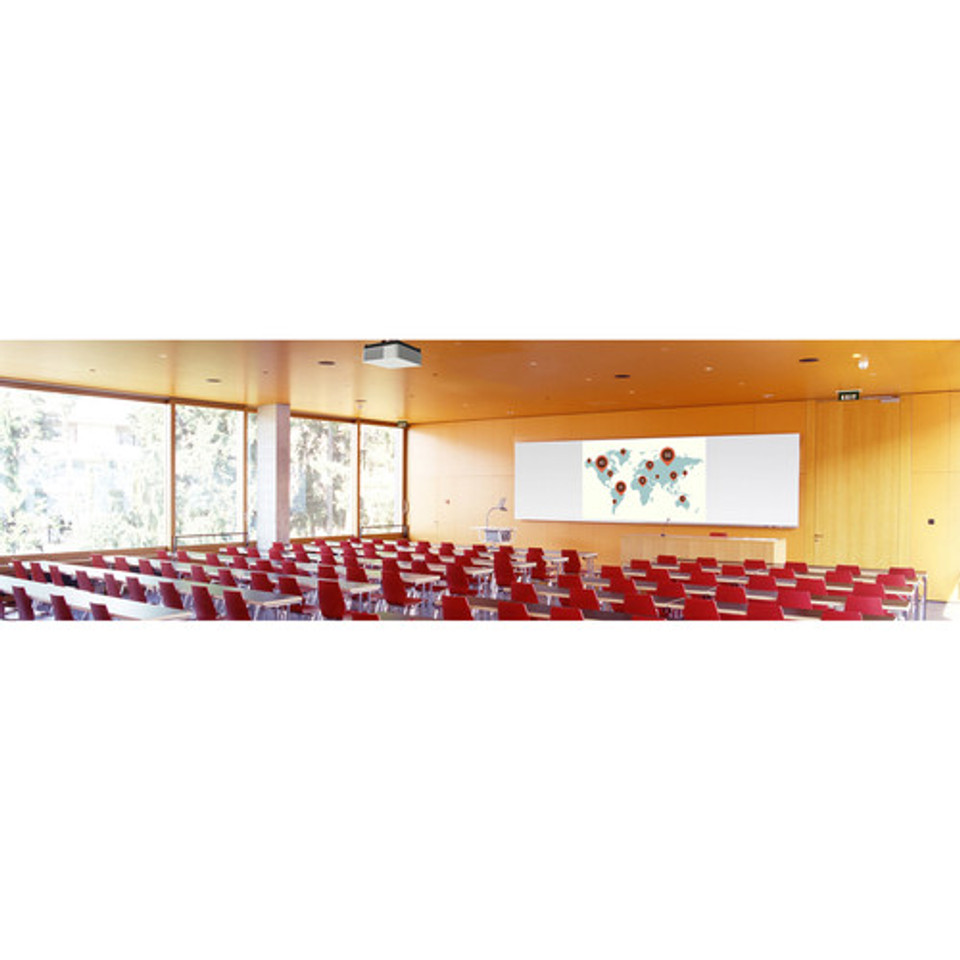

This white 12,000-Lumen WUXGA 3LCD Laser Projector from Sony is designed for use in large venues such as conference halls, lecture theaters, and galleries. Boasting a 12,000-lumen output, this projector is designed to overcome ambient light even in relatively bright rooms so that images remain sharp and crisp. The projector's 1920 x 1200 WUXGA native resolution enables you to display detailed video, pictures, and data. Various interchangeable lenses are available separately for a variety of throw ratio choices.

The VPL-FHZ120L features HDMI, DVI-D, and analog inputs, allowing for connectivity to a wide range of devices. The projector can be controlled via the included remote control, HDBaseT, or RS-232.

  • 1" 3LCD panel and optical compensator
  • Z-Phosphor laser light source
  • Supports sRGB 100% mode for precise color reproduction
  • Wide choice of separately available interchangeable lenses with lens shift adjustment for installation flexibility
  • Auto calibration for color consistency over extended periods
  • USB port
  • Quick start-up maximizes presentation time
  • Reality Creation technology analyzes the input signal down to the pixel level

    Key Features

    • Brightness of 12,000 Lumens
    • WUXGA (1920 x 1200) Native Resolution
    • 1" 3LCD Panel & Optical Compensator
    • Various Optional Interchangeable Lenses
    • Analog, HDMI & DVI-D Video Inputs
    • HDBaseT & RS-232 Controllable
    • Z-Phosphor Laser Light Source
    • Flexible Mounting Options
    • Quick Start-Up
    • Remote Control Included

Sony VPL-FHZ120L Specs

Image Display

Display System 3-Chip 1" LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Maximum: WUXGA - 1920 x 1200
Maximum Brightness 12,000 Lumens
Aspect Ratio Native: 16:10
Scan Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz


Keystone Correction Horizontal: ± 30°
Vertical: ± 30°
Ceiling Mountable Yes

Input/Output Connectors

Inputs/Outputs 1 x Component (5BNC) Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x DVI-D Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDBaseT (RJ45) LAN Input
1 x Ethernet (RJ45) LAN Input/Output
1 x VGA (DE-15/DB-15) Video Output
1 x USB 2.0 (USB Type-A) Data Input/Output
1 x RS-232 (DE-9/DB-9) Control Input/Output
Number of Expansion Slots 1


Light Source Laser Phosphor
Fan Noise Full Brightness: 42 dB
Medium Brightness: 39 dB
Security Cable Lock Slot
Security Bar
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 4.4 to 10.8 A
Power Consumption Full Brightness: 1076 W
Standby Mode (Lamp Off): 0.5 W
Storage Humidity 20 to 80%
Dimensions (W x H x D) 21.4 x 8.1 x 22.2" / 544.0 x 205.0 x 564.0 mm without Protrusions
Weight 59.52 lb / 27 kg

Packaging Info

Package Weight 73.7 lb
Box Dimensions (LxWxH) 29 x 29 x 15.5"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
