Product Overview

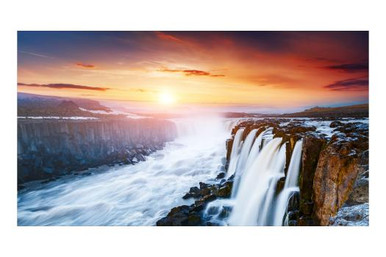

Samsung VH55C-R 55″ Full HD Ultra-Narrow Bezel Smart Signage Video Wall Display.
The Samsung VH55C-R 55" Smart Signage Razar-Narrow Bezel Video Wall Display offers an impressive viewing experience with its ultra-thin bezels, creating seamless and captivating video walls. This high-performance display features vivid image quality, smart signage capabilities, and versatile connectivity options, making it perfect for dynamic advertising, corporate displays, and public installations. Enhance your visual communication with the sleek and reliable Samsung VH55C-R, designed for stunning clarity and maximum impact.
Specifications
Technical details
DisplayPort version 1.2
Wall mountable Yes
Panel type IPS
Orientation Landscape/Portrait
DisplayPorts in 1
RS-232 output ports 1
HDCP Yes
Display
Pixel frequency 78 MHz
Display diagonal 55 "
Display resolution 1920 x 1080 pixels
Display brightness 700 cd/m²
HD type Full HD
Contrast ratio (typical) 100:1
Contrast ratio (dynamic) 40000:1
Viewing angle, horizontal 178.00 °
Viewing angle, vertical 178.00 °
Pixel pitch 0.63 x 0.63 mm
Display diagonal (metric) 138.000 cm
Display technology LCD
Colour gamut 72.0 %
Aspect ratio 16:9
Ports & interfaces
IR input ports quantity 1
HDMI ports quantity 2
HDMI version 2.0
DVI-D ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB port Yes
Audio output Yes
Audio input Yes
RS-232 input ports 1
USB ports quantity 1
DisplayPorts quantity 1
Displayport ports 1
Total number of outputs 4
HDMI ports 2
DVI ports 1
Weight & dimensions
Width 1211.00 mm
Depth 69.90 mm
Height 681.70 mm
Weight 16800.000 g
Package width 1414 mm
Package depth 257 mm
Package height 844 mm
Package weight 25100 g
Power
Power consumption (typical) 250.00 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (sleep) 0.50 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90 %
Network
Ethernet LAN Yes
Ergonomics
VESA mounting Yes
Panel mounting interface 600 x 400 mm
Other features
DVI port Yes
Video out Yes
Placement supported Indoor
Design
Product colour Black
Bezel width (side) 0.44 cm
Bezel width (top) 0.44 cm
Bezel width (bottom) 0.44 cm
Performance
Operating hours (hours/days) 24/7
Vertical scan range 47 - 63 Hz
Horizontal scan range 57.3 - 70 kHz
HDMI input ports quantity 2
Haze rate 28 %
Energy efficiency scale A to G
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 155 kWh
Tiled bezel width 0.44 cm
Sustainability compliance Yes
Sustainability certificates
CB,Federal Communications Commission (FCC)
Response time 0.01 s
HDCP version 2.2
