Description
Samsung QM32R Overview

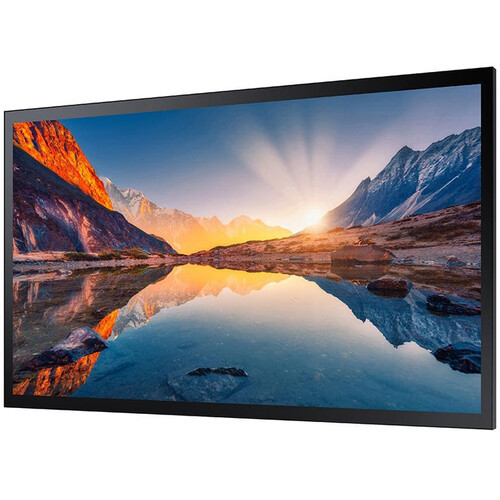

With a built-in media player and capacitive touchscreen, the Samsung QMR-T 32" Class Full HD Commercial Smart Touchscreen LED Display is designed to support a variety of content types with enhanced interactivity to suit your business needs. It features DisplayPort and two HDMI inputs to display your digital HD content, plus two USB ports for multimedia playback. The QMR-T also has two built-in speakers for presenting visual content with audio.
Key Features
- Full HD (1920 x 1080) Native Resolution
- 8 ms Response Time
- Capacitive Touchscreen Technology
- Built-In Wi-Fi Connectivity
- DisplayPort 1.2 & 2 x HDMI 2.0 Inputs
- HDMI Output
- Tizen 4.0 Operating System
- Dual Built-In Speakers
- IP5X Rating
- Digital Signage Capable
All-in-One Interactive Digital Signage Solution
The QMR-T combines an embedded media player with MagicINFO—Samsung's leading-edge digital signage CMS platform—with the powerful Tizen OS, multi-touch interactivity, and a Full HD display into an all-in-one solution. Eliminate the need for an external player and enable a wide variety of apps.
Multi-Point Capacitive Touch
A responsive capacitive touch functionality makes for an engaging and intuitive experience.
Full HD for Sharp, Captivating Messages
1920 x 1080 resolution delivers sharp, Full HD images that capture attention.
IP5X for Lasting Durability
Samsung's QMR-T series display has received the IP5X rating standard, helping to ensure efficient and reliable performance, even in dusty environments, to protect the display from repeated customer interactions. In addition, a conformal coating on the display provides longevity even in public spaces, and as a result, helps to save on the overall cost of operation.
Convenient Control with a Centralized IR Receiver
Control your content easily with an intelligently designed IR receiver. Instead of a single point of reception, QMR-T series displays receive IR signals across their entire panels, making remote content control much easier and more reliable.
A Complete Digital Signage CMS Platform to Power Your Business
MagicINFO, Samsung's digital signage CMS platform, makes content management easier, more flexible, and more robust. Easily create content with the included templates. Use data capture tools to inform content creation and automated, targeted distribution. Manage it all from a single source.
Additional Features
- Built-in MagicInfo S6, SSSP 6.0, and capacitive touchscreen
- Temperature sensor
- Pivot display
- Clock battery (168 hours clock keeping)
- Video wall daisy chain (HDCP 2.2: up to four displays, HDCP 1.4: up to seven walls)
- Auto Source Switching & Recovery software
- LFD Home UI software
- Button lock software
- Hot Key Option
- Plug & play (initial setting) software
- Optional WMN4070SE wall mount kit and STN-L3240E stand available separately
Samsung QM32R Specs
Display
| Screen Size (Diagonal) | 32" |
| Resolution | 1920 x 1080 |
| Panel Type | LCD |
| Brightness | 300 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |

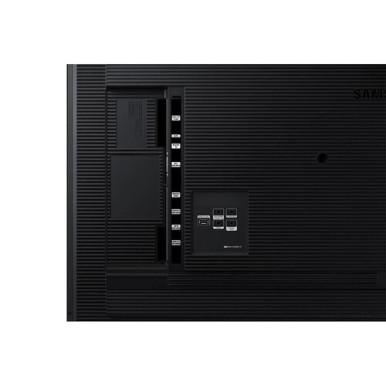

| Input Ports | 2 x HDMI 2.0 Audio, Video 1 x DisplayPort 1.2 Audio, Video |
| Output Ports | 1 x HDMI 2.0 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB 2.0 Type-A |
| Control | RS-232C via 1/8" / 3.5 mm Input/Output RJ45 |
| Wi-Fi | Built-in |
| Bluetooth | Yes |
General
| HDCP Support | Yes, Version 2.2 |
Surface
| Touchscreen Technology | Capacitive |
Audio
| Built-In Speakers | Yes, 2 x 5 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4.0 |
| CPU | 1.7 GHz Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Typical: 45.0 W Maximum: 72.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | ENERGY STAR, as per Manufacturer |
Physical
| Wall Mounting | 200 x 200 mm |
| IP Rating | IP5X |
| Bezel Thickness | 24.5 mm (Bottom/Top) 21.5 mm (Right/Left) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 29.3 x 17.5 x 1.9" / 744.4 x 444.6 x 48.2 mm |
| Weight | 18.3 lb / 8.3 kg |
Packaging Info
| Package Weight | 24.05 lb |
| Box Dimensions (LxWxH) | 34.3 x 22.4 x 5.1" |
