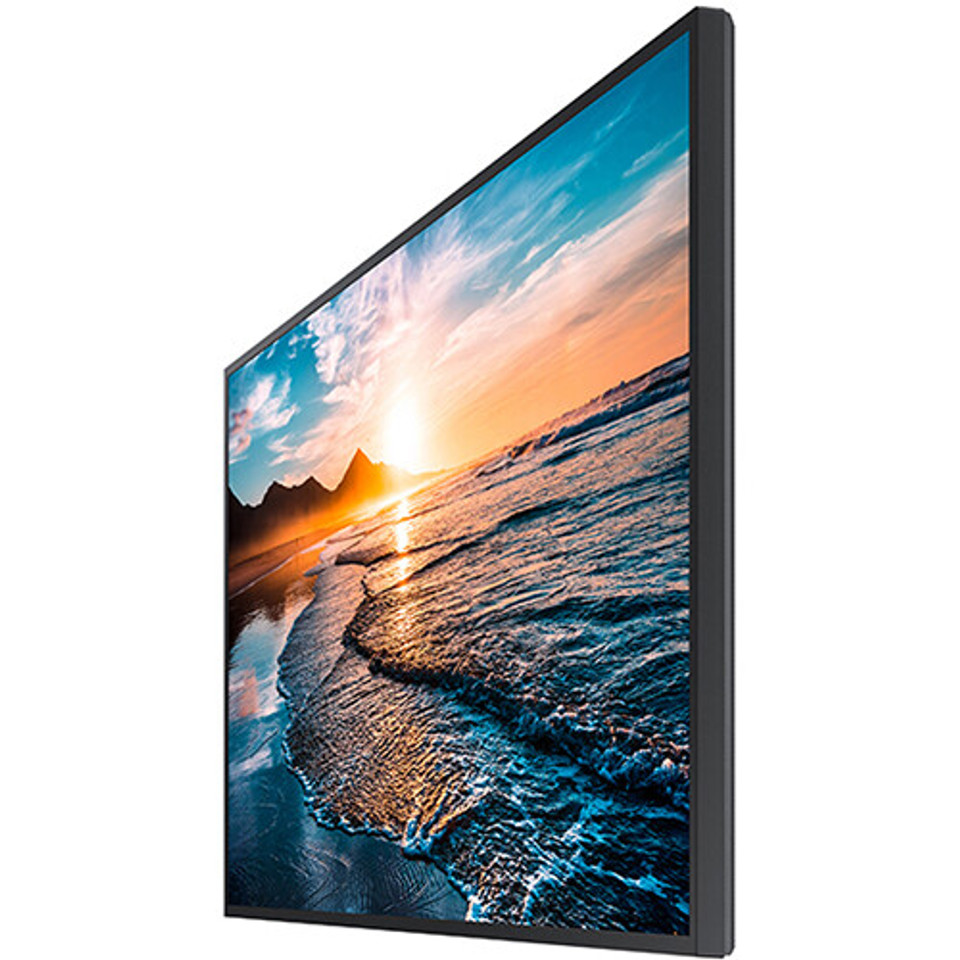

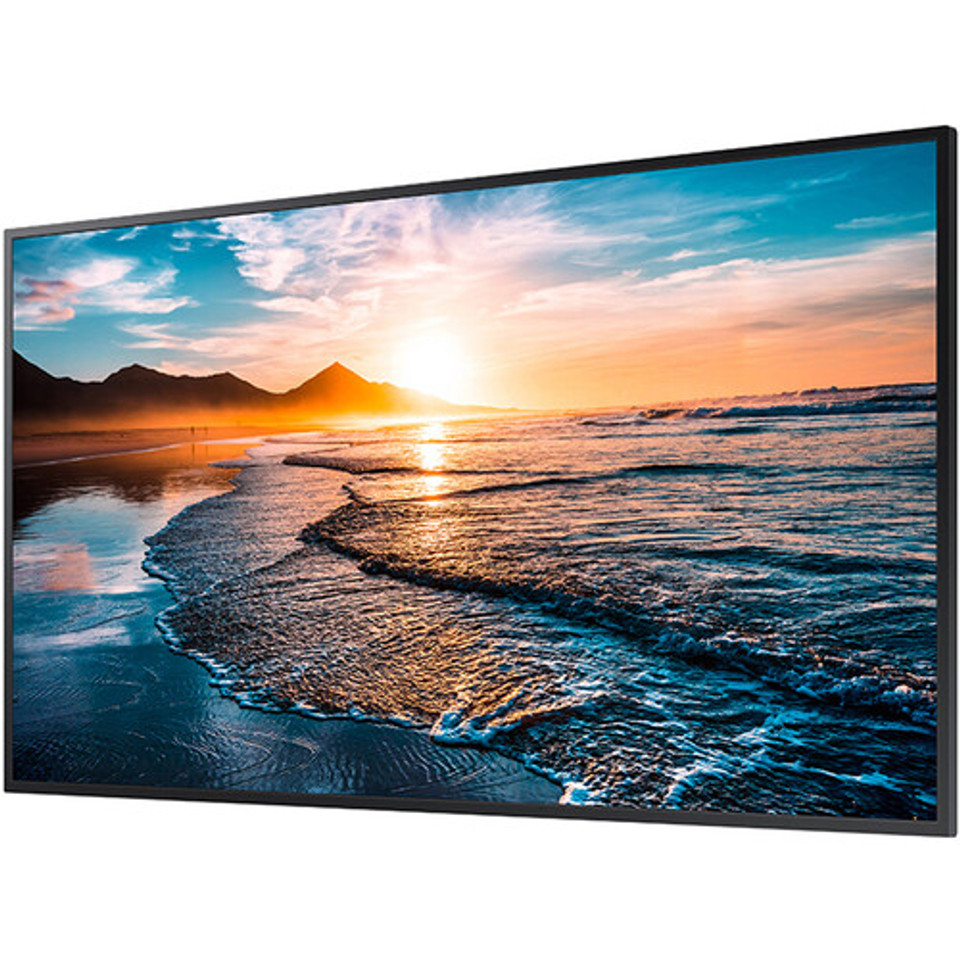

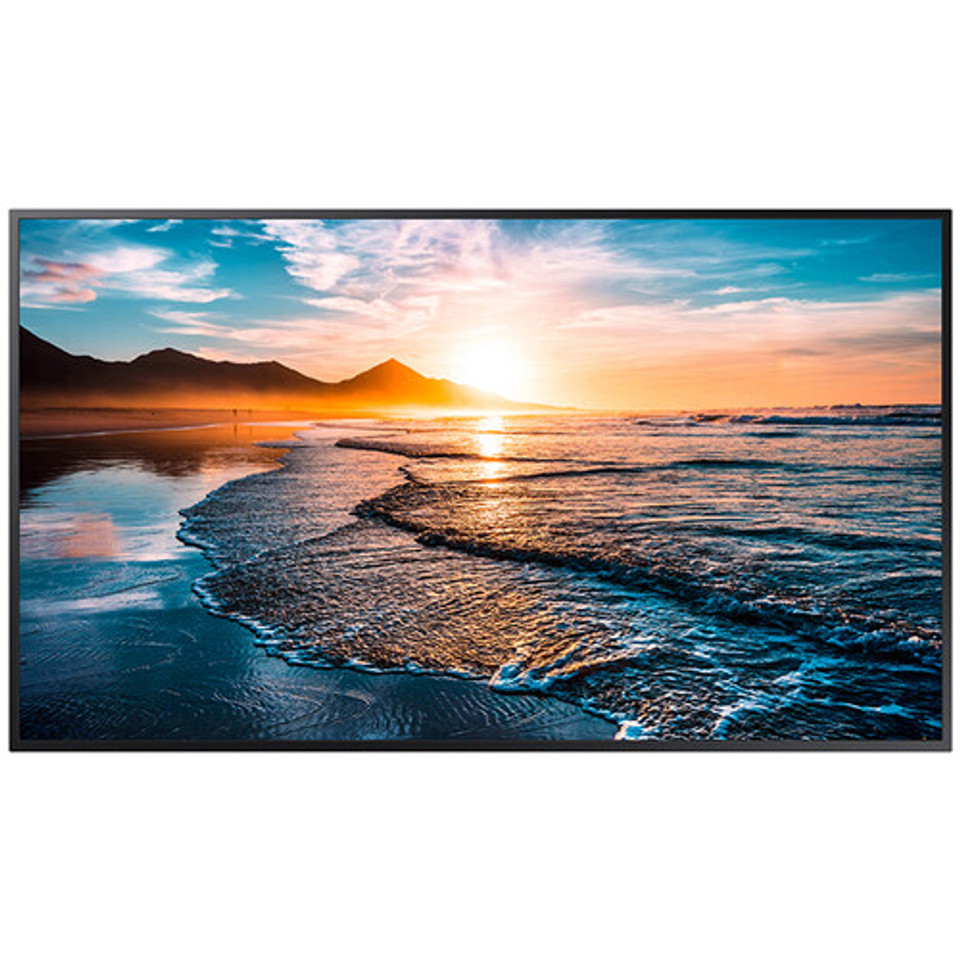

Samsung QH50R Series 50" Class 4K UHD Commercial Smart LED Display

Samsung QH50R Overview

Samsung’s QHR Series provides 4K UHD non-glare picture quality with up to a billion colors for crystal clear, lifelike color and exceptional detail. With an elegant, slim design and a clean cable management solution, these displays are easy to install into any type of environment. Plus, Samsung’s SMART Signage Platform 6.0 and embedded MagicINFO Player S6 media player allow for easy content management and playback, without the need for an external set-back box or PC.

Key Features

• 4K UHD (3840 x 2160) Native Resolution
• 700 cd/m² Brightness
• 24/7 Operation
• Samsung Smart Signage Platform

Specifications:

Panel

• Diagonal Size50″
• TypeEdge LED BLU
• Resolution3840*2160 (4K UHD)
• Pixel Pitch(mm)0.285 x 0.285
• Active Display Area(mm)1095.84(H) x 616.41(V)
• Brightness(Typ.)700 nit
• Contrast Ratio4000:1
• Viewing Angle(H/V)178/178
• Response Time(G-to-G)8ms(Typ.)
• Display Colors16.7M(True Display) 1.07B(Ditherd 10bit)
• Color Gamut92% (DCI-P3, CIE 1976)
• Operation Hour24/7
• Haze28%

Display

• Dynamic C/RMEGA
• H-Scanning Frequency30 ~ 81kHZ
• V-Scanning Frequency48 ~ 75HZ
• Maximum Pixel Frequency594MHz

Sound

• Speaker TypeBuilt in Speaker(10W + 10W)

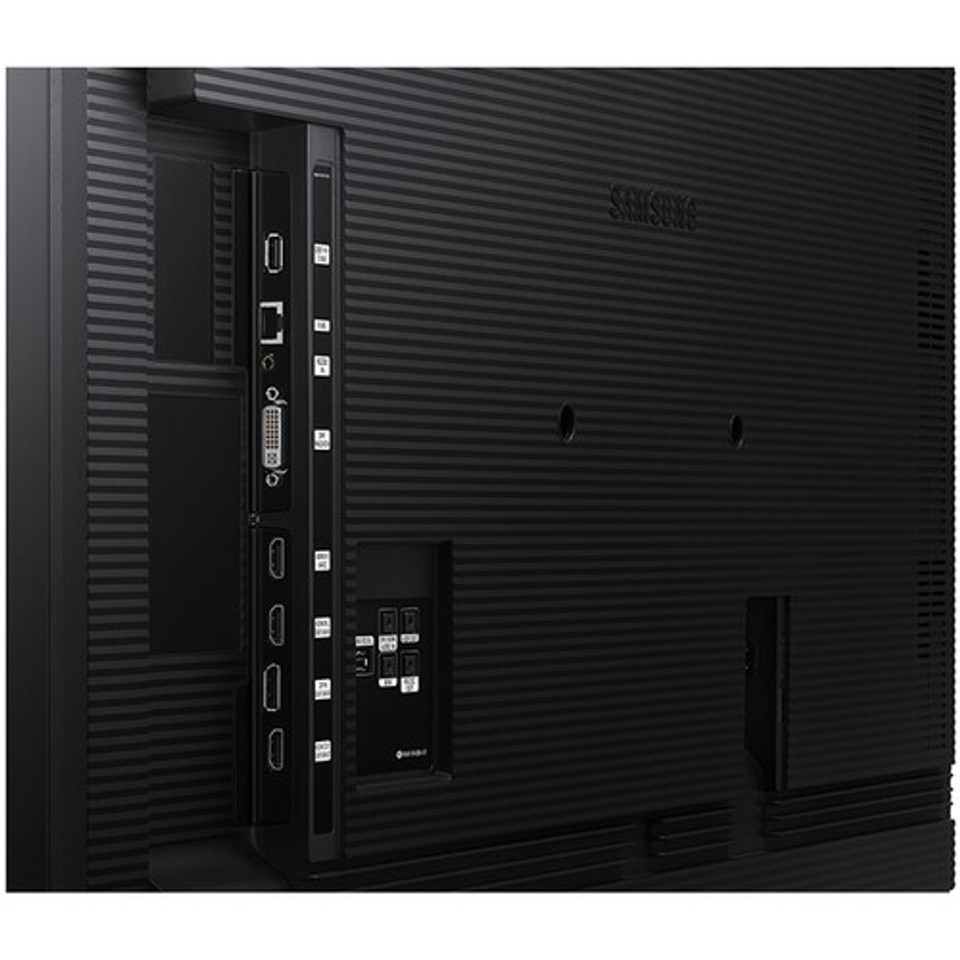

Connectivity

Input

• RGBDVI-D, Display Port 1.2 (1)
• VideoHDMI 2.0 (2)
• HDCPHDCP2.2
• AudioStereo mini Jack, DVI, HDMI
• USBUSB 2.0 x 2

Output

• RGBHDMI 2.0 (Loop-out)
• AudioStereo mini Jack

• External ControlRS232C(in/out) thru stereo jack, RJ45
• External SensorIR

Power

• TypeInternal
• Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

• Max[W/h]TBD
• Typical[W/h]TBD
• Rating[W/h]TBD
• BTU(Max)TBD
• Sleep mode0.5

Mechanical Specification

Dimension (mm)

• Set1121.4 x 643.9 x 46.3
• PackageTBD

Weight (kg)

• SetTBD
• PackageTBD

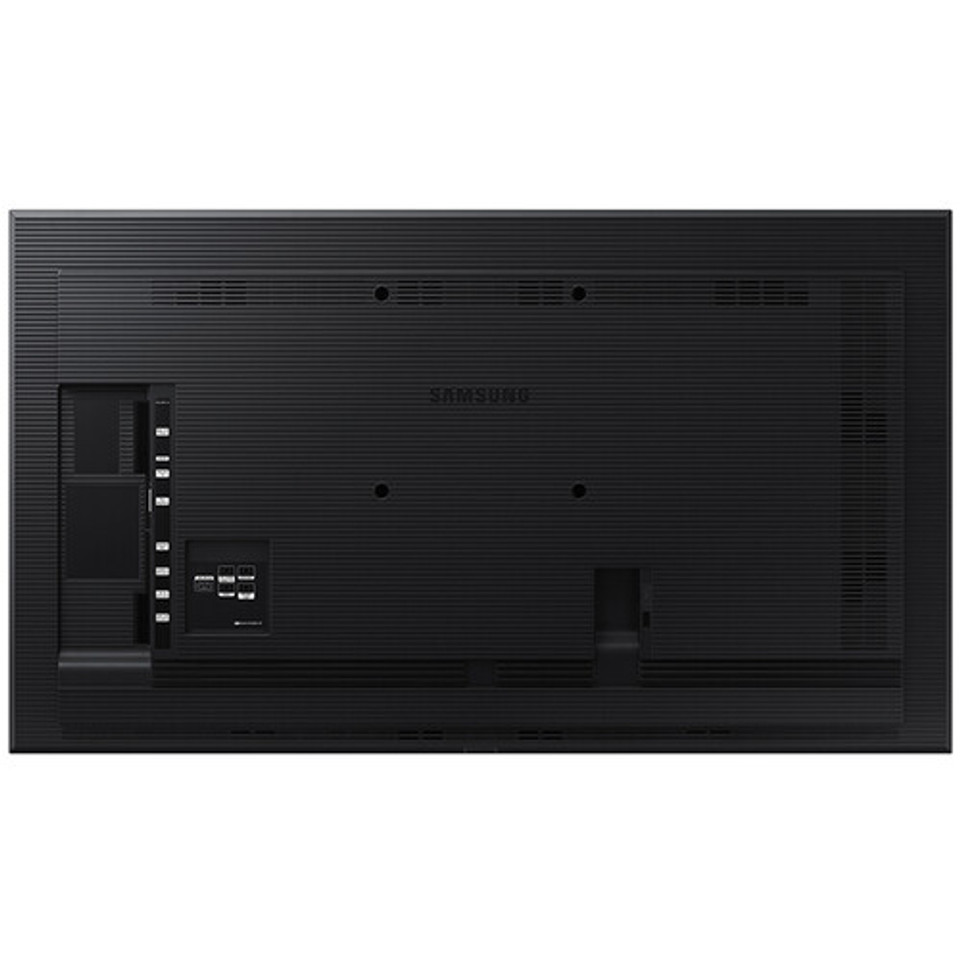

• VESA Mount (mm)200 X 200
• Stand TypeFoot Stand (Optional)
• Bezel Width (mm)9.2mm(U/L/R), 11.2mm(B)

Operation

• Operating Temperature 0 ~ 40
• Humidity 10 % ~ 80 %

Feature

• Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
• OrientationN/A
• Remote ControlN/A

• Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x Rating, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting), 802.1x(WPA2 Enterprise) Certified

Internal Player

• ProcessorCortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed1.7GHz
• Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

• GraphicsGraphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.)
• Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
• Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
• IO PortsUSB 2.0

• Operating SystemTizen 4.0 (VDLinux)

Certification

• Safety60950-1
• EMCClass B
• Security802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Accessory

• IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

• StandTBD
• Mount TBD
• SpecialtyTBD
