Stunning performance for the most secure locations.
QBC-N series Non-WiFi and Non-Bluetooth Crystal UHD Signage Introducing the QBC series, the slimmest display in the Samsung’s UHD signage offerings. This products deliver an unparalleled slim design that fits into any business, while delivering the visual quality to make a big impact. The sleek form factor is easily installed to fit any room design and delivers stunning
visual performance. Dynamic Crystal Color and Quantum Processor Lite 4K delivering consistent, lifelike colors to any content. With no embedded WiFi, Bluetooth, Smart TV Features and equipped with Samsung KNOX Security, it’s ideal for government, financial, and educational institutions, or anywhere network security is a priority.
Key features
Impactful and immersive 4K UHD
Smooth, ultra-high resolution video and picture quality offer a crisp, clear picture that’s four times the detail of Full HD. It brings extra clarity to displays, especially when viewed up close.

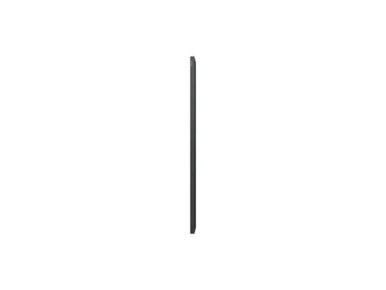

Ultra Slim Depth
The unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD Signage series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment.

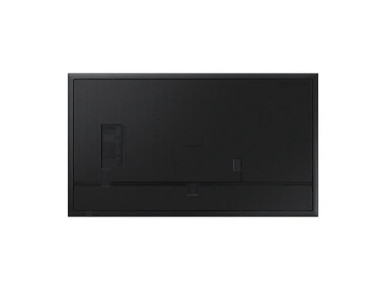

Even Bezels and Centered VESA Holes
The bezels are even on all four sides of the display for a consistent look, while the central VESA mounting holes ensure secure mounting and easy adjustability to portrait mode.
Dynamic Crystal Color
One billion shades of color let you see every subtlety with lifelike color variations. Images are clear and consistent thanks to Samsung’s industry leading video processing and upscaling technology
Safe and Secure
With no WiFi or Bluetooth, your operations are more secure, keeping key information in front of the right people.
Energy Star / EPEAT Bronze
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.
TAA Compliant
Manufactured in Mexico to comply with the federal Trade Agreements Act (TAA). Samsung monitors offer high performance and reliability, while complying with the federal Trade Agreements Act (19 U.S.C. and 2501-2581).
Specifications
Display Panel
Diagonal Size:- 85" ,84.5
Resolution 3,840 x 2,160 (16:9)
Brightness (Typ.) 350 nit
Orientation Landscape/Portrait
Haze 2%
Contrast Ratio (Typ.) 4,000:1
Type VA
Active Display Area 1,872.0 (H) x 1053.01 (V)
Pixel Pitch (mm) 0.487 x 0.487
Color Gamut NTSC 72%
Operation Hour 16/7
Connectivity / Sound
Input
Video HDMI HDMI 2.0 (3)
Audio N/A
USB USB 2.0 x 2
Tuner N/A
Output
Video N/A
Audio Stereo mini Jack
USB N/A
WiFi / BT No/No
External Control RJ45 RS232C (In/Out), RJ45
Speaker 10W 2ch
Mechanical Spec
Dimension (mm / in.)
Set :- 1,904.3 x 1,085.3 x 28.5 mm / 75 x42.7 x 1.1 in.
Package:- 2,077 x 1,222 x 210 mm / 81.8 x 48.1 x 8.3 in.
Weight (kg / lbs.)
Set 41.9 kg / 92.4 lbs.
Package 53.9 kg / 118.8 lbs.
VESA Mount 200 x 200 400 x 300 400 x 400 400 x 400
VESA Mount Screw 12~14mm
Bezel Width (mm) 13.9 (Even)
Features
Key:- UHD Signage with Built-in MagicInfoS10, SSSP 10.0
Operating System:- Tizen 7.0
Processor:- CA53 1.3GHz Quad-Core
Storage (FDM):- 8GB (3GB available)
