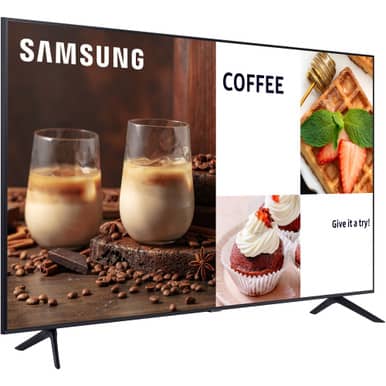

Samsung’s Pro TV BEC-H Series is the ideal display solution for small businesses, allowing users to communicate with customers without outdated physical signs or posters. Enrich the customer experience by showing regular TV programming alongside promotional content, all on one screen. From menu boards to advertisements, Samsung’s Pro TV BEC-H Series provides flexible functionality suited to a wide range of retail stores and businesses looking to do more with their TV.

Specifications

Panel
Size (Inch) 43, 50, 55, 65, 70, 75, 85
Type 50Hz E-LED BLU
Resolution 3,840 x 2,160
Brightness(Typ.) 250nit
Contrast Ratio(Typ.) 4,700:1
Response Time(G-to-G) 8ms
Color Gamut 72%
Operation Hour 16/7 (Korea & Brazil: 8/7)
Haze 2%
Screen Curvature N/A, Flat

Connectivity
Input HDMI x 3, HDCP 1.4 / 2.2, USB x 1, RF 1 Terrestrial / 1 Cable / 0 Satellite (EU, CIS: 1/1/1)
Output Audio: Optical
External Control RJ45
Wireless WiFi 5, Bluetooth 5.2 Supported

Design Bezel Type 3 Bezel-less
Color (Front / Stand) BLACK / BLACK (US: TITAN GRAY / TITAN GRAY)

Power
Type Internal
Power Supply NA: 110-120V 50/60Hz, MX: 110-127V 50/60Hz, EU/KR/SWA: 220-240V 50/60Hz,
XM/XD/XS/XV/ZL/ZD/CI: AC100-240V 50/60Hz
Power
Consumption
Max EU: 125 (43 Inch) , 140 (50 Inch), 145 (55 Inch), 195 (65 Inch), TBD (70 Inch), 250 (75 Inch), 295 (85 Inch)
Energy Saving Mode (W) N/A
Stand-by (W) 0.5

Mechanical
Dimension (mm)
Set without Stand 963.9 x 558.9 x 59.6 (43 Inch), 1116.8 x 644.2 x 59.9 (50 Inch), 1230.5 x 707.2 x 59.9 (55 Inch), 1449.4 x 830.3 x 59.9 (65 Inch),
1556.2 x 895.4 x 61.6 (70 Inch), 1673.2 x 958.2 x 59.9 (75 Inch), 1895.9 x 1083.9 x 60.9 (85 Inch)
Set with Stand 963.9 x 627.8 x 192.5 (43 Inch), 1116.8 x 719.1 x 250.2 (50 Inch), 1230.5 x 783.3 x 250.2 (55 Inch), 1449.4 x 906.6 x 282.1 (65 Inch),
1556.2 x 976.2 x 339.9 (70 Inch), 1673.2 x 1047.9 x 341.1 (75 Inch), 1895.9 x 1186.7 x 392.2 (85 Inch)
Package 1081 x 670 x 143 (43 Inch), 1264 x 780 x 150 (50 Inch), 1386 x 843 x 158 (55 Inch), 1606 x 963 x 184 (65 Inch),
1746 x 1035 x 190 (70 Inch), 1840 x 1118 x 198 (75 Inch), 2090 x 1247 x 260 (85 Inch)

Weight (kg)
Set without Stand 7.7 (43 Inch), 10.9 (50 Inch), 13.9 (55 Inch), 20.6 (65 Inch), 24.8 (70 Inch), 30.4 (75 Inch), 40.2 (85 Inch)
Set with Stand 7.9 (43 Inch), 11.1 (50 Inch), 14.2 (55 Inch), 20.9 (65 Inch), 25.3 (70 Inch), 30.8 (75 Inch), 41.3 (85 Inch)
Package 11.4 (43 Inch), 15.5 (50 Inch), 19.5 (55 Inch), 28.6 (65 Inch), 34 (70 Inch), 41.9 (75 Inch), 56.5 (85 Inch)

Bezel Width w/ BM (U/D/L/R) (mm) 10.2/12.7/10.2/10.2 (43 Inch), 9.3/12.5/9.3/9.3 (50 Inch), 9.3/11.5/9.3/9.3 (55, 65 Inch),
TBD (70 Inch), 10.3/13.7/10.3/10.3 (75 Inch), 11.6/13.9/11.6/11.6 (85 Inch)
Black Matrix Size (U/D/L/R) (mm) 5.9/7.7/5.9/5.9 (43 Inch), 5/6.5/5/5 (50, 55 Inch), 5/6.5/5/5 (65 Inch), TBD (70 Inch), 6/7.7/6/6 (75 Inch), 6/8/6/6 (85 Inch)

VESA
Screw Size M8
Screw Depth 20-22
VESA Spec 200*200 (43, 50, 55 Inch), 400*300 (65, 70 Inch), 400*400 (75 Inch), 600*400 (85 Inch)

Certification Safety 60065, 62368-1
EMC Class B

Accessory
Included Remote Control, Batteries, User Manual, Power Cable
Optional Stand Yes
Media Player USB M/player

Video Picture Engine Crystal processor 4K
HDR10+ Support

Audio
Dolby Decoder Yes
Object Tracking Sound OST Lite
Q-Symphony Yes
Sound Output (RMS) 20W
Speaker Type 2CH (10W+10W)
Bluetooth Audio Yes
Dual Audio Support (Bluetooth) Yes
Buds Auto Switch Yes
