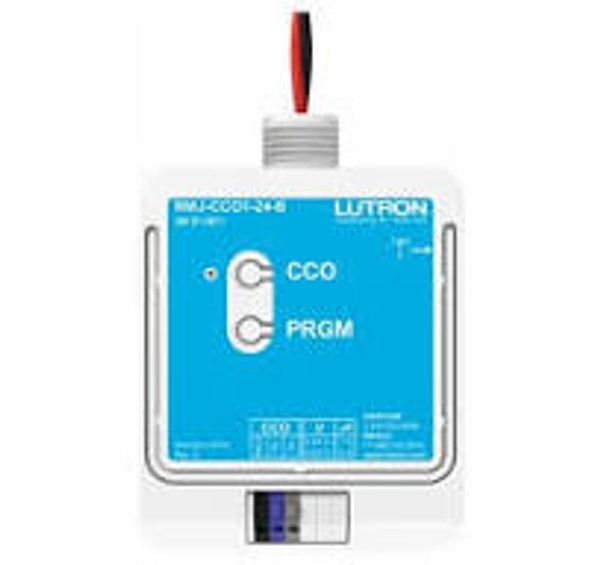

RMJ-CCO1-24-B Lutron PowPak Energi TriPak CCO Module

Integrate control of your third-party devices with Lutron PowPak RMJ-CC01-24-B. This output module provides a single dry contact closure output with a maximum load of 1 amp at 24 VDC or 0.5 amp at 24 VAC. Using Lutron Pico remotes, Radio Powr Savr occupancy/daylight sensors, the module can easily control building management systems such as HVAC and VAV. This Lutron PowPak contact closure module comes with screw tabs for surface mounting and can also be mounted in a 1/2-inch NPT size knockout in a junction box.

• Voltage Rating: 24V AC/DC

• Current Rating: 35/45 mA

• Mounting Type: Surface mount or junction box mount

• Temperature Rating: 32°F to 131°F (0°C to 55°C)

• Humidity Range: 0% to 90% non-condensing

• Dimensions: 3.94 in H x 2.82 in W x 1.25 in D

• Features:

  • Single dry contact closure output (NO/NC)

  • Maintained or momentary output type

  • Receives wireless inputs from up to nine Pico® controls, six Radio Powr Savr™ occupancy/vacancy sensors, and one Radio Powr Savr™ daylight sensor

  • Utilizes Lutron® Clear Connect® RF technology

  • Screw tabs provided for surface mounting or mounts to a U.S. style junction box through a standard
