Stereo Headphone Amplifier-stainless Decora panel with user level control

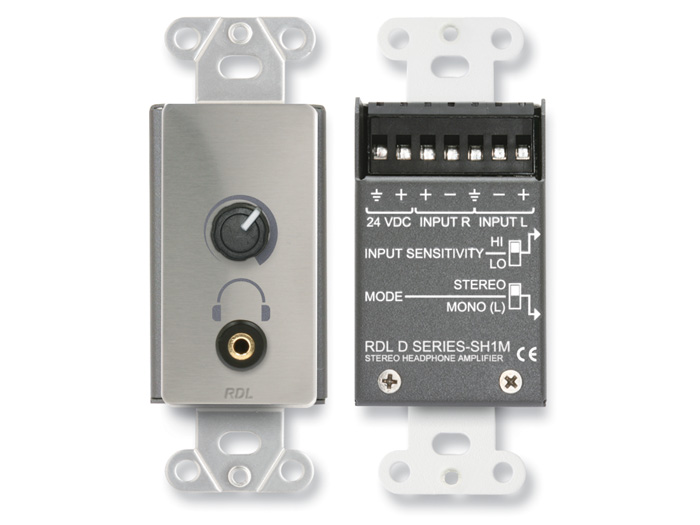

The RDL DS-SH1M is a stereo headphone amplifier presented on a stainless Decora panel, combining local user level adjustment with flexible input configuration. Its integral long-life VCA stereo level control is operated from the front panel, while switch-selectable sensitivity and operating mode accommodate different source levels and either stereo or mono-left program material. Two 10 kΩ bridging inputs accept balanced or unbalanced signals, and the amplifier drives high- or low-impedance headsets through a mini-jack output.

Ideal Use Cases

The DS-SH1M is suited to audio installations that require an accessible headphone listening point with independent user control. It can serve systems using balanced or unbalanced source wiring and supports both high- and low-impedance headsets. Switch-selectable mono-left or stereo operation makes it useful when the available program is not consistently stereo. Its two selectable sensitivity ranges also allow integration with nominal +4 dBu sources or lower-level -15 dBV sources without requiring separate versions of the amplifier.

Why Choose This Model

This model combines its amplifier, user-adjustable level control, input selection features, and mini-jack output in a stainless Decora-panel format. The two inputs are 10 kΩ balanced or unbalanced bridging connections. Low input sensitivity is intended for a nominal +4 dBu input and accepts a maximum input level of +21 dBu. High input sensitivity is intended for a nominal -15 dBV input and accepts up to +3 dBu. This selectable configuration provides a defined way to match the amplifier to the connected source while retaining front-panel control for the listener.

Installation and Integration

Connect the left and right program signals to the two 10 kΩ bridging inputs using balanced or unbalanced wiring as required. Select low or high input sensitivity according to the nominal source level, then choose stereo operation or mono-left operation for the available program. Power requires a ground-referenced 24 Vdc supply capable of 50 mA. Recommended supplies are the PS-24AS for the USA and the PS-24AX for international use; the power supply is not included. Once connected, the front-panel control provides user adjustment, with the available maximum gain determined by the selected sensitivity mode.

Performance Highlights

The DS-SH1M has a specified frequency response of 30 Hz to 20 kHz within ±2 dB. Maximum gain is 18.5 dB in high input sensitivity mode, while low input sensitivity mode provides unity maximum gain. Its maximum output signal is 50 mW into 100 Ω. THD+N is specified at less than 0.5% at 1 kHz, and noise is less than -70 dB below normal operating level. Common-mode rejection is greater than 60 dB from 50 to 120 Hz. Crosstalk is specified below the noise floor across 20 Hz to 20 kHz. Together, these ratings define the amplifier’s operating range, output capability, and separation performance without relying on unspecified processing or enhancement features.

What Makes It Different

The defining feature is the combination of an integral long-life VCA stereo level control and user-accessible front-panel adjustment. The DS-SH1M also brings balanced or unbalanced input compatibility, two input-sensitivity settings, and selectable mono-left or stereo operation into the same model. This flexibility distinguishes it from a fixed-sensitivity amplifier or a unit limited to one wiring format. Its mini-jack output and support for both high- and low-impedance headsets further broaden the headset options that can be connected.

Final Assessment

The RDL DS-SH1M is a focused choice for installations requiring a stainless Decora-panel headphone amplifier with direct user level control. Its selectable sensitivity supports nominal +4 dBu and -15 dBV sources, while balanced or unbalanced inputs simplify connection to different audio systems. With mono-left and stereo operating modes, defined gain settings, and a 50 mW into 100 Ω maximum output, it provides clearly specified functionality for an integrated headphone listening point.
