Gated Speech Preamplifier-Mic to Line

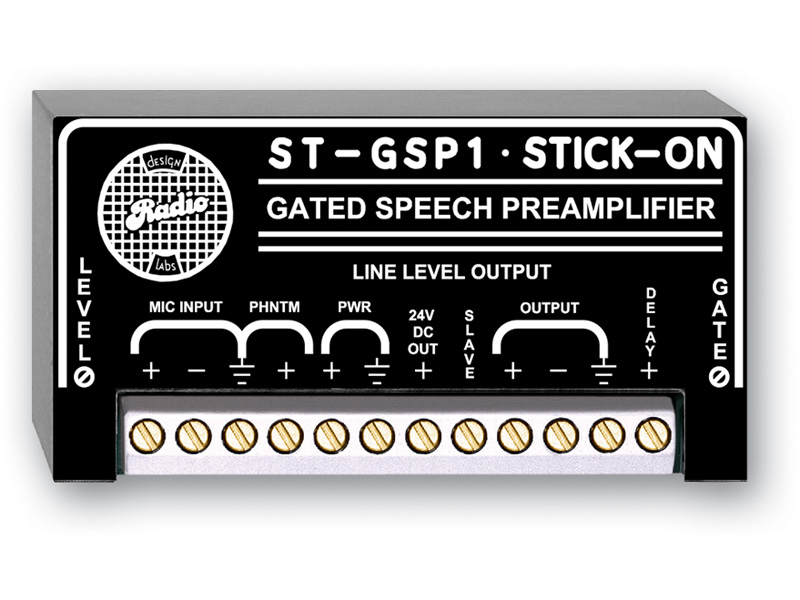

The RDL ST-GSP1 is a gated mic-to-line preamplifier centered on spoken-word signal handling. Speech-activated gating determines when the audio path is active, while adjustable gain and threshold provide the core setup controls. The design also includes fast, silent audio switching, integral single-ended noise reduction, balanced or unbalanced input and output capability, phantom power provision, and an open-collector logic output. This combination makes the unit a focused interface for converting a microphone signal to line level while adding automatic speech control.

Ideal Use Cases

The ST-GSP1 is intended for signal paths in which a microphone source must feed a line-level destination and speech should control the gate. Adjustable gain allows the preamplifier stage to be configured for the connected source, while the adjustable threshold defines the gate’s activation point. Support for balanced or unbalanced operation on both the input and output makes the model applicable to either connection arrangement.

Phantom power provision accommodates system designs that require that facility. The open-collector logic output also makes a logic connection available for integration with compatible equipment. Together, these functions suit installations requiring microphone amplification, automatic gating, noise reduction, and a separate logic output from one model.

Why Choose This Model

The ST-GSP1 combines several related audio functions instead of limiting its role to microphone-to-line amplification. Speech-activated gating provides automatic control based on speech, and the listed fast, silent audio switching defines how the audio path changes state. Integral single-ended noise reduction adds a dedicated noise-reduction function within the unit.

Its adjustable gain and threshold give the installer control over two important parts of setup: amplification and gate activation. Balanced or unbalanced input and output support provides connection flexibility without restricting the product to one signal format. Phantom power provision and the open-collector logic output broaden the available integration options while remaining part of the same focused preamplifier design.

Installation and Integration

Installation begins with matching the ST-GSP1 to the source and destination equipment. The supplied product data states that both the input and output support balanced or unbalanced operation. Gain and threshold can then be adjusted for the intended signal path and speech-gating requirement. Because no numeric gain range or threshold range is provided, exact adjustment limits should be confirmed in the product documentation.

Phantom power is listed as a provision, but its voltage, current capacity, and implementation details are not included in the supplied data. The open-collector logic output is also identified by type without electrical ratings. Those details, along with terminal assignments and wiring requirements, should be verified using the available ST-GSP1 specification sheet before integration.

A power supply is not included. The recommended supply is the PS-24AS for the USA or the PS-24AX for international use. Select the applicable recommended model for the installation region.

Performance Highlights

The performance profile of the ST-GSP1 is described through its operating functions. Speech-activated gating is paired with an adjustable threshold, giving the gating behavior a configurable activation point. Fast, silent audio switching is specifically listed, making transition behavior a defined feature of the model. Adjustable gain provides control at the preamplifier stage, while integral single-ended noise reduction adds built-in signal processing.

The supplied data does not state numeric frequency response, signal-to-noise ratio, gain range, switching time, or gate attack and release values. The model should therefore be evaluated according to its documented functional capabilities and the full specification sheet rather than assumed measurements.

What Makes It Different

The defining characteristic of the ST-GSP1 is the combination of microphone-to-line amplification and speech-controlled gating with additional integration features. Its listed capabilities cover the preamplifier stage, adjustable gate threshold, fast and silent switching, single-ended noise reduction, balanced or unbalanced signal connections, phantom power provision, and open-collector logic output.

These functions are closely aligned around one task: managing a speech microphone signal as it enters a line-level system. The result is a purpose-specific model with both audio-path controls and a logic-output facility, without relying on unlisted modes or unsupported performance claims.

Final Assessment

The RDL ST-GSP1 is a precise choice when a system requires a gated microphone-to-line preamplifier with speech activation. Its adjustable gain and threshold, fast silent switching, integral noise reduction, balanced or unbalanced connectivity, phantom power provision, and open-collector output form a clearly defined feature set. For final specification and wiring decisions, use the ST-GSP1 documentation and the appropriate separately available recommended power supply.
