Amplitude Component Monitor

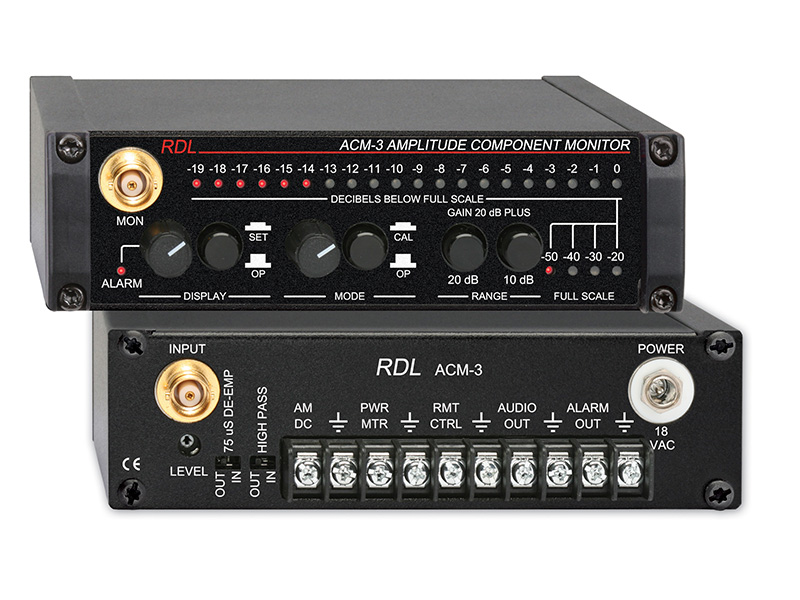

The RDL ACM-3 Amplitude Component Monitor is designed to observe the amplitude component associated with an FM transmitter signal. Its front-panel measurement display, oscilloscope connection, recovered-AM audio output, and synchronous-AM DC output provide several monitoring paths in a compact 1.7 x 5.8 x 4.1-inch unit. The ACM-3 supports performance objectives that include maintaining clarity, maximizing loudness and stereo separation, reducing subcarrier crosstalk, controlling multipath artifacts, and keeping signal coverage consistent.

Ideal Use Cases

The ACM-3 is suited to FM transmitter installations where amplitude behavior must be monitored as part of signal-performance work. It is relevant when the operating goals include evaluating subcarrier crosstalk, maintaining consistent signal coverage, or retaining positive control of multipath artifacts. The recovered-AM audio output provides an audio-domain monitoring point, while the DC output supplies a level representing significant synchronous AM. These complementary outputs support both direct observation and connection to external monitoring equipment.

The model is also appropriate for installations that need front-panel measurements and oscilloscope access in the same device. Its defined operating range and multiple outputs provide concrete reference points for assessing the amplitude component while working to maximize performance from an FM transmitter.

Why Choose This Model

Measurement coverage is divided between two accessible monitoring points. The front-panel display covers 20 dB to -69 dB, while the front-panel scope jack covers -10 dB to -90 dB. The BNC oscilloscope jack supplies 5 V p-p for a full-scale display. The maximum input signal is 30 V, specified as the combined filtered carrier plus AM.

Recovered-AM audio is delivered at +4 dBu with a 100 Ω source impedance, and its total harmonic distortion is specified below 0.03%. In addition, the ACM-3 provides a DC level representing significant synchronous AM. This combination offers front-panel, oscilloscope, audio, and DC observation paths for evaluating the signal.

Installation and Integration

The ACM-3 uses BNC connectivity for input/output and for its oscilloscope jack. Power is supplied at 18 Vac, and an external supply is included for North American installations. The specified ambient operating range is 0° C to 50° C.

The unit measures 1.7 inches high, 5.8 inches wide, and 4.1 inches deep, equivalent to 4.1 x 15.0 x 10.4 cm. RDL identifies RU Series mounting options for the ACM-3, allowing the monitor to be incorporated into a compatible structured equipment layout. Its packaged dimensions are 6 x 6 x 2.625 inches, with a listed shipping weight of 1.395 pounds.

Performance Highlights

• Front-panel measurement range of 20 dB to -69 dB.
• Front-panel scope-jack measurement range of -10 dB to -90 dB.
• Maximum 30 V input signal, combining filtered carrier and AM.
• BNC oscilloscope jack with 5 V p-p output for full-scale display.
• Recovered-AM audio output at +4 dBu from a 100 Ω source impedance.
• Recovered-AM total harmonic distortion below 0.03%.
• Residual noise specified at less than 95 dB below 100% amplitude modulation.
• DC output representing significant synchronous AM.

These specifications define the monitor’s signal limits, measurement ranges, and external output levels. They also support the stated objectives of maintaining signal clarity, maximizing loudness and stereo separation, reducing subcarrier crosstalk, and improving control over multipath artifacts.

What Makes It Different

The ACM-3 combines multiple ways to examine the amplitude component within one dedicated unit. The front-panel display provides an immediate reading, while the scope jack expands access to a -10 dB to -90 dB range. The recovered-AM audio output and synchronous-AM DC output provide two additional signal representations for connected monitoring equipment.

Its feature set is specifically aligned with FM transmitter performance rather than general-purpose audio measurement. Defined BNC connections, calibrated output levels, a documented maximum input, and support for RU Series mounting options make its intended integration requirements clear.

Final Assessment

The RDL ACM-3 is a focused amplitude component monitor for FM transmission systems that require front-panel measurement, oscilloscope access, recovered-AM audio, and synchronous-AM DC output. Its broad documented measurement ranges, low recovered-AM distortion, compact dimensions, and RU Series mounting compatibility support organized integration into an FM monitoring setup. For applications centered on clarity, loudness, stereo separation, subcarrier crosstalk, coverage consistency, and multipath control, the ACM-3 provides a clearly specified set of monitoring functions.
