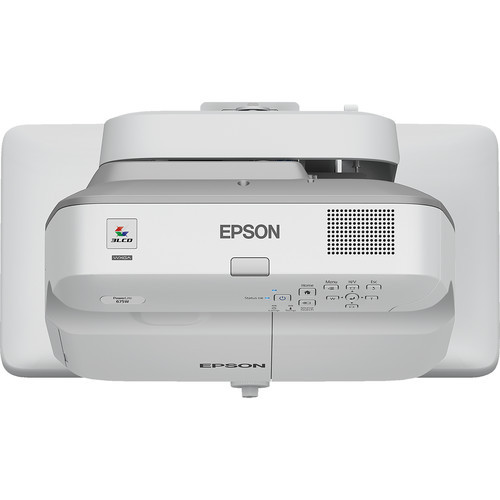

Epson PowerLite PL-675W 3200-Lumen WXGA Ultra-Short Throw 3LCD Projector (V11H745520)

Epson 675W Overview

njoy virtually shadowless images with the Epson PowerLite 675W 3200-Lumen WXGA Ultra-Short Throw 3LCD Projector. It features an ultra-short 0.28 to 0.37:1 throw ratio, which will allow it to be mounted only 11" from your screen or whiteboard and project an image as large as 100", reducing the risk of possible shadows. Its 3200 lumens of brightness, combined with its 14,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

The PowerLite 675W features USB, RCA composite, and three HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The USB input allows you to project directly from a Windows or Mac computer. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control.

Key Features

• Brightness of 3200 Lumens
• WXGA (1280 x 800) Native Resolution
• Ultra-Short 0.28 to 0.37:1 Throw Ratio
• USB, RCA Composite, 3 x HDMI Inputs
• VGA Output for Loop-Through
• Analog Audio Input and Output
• Built-In 16W Speaker
• Ethernet and RS-232 Controllable
• IR Remote Included

High Color and White Brightness Levels

Both color and white brightness of 3200 lumens.

Ultra-Short Throw Projector

Can be mounted only 11" from the board or screen for a projected image as large as 100" diagonal, with virtually no shadow interference.

Split Screen

Simultaneously project two images (video or still) side-by-side from two different sources.

Built-In Speaker

The PowerLite 675W features a microphone input and built-in 16W speaker to amplify the audio of the presentation. You can also pass the signal through to external speakers, even in standby mode.

USB Plug & Play

Instantly project images from a Windows or Mac computer using a USB connection.

3LCD Color Accuracy

3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.

Simultaneously Display and Control Multiple Device Screens

Wirelessly share content from up to four devices including Chromebooks, iOS, Android, Mac, and Windows devices, with Moderator software.

Manage Your Display and Sent Announcements Remotely

Designed for easy network connectivity with included software.

Versatile Connectivity

With three HDMI inputs, the PowerLite 675W supports multiple HD A/V devices; one HDMI input supports MHL for connecting compatible mobile devices.

Epson 675W Specs

Image Display

Display System	3-Chip Polysilicon TFT LCD
Native Chip Resolution	1280 x 800 (WXGA)
Supported Resolutions	Maximum: UXGA - 1600 x 1200
Maximum Brightness	3200 Lumens
Aspect Ratio	16:10
Contrast Ratio	14000:1
Color Depth	10-Bit (1.07 Billion Colors)

Lens

Focus	Manual
Lens	f/1.6 (f = 3.7 mm)
Throw Distance	13.701 - 23.504" / 34.8 - 59.7 cm
Throw Ratio	0.28 to 0.37:1
Projection Size	60 - 100" / 152.40 - 254.00 cm

Features

Keystone Correction	Manual-Vertical: ± 3° Manual-Horizontal: ± 3°
Digital Zoom	1.35x
Ceiling Mountable	None
Rear Screen Projection	Yes
Built-In Speaker	Yes (Mono)
Speaker Power	16W

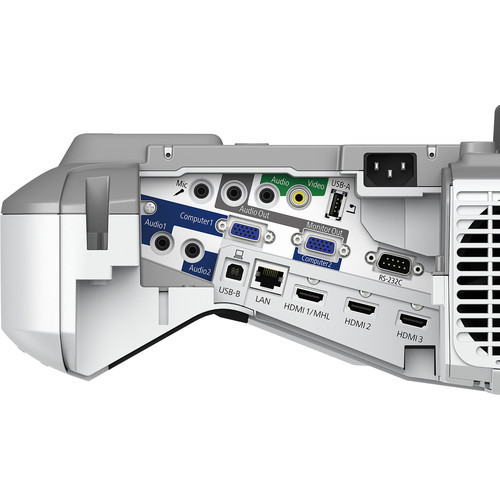

Input/Output Connectors

Inputs/Outputs

2 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 1 x USB 2.0 (USB Type-B) Data Input 1 x Composite (RCA) Video Input 3 x 1/8" / 3.5 mm Mini Microphone Input 1 x 1/8" / 3.5 mm Mini Control Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-A) Power Output 1 x Ethernet (RJ45) LAN Input

Wireless LAN / Wi-Fi

None

General

Light Source	Lamp (1 x UHE)
Lamp Power	215 W
Expected Lamp Life	Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours
Fan Noise	Medium Brightness: 35 dB Low Brightness: 28 dB
Security	Cable Lock Slot Padlock Password Protection
AC Input Power	120 to 240 VAC, 50 / 60 Hz
Power Consumption	Medium Brightness: 333 W Low Brightness: 239 W Standby Mode (Lamp Off): 2.2 W Standby Mode (Lamp Off): 0.23 W
Dimensions (W x H x D)	14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm Including feet 14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm Excluding feet
Weight	12.6 lb / 5.7 kg

Packaging Info

Package Weight	19 lb
Box Dimensions (LxWxH)	21.4 x 19.3 x 10.3"
