86" 3840 x 2160 UHD,400nits, 18/7,OPS slot, Android SoC Display

Ideal Use Cases

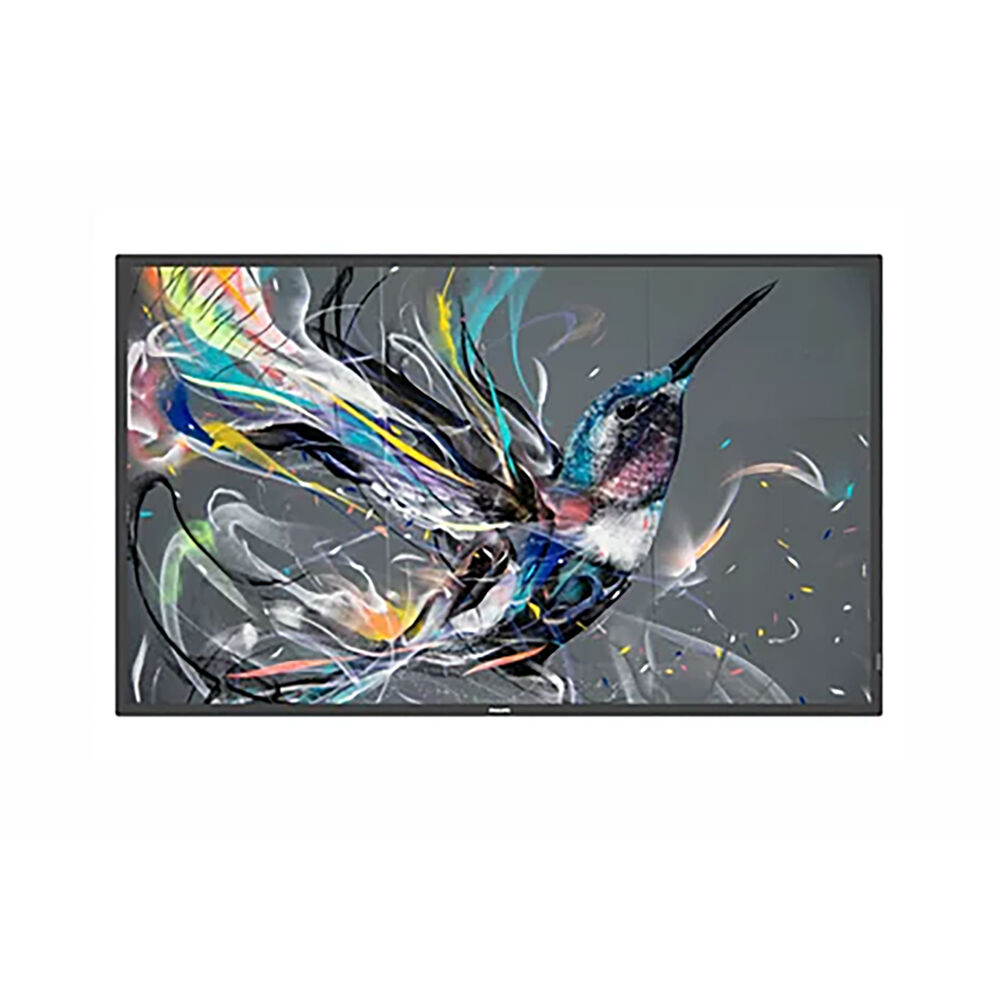

The Philips Q-Line 86BDL3650Q/00 is a large-format digital signage display designed for 18/7 operation. Its 85.6-inch IPS panel presents 3840 x 2160 UHD content at 60 Hz with 400 cd/m² brightness. Horizontal and vertical viewing angles of 178 degrees support visibility across a broad viewing area, while landscape and portrait placement accommodate both horizontal presentations and vertically arranged messaging. The display can operate individually or as part of a tiled matrix measuring up to 3 x 3.

A 25% haze specification defines the screen finish, and the 15.5 mm bezel supports a streamlined presentation. Built-in 2 x 10 W RMS speakers also allow compatible content to include sound without requiring separate speakers.

Why Choose This Model

Android 10 is integrated into the display, supported by a Quad-Core Cortex A55 CPU, G52 MC1 GPU, and a listed memory configuration of 16 GB with 3 GB DDR. This built-in platform provides an Android-powered foundation for signage content, while Wave-ready remote management helps provide centralized control. An OPS slot and microSD connection offer additional integration options.

USB playback supports H.264, H.263, H.265, MPEG1/2, MPEG4, VP8, and VP9 video; AAC, HEAAC, and MPEG audio; and BMP, JPEG, and PNG images. This broad file compatibility gives content teams several supported formats for locally supplied media.

Installation and Integration

The display measures 1929.0 mm wide by 1100.0 mm high, with a listed depth of 69.5 mm or 91.8 mm. Imperial dimensions are 75.94 x 43.31 x 2.74 or 3.61 inches. Product weight is 49.06 kg, or 108.16 lb. The wall-mount specification is 600 x 400 mm with M8 hardware, and both landscape and portrait orientations are supported.

Video connections include HDMI 2.0, DVI-I, USB 2.0, and USB 3.0. A 3.5 mm audio input and 3.5 mm audio output are provided. External control connections include RS232C through a 2.5 mm jack, IR through a 3.5 mm jack, and RJ45. RS232 and RJ45 network control are supported, along with RS232 and IR signal loop-through. Smart Insert is included as an installation feature.

Included accessories comprise an IR sensor cable, RS232 daisy-chain cable, RS232 cable, HDMI cable, AC power cord, AC switch cover, cable clip, USB cover, Philips logo, quick-start guide, and remote control with AAA batteries.

Performance Highlights

The IPS panel has a native 16:9 aspect ratio, typical contrast ratio of 1200:1, and dynamic contrast ratio of 500,000:1. It displays 1.07 billion colours and has a typical response time of 8 ms. Pixel pitch is 0.4935 x 0.4935 mm. Picture-enhancement functions include progressive scan, dynamic contrast enhancement, and 3/2 and 2/2 motion pull-down.

Supported video signals include 1080i, 720p, 1080p, and 2160p at the listed 50 Hz and 60 Hz rates. The optimum resolution is 3840 x 2160 at 60 Hz. Specified MTBF is 50,000 hours. Typical power consumption is 304 W, standby consumption is less than 0.5 W, and mains input is 100–240 V at 50/60 Hz.

What Makes It Different

This model combines a UHD IPS panel, Android 10 system, OPS expansion, local USB playback, and wired remote-control capabilities within one 86-inch signage product. Smart Power provides an energy-saving function, while hidden, lockable keyboard controls and a lockable remote-control signal help manage access to display settings. The product carries Energy Label Class G.

The on-screen display supports Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, and Arabic. Regulatory approvals include CE, CB, FCC Class A, VCCI, RoHS, and UL. The specified operating range is 0 to 40 °C, 20% to 80% relative humidity, and altitudes from 0 to 3000 m.

Final Assessment

The Philips 86BDL3650Q/00 brings together an 85.6-inch 4K UHD image, 400 cd/m² brightness, Android 10, OPS connectivity, built-in audio, and 18/7 operation. Its landscape and portrait mounting support, extensive wired connections, 3 x 3 tiled-matrix capability, and Wave-ready remote management make it a well-equipped option for large-format digital signage installations. It is supplied with a three-year warranty.
