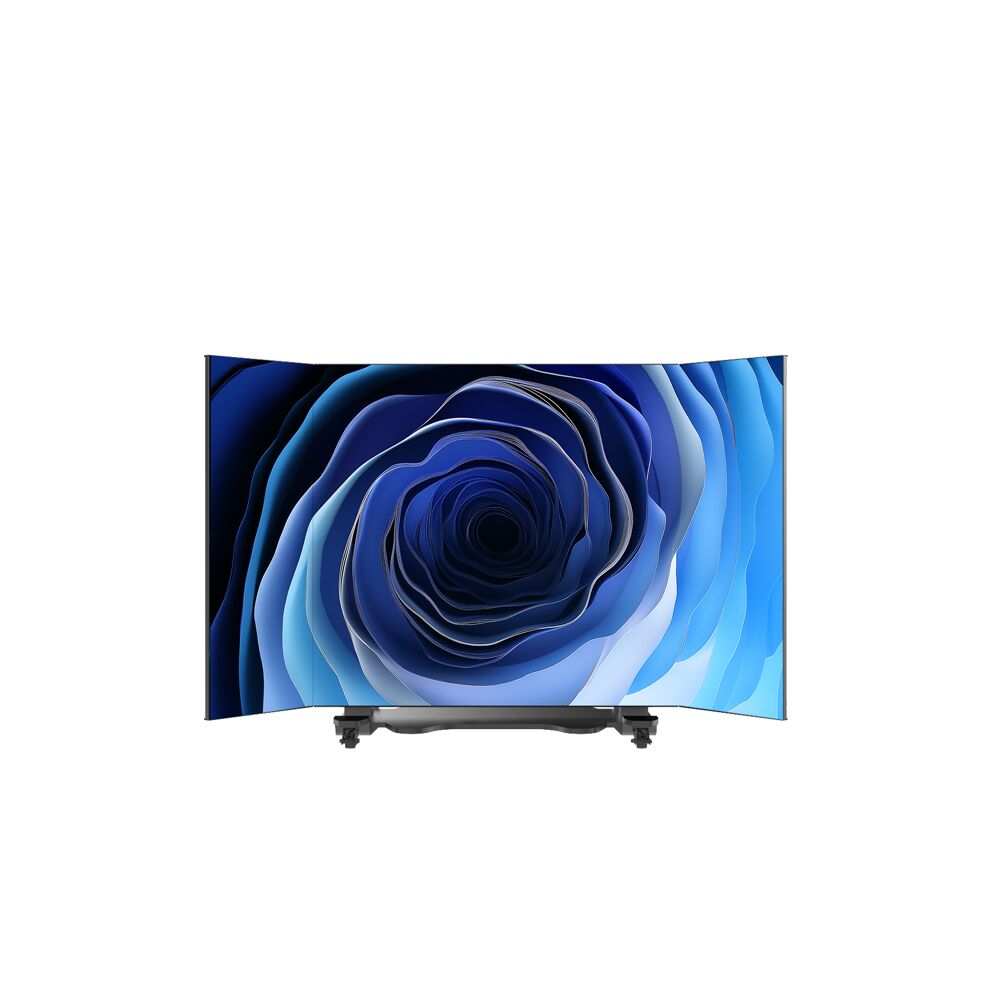

135" Foldable All-in-One dvLED with Motorized cart

The 135-inch Foldable All-in-One dvLED with Motorized Cart is a large-format Full HD display built around a 3000 x 1687.5 mm screen. Its COB LED system uses a 1.5625 mm pixel pitch and 1R1G1B Flip Chip pixel construction. More than a fixed display, the unit combines electric lifting with a screen that folds for movement through doorways. When fully extended, the assembly measures H2475.5 x W3010 x D850 mm; folded, it narrows to H1875.5 x W1820 x D850 mm. Anti-pinch protection and an emergency stop are integrated into the mechanized design.

Ideal Use Cases

This model is suited to installations where a 135-inch display needs to serve more than one position or be stored in a more compact configuration. The 16:9 screen can present Full HD video, browser-based material, media files, PDFs, and interactive content. Included software features cover file management, Chromium, Browser, Media Player, Settings, Teamviewer, PDF Player, and Interact. Electric lifting allows the screen height to be adjusted, while the folding structure makes the 3010 mm extended width more manageable by reducing the folded width to 1820 mm.

Why Choose This Model

The display combines a 1920 x 1080 native resolution with a 5000:1 typical contrast ratio, 3840 Hz refresh rate, and 50/60 Hz frame frequency. Horizontal and vertical viewing angles are both specified at 160 degrees, supporting visibility across a broad viewing area. Brightness uniformity is rated at 95 percent or greater, and the adjustable color-temperature range is 6500 ± 500 K. The COB LED system has a stated lifetime of 100,000 hours. These display specifications are paired with the practical benefits of a motorized cart, electric lifting, and a foldable screen.

Installation and Integration

Video sources can be connected through DVI-I, DisplayPort 1.4, HDMI 2.0, or USB 3.0. A DisplayPort 1.4 output is also provided. Audio connections include a 3.5 mm mini-jack input and a 3.5 mm headphone or line-output jack. External control connections consist of an RS232C 2.5 mm jack, RJ45, and a 3.5 mm IR jack. Wireless functionality is provided by the CRD22 Wi-Fi and Bluetooth USB module, including two antennas. The supplied accessories are a remote control with AAA batteries, a quick-start guide, and a speaker set. A flight case is listed as the packing option. Mains power is AC 100 to 240, with typical power consumption of 600 W and maximum consumption specified at 1,650 W.

Performance Highlights

The 1.5625 mm pixel pitch is formed from modules measuring 150 x 168.75 mm, each with a resolution of 96 x 108 pixels. COB LED technology and 1R1G1B Flip Chip pixel constitution form the display platform, while the 3840 Hz refresh specification supports the screen’s image performance. The display operates within a stated temperature range of 20 to 45 °C and an operating humidity range of 10 to 80 percent RH. Storage specifications are 20 to 50 °C and 10 to 85 percent RH. Regulatory approvals include CE, FCC SDOC, Part 15 Class A, CB 62368, and RoHS.

What Makes It Different

The defining feature is the integration of a 135-inch dvLED screen with its own mechanized cart system. Electric lifting changes the screen position, while screen folding reduces its transport width without separating the display into listed component sections. The folded and fully extended dimensions make the difference measurable: the unit changes from W3010 mm when extended to W1820 mm when folded. Anti-pinch functionality and an emergency-stop control accompany these powered movements. The complete assembly has a net weight of 278 kg and carries a three-year warranty.

Final Assessment

Model 135HDL6115IA/00 combines Full HD COB dvLED imaging, broad wired and wireless connectivity, included content features, and an integrated motorized structure. Its 160-degree horizontal and vertical viewing angles, 5000:1 contrast ratio, 3840 Hz refresh rate, and 95 percent or greater brightness uniformity establish its core visual specifications. Electric lifting, screen folding, anti-pinch protection, and an emergency stop distinguish it from a conventional fixed-format display while addressing movement, positioning, and storage requirements.
