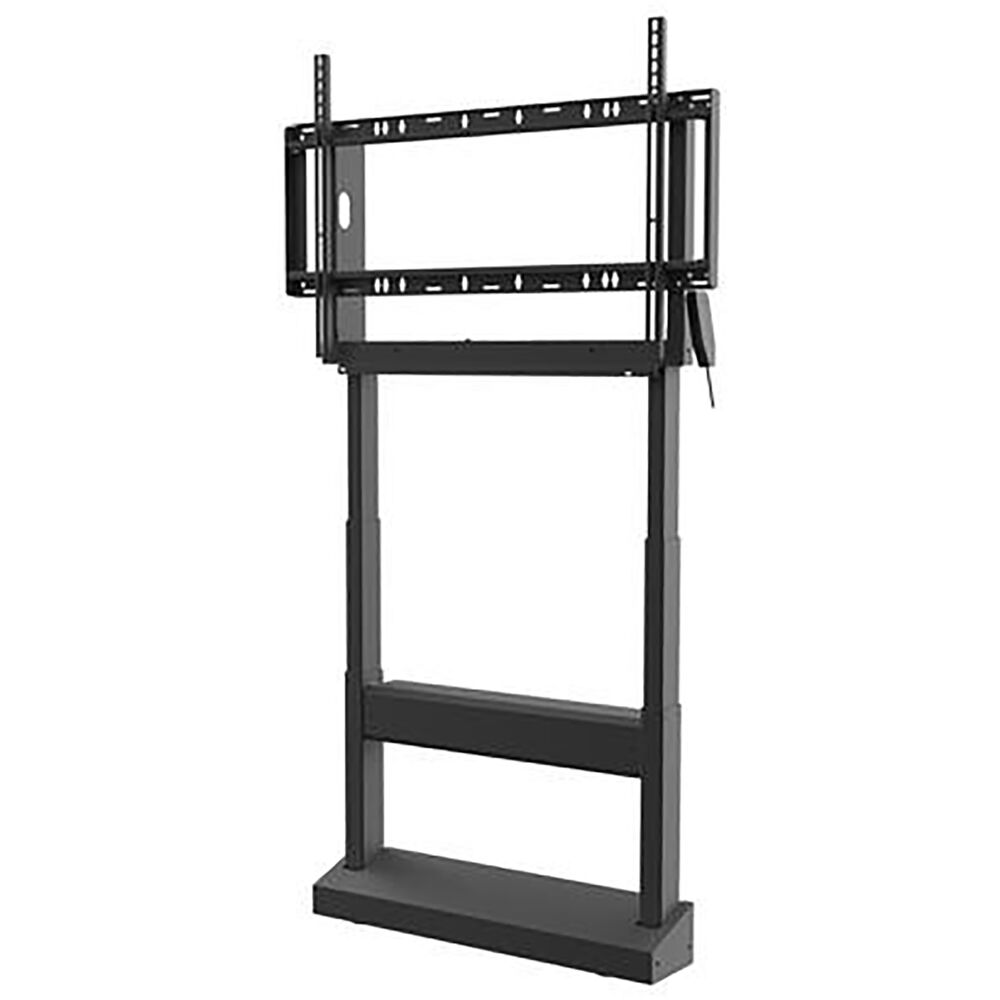

Motorized Stand / Wall Mount for 42-86" Displays

Ideal Use Cases

The Peerless-AV SmartMount SS598ML3 is designed for interactive display installations that require motorized height adjustment and support for multiple users. It accommodates displays from 42 to 86 inches and supports up to 280 lb. Its floor-standing and wall-mountable configuration suits installations where the display may rest on the floor or be secured directly to the floor or wall. The rear wall plate also provides mounting access for a compatible mini PC or Peerless-AV surge protector.

Why Choose This Model

The SS598ML3 combines substantial display capacity with button-controlled vertical positioning. UL-recognized actuators raise or lower the mounted display through a travel range of up to 25.6 inches, or 650 mm. The specified adjustable stand height ranges from 47.76 to 72.42 inches, allowing the screen position to be changed without manually lifting the display. Its highly stable design, 280 lb load capacity, and support for screens as large as 86 inches make it suitable for demanding interactive display installations.

Installation and Integration

This model can rest on the floor or be bolted directly to either the floor or wall. The assembled unit measures 72.42 inches high, 33.13 inches wide, and 6.63 inches deep, with an approximate weight of 100 lb. It is VESA compatible, with mounting pattern information covering 200 x 200 through 800 x 600. Assembly is required. Included components consist of an assembled base with motorized columns, universal display adaptors, a control box, control switch, leveling legs, hardware, and instructions. The rear mounting area supports integration with mini PCs, including Dell Optiplex Micro, HP 260 G2, Lenovo M600 Tiny, and Intel NUC models.

Performance Highlights

Touch-button operation controls the motorized raising and lowering mechanism, allowing users to reposition an interactive display across the available 25.6-inch travel range. The stand supports a minimum adjustable height of 47.76 inches and a maximum adjustable height of 72.42 inches. Its 280 lb load capacity provides support for large interactive displays within the stated 42- to 86-inch range. Leveling legs are included to assist with floor placement, while the option to bolt the structure to a floor or wall provides additional installation flexibility.

What Makes It Different

The SS598ML3 brings motorized adjustment, floor placement, and direct floor or wall attachment together in one display stand. Its rear wall plate provides a dedicated area for mounting a compatible mini PC or Peerless-AV surge protector, helping place supporting hardware behind the display. A bottom shelf offers storage space for a digital pen or eraser. The stand has a black textured, powder-coated finish and is listed as RoHS, TAA, and VESA compliant. Its combination of universal display adaptors, integrated controls, hardware access, and accessory storage is specifically arranged around interactive display use.

Final Assessment

For installations requiring a large interactive display to move vertically at the touch of a button, the Peerless-AV SmartMount SS598ML3 provides a clearly defined combination of capacity and adjustment. It supports 42- to 86-inch screens weighing up to 280 lb, offers 25.6 inches of motorized travel, and can be used on the floor or secured to a floor or wall. Its rear equipment-mounting area, bottom accessory shelf, universal adaptors, and included control components provide a practical foundation for an integrated interactive display installation.
