Mod Dual-Pole Floor-to-Wall Mount Kit

Ideal Use Cases

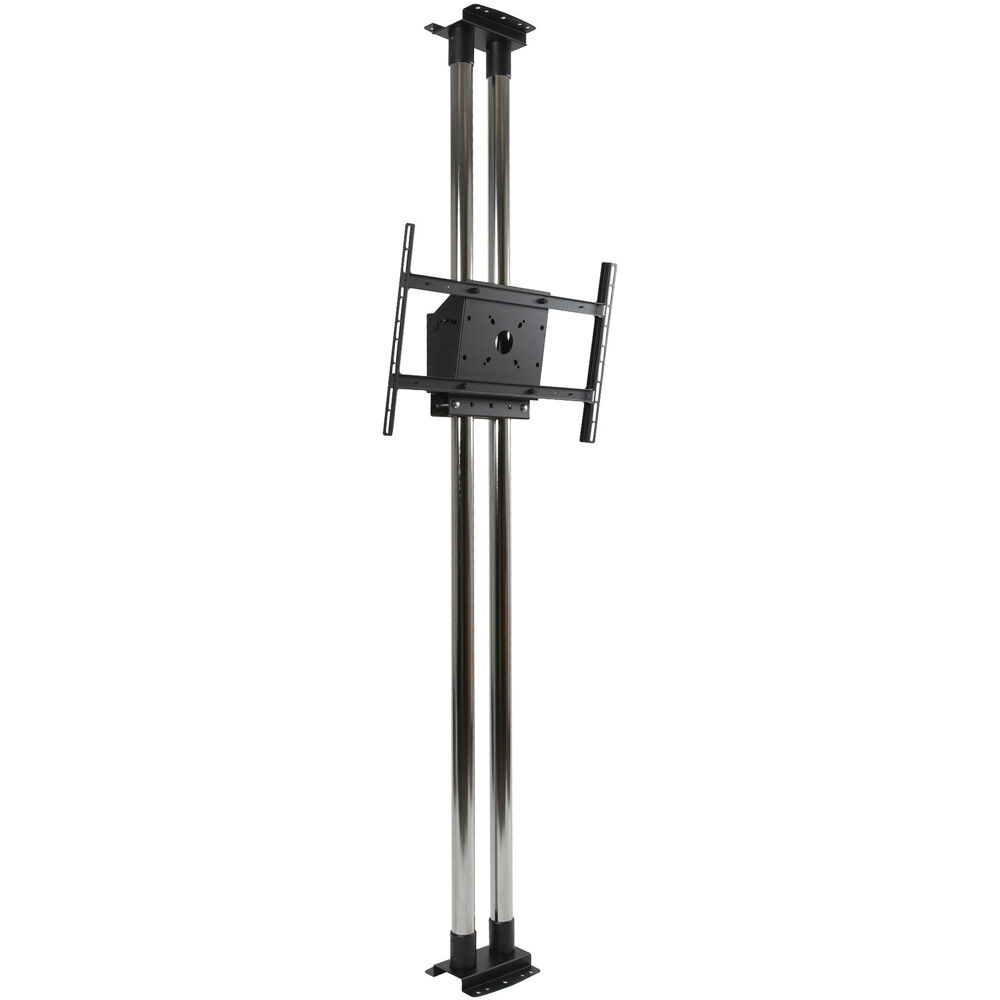

The Peerless-AV Modular MOD-FCS2KIT300 is a dual-pole floor-to-ceiling mounting kit for installations requiring as many as six displays on one mounting system. It supports flat-panel displays from 46 to 90 inches and is part of a modular product line developed for configurable display and projector mounting solutions. Listed application environments include ceiling, concrete, wood, and pole installations.

The system is suited to new AV projects and upgrades where installers need adjustable extension-pole length, broad display compatibility, and substantial load capacity. Its 10.07-foot height and floor-and-ceiling-mountable form factor provide a defined structure for multi-display installations.

Why Choose This Model

The MOD-FCS2KIT300 combines support for six displays with a maximum load capacity of 1,266 lb. Peerless-AV also specifies a minimum load capacity of 211 lb. Supported displays can range from 46 to 90 inches, while VESA compatibility accommodates a minimum mounting pattern of 200 x 100 and a listed mounting pattern of 600 x 400.

Display positioning can be adjusted across the specified 5-degree to 20-degree tilt range. The dual-pole design uses 2-inch, or 50 mm, diameter extension poles. These poles can be cut to length at the installation site, allowing the supplied system to be adapted to project requirements without changing the core mounting platform.

Installation and Integration

Peerless-AV developed the Modular Mount Series with professional AV installers in mind. Its shared component approach allows custom flat-panel display or projector mounting configurations to be assembled from a limited family of parts. The field-cuttable poles make the system applicable to both newly planned installations and upgrades to existing AV environments.

Package contents identify two MOD-CPF2 components, one MOD-FPMS2, one MOD-UNL2, one MOD-ASC2, two MOD-P300 poles, mounting hardware, and instructions. The assembled product measures 10.07 feet high, 24.57 inches wide, and 7.48 inches deep, with an approximate product weight of 51.10 lb. Its listed appearance combines silver, black, and zinc-plated elements with a powder-coated finish.

Performance Highlights

The principal performance advantage is the ability to support up to six large-format displays within a single modular floor-to-ceiling system. The 46- to 90-inch screen range covers multiple flat-panel sizes, while the 1,266 lb maximum load specification addresses demanding multi-display configurations. VESA mount compatibility and the specified mounting patterns provide concrete compatibility references for selecting displays.

A 5-degree minimum and 20-degree maximum tilt range allows installed displays to be angled within the stated limits. The modular components also support configuration for display, flat-panel display, or projector applications, extending the system beyond a single fixed mounting arrangement.

What Makes It Different

The MOD-FCS2KIT300 is distinguished by the combination of dual 2-inch extension poles, six-display support, field-cuttable pole length, and modular component compatibility. Rather than being limited to one predetermined pole length, the system gives installers a supplied structure that can be sized on site. This is particularly relevant when adapting the same modular platform to different project dimensions.

The kit is manufactured in the United States, is TAA compliant, and meets Restriction of Hazardous Substances requirements. RoHS and TAA are both listed among its certifications and standards. Peerless-AV backs the product with a five-year limited warranty.

Final Assessment

The Peerless-AV MOD-FCS2KIT300 is a purpose-built option for floor-to-ceiling installations requiring up to six 46- to 90-inch displays. Its maximum 1,266 lb capacity, VESA compatibility, 5-degree to 20-degree tilt range, and cut-to-length 2-inch poles provide the key technical parameters needed for planning a professional installation. The included modular components, hardware, and instructions create a defined package for new projects or existing-system upgrades, while TAA compliance, RoHS compliance, United States origin, and a five-year warranty complete the specification.
