Dual Pole I-beam Ceiling Plate

Ideal Use Cases

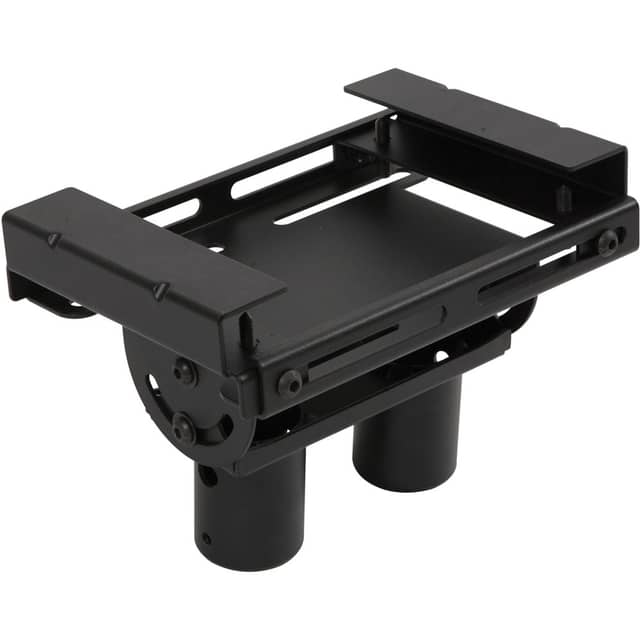

The Peerless-AV MOD-CPI2 is a dual-pole ceiling mounting plate designed for indoor I-beam applications. It accommodates I-beams between 3-3/8 and 9-7/8 inches wide, with compatibility also specified as 85 mm to 250 mm. The plate supports mounting configurations for flat-panel displays and projectors, with a listed supported screen range of 46 to 90 inches. Its maximum load capacity is 422 lb. The MOD-CPI2 can be used in new projects or upgrades developed around compatible components from the Peerless-AV Modular Mount Series.

Why Choose This Model

The MOD-CPI2 belongs to a modular product series designed to fulfill multiple mounting requirements with a limited number of components. This shared-component approach allows professional AV installers to configure custom flat-panel display or projector mounting solutions for individual applications. The dual-pole design and broad I-beam compatibility make this plate a focused choice when a mounting system must connect to an indoor structural I-beam. Its black, powder-coated finish, ceiling-mountable form factor, and defined dimensional specifications also make it straightforward to evaluate during system planning.

Installation and Integration

The Modular Mount Series was developed with professional AV installation in mind. Its system uses a 2-inch or 50 mm diameter support pole that can be cut to the required length at the job site, supporting both new installations and upgrades. Before installation, confirm that the intended I-beam measures within the specified 3-3/8-inch to 9-7/8-inch range and that the complete configuration remains within the stated 422 lb maximum load capacity. The package contains one MOD-CPI2 mounting plate, mounting hardware, and instructions. The product is identified for indoor use and for I-beam and pole applications.

Performance Highlights

The MOD-CPI2 combines a 422 lb maximum load rating with support for flat-panel display and projector applications. Published specifications list a minimum supported screen size of 46 inches and a maximum of 90 inches. The mount function is identified as adjustable tilt, with both minimum and maximum tilt specifications listed at 45 degrees. The plate measures 7.73 inches high, 9.84 inches wide, and 7.81 inches deep, while its approximate weight is 7 lb. Its black exterior has a powder-coated finish, and the product is classified as a ceiling-mountable mounting plate.

What Makes It Different

This model is specifically described as a modular dual-pole I-beam ceiling plate rather than a complete, fixed-purpose display assembly. Its role as an accessory ceiling plate allows it to become part of a configured Peerless-AV mounting solution. The combination of dual-pole support, compatibility with 85 mm to 250 mm wide I-beams, and cut-to-length 2-inch support poles provides clearly defined integration parameters for professional planning. The MOD-CPI2 is manufactured in the United States, is listed as TAA compliant, and carries RoHS and TAA certifications and standards.

Final Assessment

The Peerless-AV MOD-CPI2 is a purpose-built choice for an indoor modular AV installation that requires attachment to an I-beam within the specified width range. Its principal selection points are the dual-pole format, 422 lb maximum capacity, compatibility with 2-inch support poles, black powder-coated finish, and support for flat-panel display or projector configurations. Installation hardware and instructions are included, and the product is covered by a five-year limited warranty. Confirm the beam dimensions, screen range, system load, tilt requirement, and compatibility of the remaining modular components when specifying the complete mounting solution.
