Back to Back Display Mount

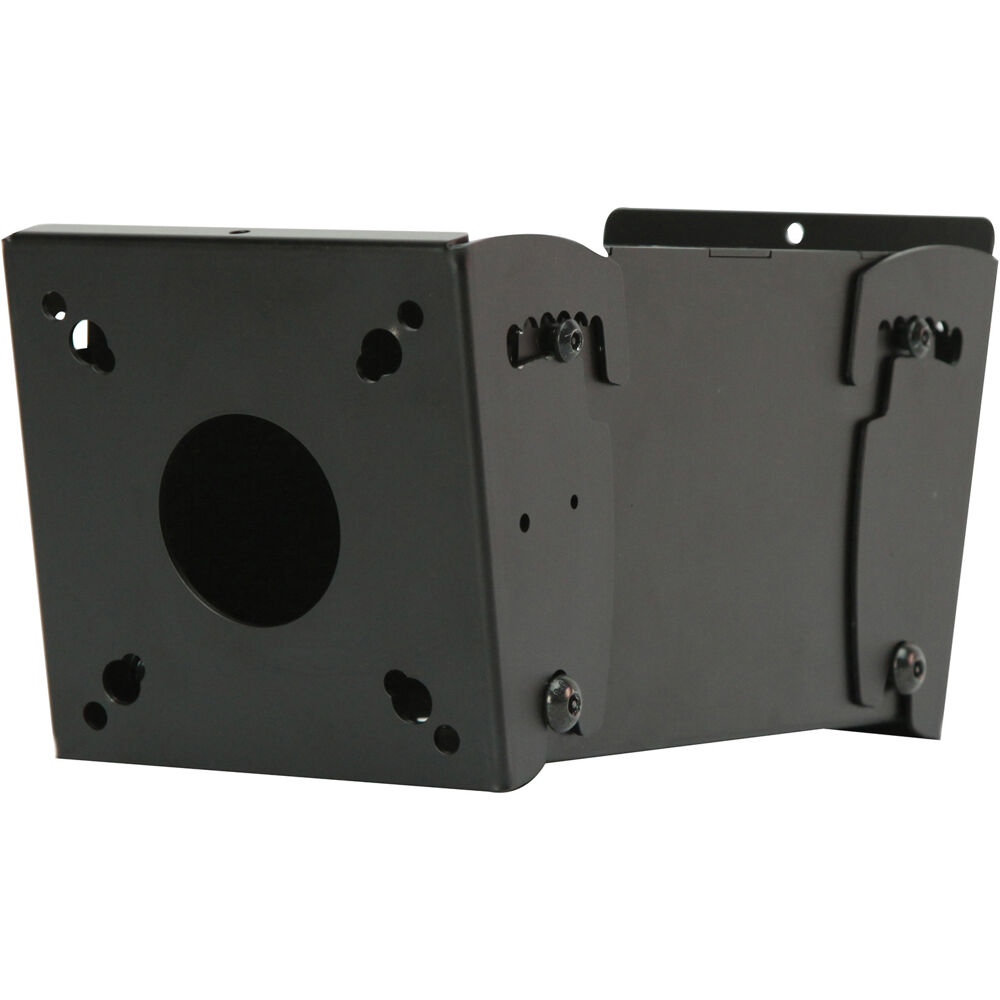

The Peerless-AV MOD-FPMD is an indoor mounting bracket designed to install two flat-panel displays back-to-back within the Peerless-AV Modular Mounts Line. Built around a 2 in (50 mm) diameter pole, it supports screen sizes from 10 to 75 inches and provides a listed maximum load capacity of 374.79 lb. Its compact, powder-coated black construction is intended for professional AV installations, including both new projects and upgrades to compatible mounting systems.

Ideal Use Cases

This model is suited to indoor installations that require two flat-panel screens mounted in opposing directions on a pole. The back-to-back configuration can serve projects where visual content must face two viewing areas from a single mounting location. Compatibility is specified for two flat-panel screens, while the supported 10-to-75-inch range accommodates a broad selection of display sizes.

The MOD-FPMD is intended for pole-based applications and is particularly relevant to professional AV installers working with the Peerless-AV Modular Mounts Line. Its design can be used in new mounting projects or to upgrade an existing compatible installation built around a 2 in pole.

Why Choose This Model

The MOD-FPMD combines dual-display compatibility with a listed load capacity of 374.79 lb. It is VESA compatible and supports 75 x 75 mm and 100 x 100 mm mounting patterns. This dedicated mounting bracket also provides adjustment after installation, with listed tilt angles from 5 to 20 degrees and rotation up to 360 degrees.

Its modular design allows installers to work within a product line developed around interchangeable components and a limited range of SKUs. For installations already based on Peerless-AV modular hardware, the model provides a purpose-built way to add a back-to-back display arrangement.

Installation and Integration

The mount is designed around a 2 in (50 mm) diameter pole. The package includes the display mount, two pole clamps, and mounting hardware, providing the principal components identified for installation. The assembled bracket measures 8.81 in wide, 5.11 in high, and 5.11 in deep, with an approximate product weight of 4.50 lb.

Before installation, confirm that both displays fall within the stated 10-to-75-inch size range, use one of the supported VESA mounting patterns, and remain within the listed maximum load capacity. The mount pattern compatibility type is identified as dedicated. Because the MOD-FPMD is rated for indoor use, installation should be limited to an appropriate interior environment.

Performance Highlights

• Supports two flat-panel screens in a back-to-back configuration.
• Accommodates screen sizes from 10 to 75 inches.
• Provides a listed maximum load capacity of 374.79 lb.
• Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
• Offers listed tilt adjustment from 5 to 20 degrees.
• Allows rotation up to 360 degrees.
• Uses a black powder-coated finish.
• Designed for installation on a 2 in (50 mm) diameter pole.

What Makes It Different

Unlike a conventional single-display bracket, the MOD-FPMD is specifically classified as a back-to-back mount and is compatible with two flat-panel screens. Its pole-clamp installation, compact 8.81 x 5.11 x 5.11 in dimensions, and adjustable tilt and rotation bring display support and positioning into one modular component.

The mount is manufactured in the United States and is listed as TAA compliant. It also meets Restriction of Hazardous Substances requirements, with RoHS and TAA identified among its certifications and standards. Peerless-AV backs the model with a five-year limited warranty.

Final Assessment

The Peerless-AV MOD-FPMD is a focused mounting solution for professional indoor projects requiring two displays positioned back-to-back on a compatible 2 in pole. Its 10-to-75-inch screen support, 374.79 lb listed load capacity, VESA compatibility, adjustable tilt, and 360-degree rotation provide clearly defined installation parameters. For systems using the Peerless-AV Modular Mounts Line, it supplies the dedicated bracket, pole clamps, and mounting hardware needed for this dual-display configuration.
