620 Series Wall Mounts

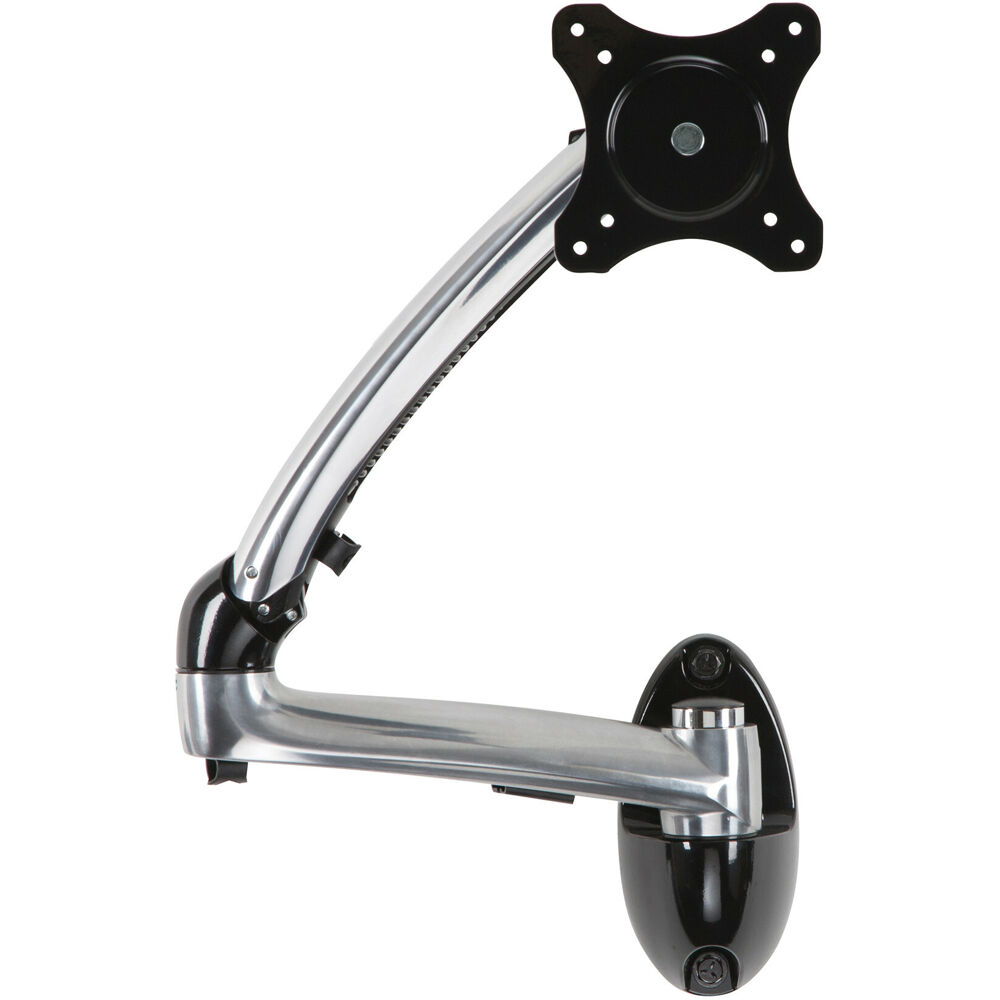

The Peerless-AV LCW620A is an indoor articulating wall mount designed for monitors from 10 to 38 inches. Its height-adjustable articulating arm supports monitor loads from 8.40 to 17.80 lb while providing swivel, rotation, tilt adjustment, landscape or portrait orientation, and integrated cable management. A polished aluminum construction and high-gloss black finish give the mount a refined appearance for monitor installations where a desktop surface is unavailable or wall placement is preferred.

Ideal Use Cases

This model is suited to indoor monitor installations that require flexible wall-based positioning. It can provide additional placement options when a desk or other desktop surface is unavailable, making it applicable to work areas where the monitor must be supported directly from a wall. Compatibility with both landscape and portrait orientation also accommodates displays used for conventional horizontal viewing or vertically arranged content.

The supported 10- to 38-inch screen range covers compact and midsize monitors. Because the mount has both minimum and maximum load requirements, the attached monitor should weigh between 8.40 and 17.80 lb.

Why Choose This Model

The LCW620A combines height adjustment with an articulating arm for adaptable monitor positioning. Its maximum adjustable height is 12.60 inches, allowing the monitor position to be changed within the mount’s stated adjustment capability. The mount also supports up to 180 degrees of swivel and up to 360 degrees of rotation, providing multiple ways to orient the attached screen.

Cable management is included among the mount functions, helping route monitor cabling through a wall-mounted installation. The polished aluminum material, black color, and high-gloss finish provide a consistent finished appearance. At approximately 8.80 lb, the mount includes the wall plate, pole, articulating arm, adaptor, installation hardware, and mounting instructions listed in the package contents.

Installation and Integration

The mount is listed for wall, wood, concrete, cinder block, and breeze block applications. It is wall mountable and intended for indoor use. The included wall plate with pole and arm with adaptor provide the principal mounting components, while the supplied hardware and instructions support installation.

The LCW620A is VESA mount compatible and lists 75 x 75 and 100 x 100 mounting patterns. Before installation, the monitor’s mounting pattern, screen size, and weight should be checked against the mount’s stated compatibility. The intended mounting surface should also correspond to the listed application types. Its dedicated mount-pattern compatibility and included adaptor establish a defined interface between the articulating arm and supported monitor.

Performance Highlights

Positioning capability is central to this model. The articulating design allows the monitor to be moved away from its fixed wall position, while the 12.60-inch maximum height adjustment supports vertical placement changes. A maximum swivel angle of 180 degrees enables side-to-side adjustment, and a maximum rotation angle of 360 degrees supports orientation changes. The supplied specifications also list a minimum tilt angle of 90 degrees and a maximum tilt angle of 45 degrees.

The ability to use either landscape or portrait orientation expands the available screen arrangements without changing mounts. Cable management complements these movement functions by addressing cable routing as the monitor position changes.

What Makes It Different

The LCW620A brings together an articulating arm, height adjustment, swivel, rotation, tilt capability, orientation flexibility, and cable management in one wall-mounted product. Its specified load range begins at 8.40 lb and extends to 17.80 lb, making monitor weight an important part of product selection rather than relying on maximum capacity alone.

The mount is listed as RoHS, TAA, and VESA certified, is TAA compliant, and complies with the Restriction of Hazardous Substances requirements. It is manufactured in Taiwan and carries a five-year limited warranty from Peerless Industries, Inc.

Final Assessment

The Peerless-AV LCW620A is a focused choice for compatible 10- to 38-inch monitors that need indoor wall placement and an 8.40- to 17.80-lb supported load range. Its combination of 12.60-inch height adjustment, 180-degree swivel, 360-degree rotation, landscape or portrait positioning, VESA compatibility, and cable management provides a clearly defined set of installation and positioning capabilities. The included mounting components, hardware, instructions, and five-year limited warranty complete the package.
