55" XTREME HIGH BRIGHT OUTDOOR DISPLAY GEN 4.1

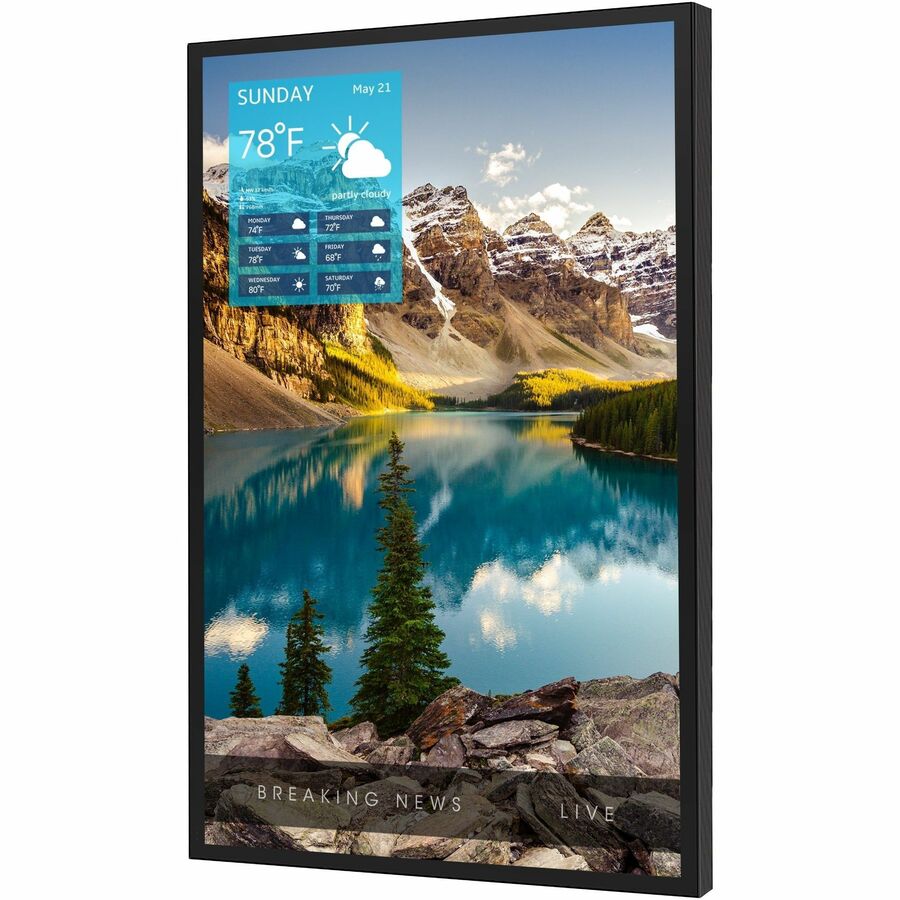

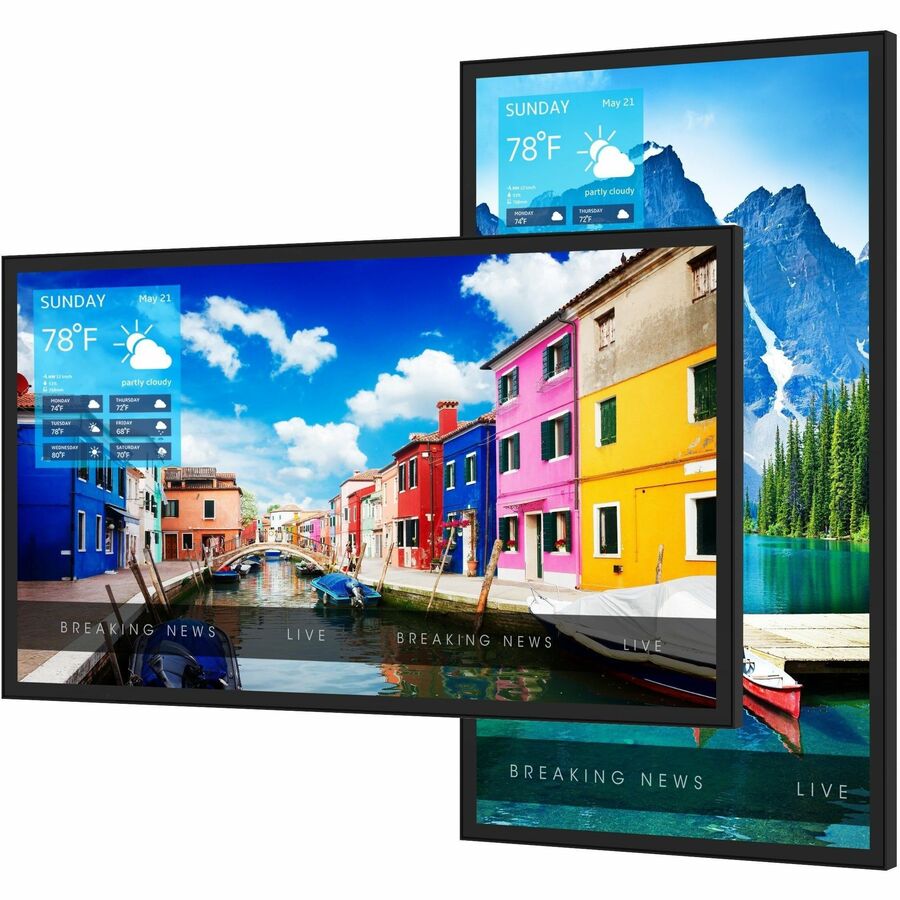

The Peerless-AV® Xtreme™ XHB5541 is a 55-inch-class, 54.6-inch-viewable outdoor LED-LCD display built around daylight visibility, environmental protection, and continuous operation. Its Direct LED backlight delivers 2500-nit brightness at 1920 x 1080p resolution, while optically bonded cover glass reduces glare and increases perceived contrast. The black enclosure supports both landscape and portrait orientations, allowing the same model to accommodate different outdoor display layouts.

Ideal Use Cases

The XHB5541 is suited to outdoor installations that require readable content in daylight and protection from water, dust, moisture, and insects. Its fully sealed, IP66-rated design directly addresses those environmental conditions. A 24-hours-per-day, 7-days-per-week operation rating also supports installations where the display must remain available continuously. With 178-degree horizontal and vertical viewing angles, content can be viewed from positions beyond a straight-on line of sight.

Why Choose This Model

Brightness is central to the XHB5541. Its 2500-nit output, Direct LED backlighting, and optically bonded cover glass work together to deliver a picture designed for outdoor daylight and direct-sunlight conditions. The optical bonding cuts down on glare while improving perceived contrast, addressing two important challenges for exterior displays. The display also combines its sealed construction with a patented thermal exhaust system. Its stated operating range extends from -31°F to 140°F, supporting use across widely varying outdoor temperatures.

Installation and Integration

The display measures 50.07 inches wide, 29.23 inches high, and 3.92 inches deep, with an approximate weight of 104.50 pounds. It is designed for wall mounting and is VESA compatible with a 600 x 850 mounting standard. Landscape and portrait orientation support gives integrators flexibility when planning the content format and available mounting area.

Connection options include two HDMI ports, USB, one composite video input, and one RJ-45 network port. Audio connections include one analog audio output and one digital optical audio output, while a 3.5 mm IR repeater connection supports the included IR extender. The display accepts 100-240 V AC at 50-60 Hz. Maximum operating power consumption is 215 W, and standby consumption is less than 0.5 W.

Performance Highlights

The 54.6-inch viewable panel provides a 1920 x 1080p native image with a 16:9 aspect ratio and a standard 60 Hz refresh rate. It supports 16.7 million colors, 8-bit color depth, and a 72% NTSC color gamut. Supported television formats include 1080p, 1080i, and 480i. The combination of 2500-nit brightness, wide 178-degree viewing angles, and optical bonding is specifically aligned with outdoor viewing, where ambient light and varied viewer positions can affect visibility.

What Makes It Different

The XHB5541 combines high brightness with a fully sealed IP66 enclosure rather than treating outdoor protection as a separate accessory. Its patented thermal exhaust system complements that sealed design, while the bonded cover glass addresses reflection and perceived contrast at the front of the display. Remote and local monitoring are supported through an IP-addressable user interface, providing access to temperature, humidity, power draw, orientation, and movement diagnostics. These monitoring capabilities give operators information about both environmental conditions and display status.

The package includes a waterproof IR learning remote control, user guide, cable ties, 3 mm hex wrench, power cord, and IR extender. The display is UL listed, RoHS compliant, and identified with FCC Class A, cULus, CE, and UKCA certifications and standards.

Final Assessment

The Peerless-AV Xtreme XHB5541 brings together a 2500-nit Full HD image, IP66 sealing, optical bonding, a broad operating-temperature range, and 24/7 operation in a 55-inch-class outdoor display. Its flexible orientation, wall-mount compatibility, wired network monitoring, and varied input and output connections make it a well-defined option for outdoor installations that require daylight-readable performance and integrated environmental protection.
