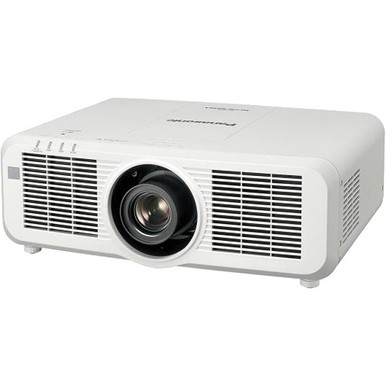

Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector (White, with 1.6 to 2.8:1 Lens)

(No reviews yet) Write a Review
Free Shipping
  • Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector
  • Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector
  • Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector
  • Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector
  • Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector
Frequently bought together:


Panasonic MZ770U Overview

Enjoy bright images in most settings with the white Panasonic PT-MZ770U 8000-Lumen WUXGA 3LCD Laser Projector. Its 8000 lumens of brightness and 3,000,000:1 dynamic contrast ratio work together to overcome light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 native resolution for viewing detailed video, pictures, and data. The included lens features a 1.6 to 2.8:1 throw ratio to enable projection from nearly anywhere in the room; additional lenses with various throw and zoom ratios are available separately.

The PT-MZ770U features DIGITAL LINK via Ethernet, composite video, VGA, and two HDMI inputs to connect to nearly any device. A VGA output allows you to daisy-chain multiple projectors or displays. The projector is controllable via the included wireless remote control, Ethernet, DIGITAL LINK, or RS-232 with various control software options.

Key Features

  • Brightness of 8000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Includes 1.6 to 2.8:1 Lens
  • HDBaseT, 5BNC, VGA, RCA, 2x HDMI Inputs
  • Analog Audio Input and Output
  • Integrated 10-Watt Speaker
  • Ethernet and RS-232 Controllable
  • Compatible with Various Control Systems
  • Wireless/Wired Remote Included

Image Quality Features

Designed to Produce Bright Images

The PT-MZ770U outputs up to 8000 lumens of brightness, bringing detailed images to rooms with high levels of ambient light. Text can be reproduced clearly and legibly, while graphics and video retain their color saturation and contrast.

High Dynamic Contrast Ratio

Laser output modulation helps the projector achieve up to a 3,000,000:1 dynamic contrast ratio while minimizing power consumption. High contrast performance adds depth and realism to video, showing more defined details in shadows, even when bright and dark scenes frequently interchange.

Daylight View Basic

Daylight View Basic is designed to enhance sharpness by optimizing detail reproduction in dark areas of the image, which can be difficult to see in bright light. A sensor measures ambient light, allowing halftone color and brightness to be optimized to better suit the surrounding environment.

Detail Clarity Processor 4

The Detail Clarity Processor 4 is designed to analyze individual frames of video to clarify areas of each image containing fine details. Algorithms pull information from four frequency bands of the signal to help sharpen outlines, correct contours, and reduce ringing noise for augmented clarity.

Color Adjustment

Color Adjustment helps make it easy to correct slight variations in the color reproduction range of individual projectors set up for multiple projection, particularly those in side-by-side configurations. Correction can be performed on three or seven colors.

Maintenance and ECO Features

Enhanced Efficiency

The SOLID SHINE laser light source is designed to deliver up to 20,000 hours of consistent brightness and color accuracy, reducing total cost of ownership by limiting the amount of onboard consumable parts.

ECO Management System with Intelligent Light Source Control

Energy efficiency is augmented by automatically reducing light source output power in dim rooms, and by transitioning to a low-power mode when no signal is detected.

Dust Resistant Cabinet with One-Way Airflow Design

The dust-resistant cabinet has an unobstructed one-way airflow with hermetic sealing around the filter module and air intake duct, reducing dust intrusion and extending picture brightness.

Reusable Air Filter

The included air filter can be washed and reused twice after roughly 20,000 hours, providing a reduced total cost of ownership.

System Flexibility

Powered Lens Shift, Zoom, and Focus

Horizontal and vertical lens shift, remotely powered zoom, and remotely powered focus adjustment enhance convenience and installation versatility.

Enhanced Connectivity with 4K Support

The PT-MZ770U supports 4K UHD signals via HDMI and DIGITAL LINK and features a separate LAN terminal. DIGITAL LINK can transmit A/V and control signals over a LAN cable up to 492' and 4K video up to 164'. A separate LAN terminal offers a dedicated control interface if preferred.

Auto Image Rotation

When the projector is set to, it can automatically rotate images depending on its orientation using a built-in angle sensor.

Designed for Quiet Operation

The projector keeps its noise as low as 26 dB in Quiet Mode, minimizing distractions during presentations.

Project Wirelessly with an Optional Module

The optional ET-WM300 Wireless Module lets you share media from your computer or mobile device (with the appropriate app installed) wirelessly to the projector.

Plug and Share

Insert a USB memory device into the USB port and start projecting stored content right away without connecting a computer.

Additional Features

Multi Monitoring & Control Software

Manage up to 2048 devices via your network with system map visualization and auto-search of unregistered devices, enabling real time monitoring and more.

Quick Start and Quick Off

The laser light source needs no time to warm up, so images appear almost instantaneously in Quick Start / Quick Off Standby Mode. Also, no cool-down is required, so you can turn the unit off at any time.

Fade In and Fade Out

Laser output modulation technology also enables the Fade In/Fade Out function, which allows you to commence or conclude your presentation professionally.
  • 360° projector placement allows projection from nearly any angle
  • Screen Adjustment functions for complex screen surfaces
  • Data cloning via USB or LAN
  • DICOM Simulation Mode
  • USB Memory Viewer
  • Compatible with PJLink (Class 2), Crestron Connected, EXTRON XTP, and AMX D.D.
  • Direct Power Off
  • Audio Standby Mode
  • Scheduling function
  • Smart projector control
  • Presentation support function
  • Supports Panasonic LinkRay
  • Active matrix drive
  • HDCP 2.2 and Deep Color support
  • LPCM sampling frequencies of 48, 44.1, and 32 kHz
  • Molded plastic (PC + ABS) cabinet

Panasonic MZ770U Specs

Image Display

Display System 3-Chip 0.76" LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Maximum: UHD 4K - 3840 x 2160
Maximum Brightness 8000 Lumens
Uniformity 90%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 3,000,000:1


Focus Manual Powered
Lens f/1.7 - 2.6 (f = 26.8 - 45.5 mm)
Lens Shift Vertical: ± 67%
Horizontal: ± 35%
Optical Zoom Powered:
Throw Distance 11.4 - 19.6' / 3.47 - 5.97 m
Throw Ratio 1.6 to 2.8:1
Projection Size 40 - 400" / 101.60 - 1016.00 cm


Keystone Correction Vertical: ± 25°
Horizontal: ± 30°
Ceiling Mountable Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Projection Tilt Option Yes

Input/Output Connectors

Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Data, Remote, Service, Video
2 x HDMI (HDMI Type-A) Audio, Video Input
1 x 5BNC Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Output
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x RS-232 (DE-9/DB-9) Control Input
1 x DE-9/DB-9 Remote Input
1 x M3 Remote Input
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) Audio, Data, Video Input
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (USB Type-A) Data Input


Wireless LAN / Wi-Fi No, Optional Adapter Available


Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours
Fan Noise Full Brightness: 35 dB
Low Brightness: 28 dB
Security Cable Lock Slot
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 570 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 20 - 80%
Dimensions (W x H x D) 22.1 x 8.1 x 17.4" / 560.0 x 205.0 x 443.0 mm With Included Lens
Weight 37.70 lb / 17.1 kg With Included Lens

Packaging Info

Package Weight 50 lb
Box Dimensions (LxWxH) 30.5 x 23 x 13.9"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
