Panasonic EMT7 Overview

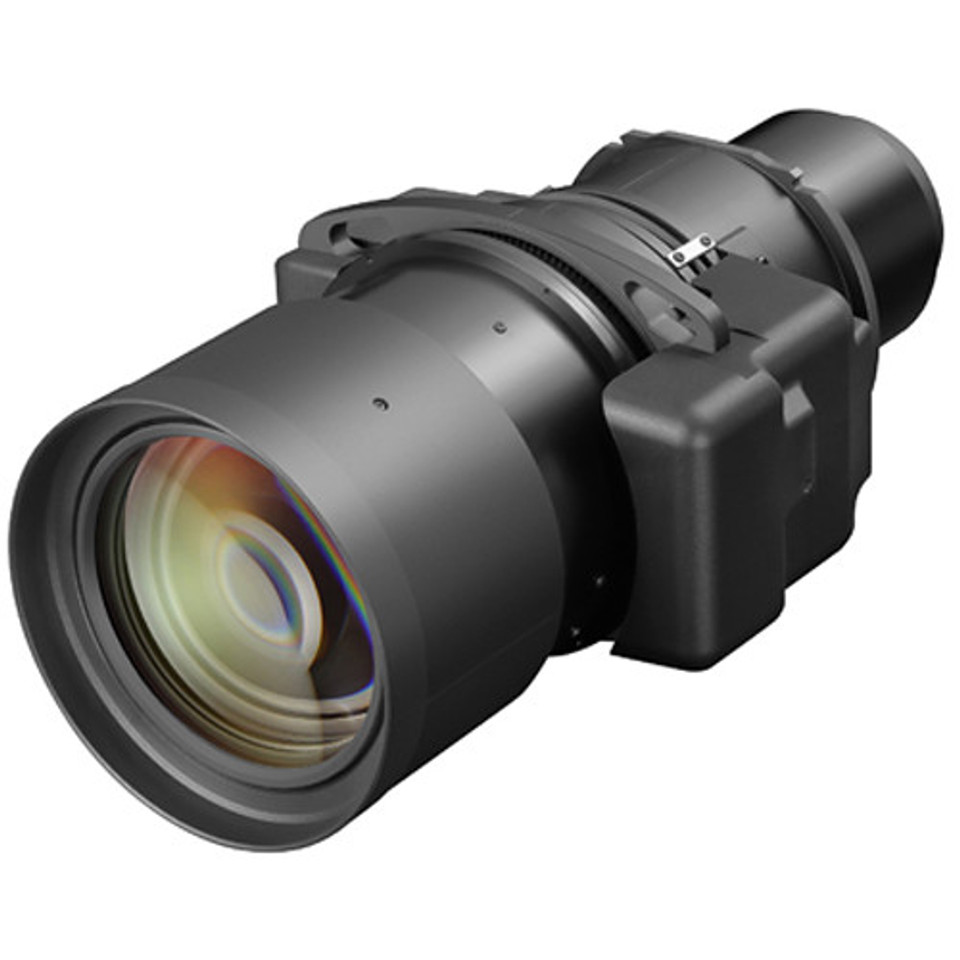

Designed for use with PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors, the ET-EMT700 46-90.5mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal length. The lens offers a focal range of 46-90.5mm and an aperture range of f/1.82-2.53, providing a throw ratio of 2.1-4.14:1 in 16:10 mode, 2.1-4.15:1 in 16:9 mode, and 2.5-4.97:1 in 4:3 mode.
Key Features
- For PT-MZ16K/MZ13K/MZ10K Projectors
- Focal Length: 46-90.5mm
- Aperture: f/1.82-2.53
- Throw Ratio: 2.1-4.14:1 (16:10 )
- Throw Ratio: 2.1-4.15:1 (16:9)
- Throw Ratio: 2.5-4.97:1 (4:3)
Panasonic EMT7 Specs
General
| Compatibility | Panasonic PT-MZ16KL Panasonic PT-MZ13KL Panasonic PT-MZ10KL |
| Lens Type | Zoom |
Performance
| Throw Ratio | 2.1 to 4.14:1 (16:10) 2.1 to 4.15:1 (16:9) 2.5 to 4.97:1 (4:3) |
| Aperture | f/1.82 to 2.53 |
| Focal Length | f = 46 to 90.5mm |
| Aspect Ratio | 16:10 16:9 4:3 |
Physical
| Exterior Dimensions | H: 5.1 x W: 6.8 x L: 12.9" / H: 130.0 x W: 173.0 x L: 327.0 mm |
| Weight | 10.03 lb / 4.55 kg |
