Panasonic D3LEW Overview

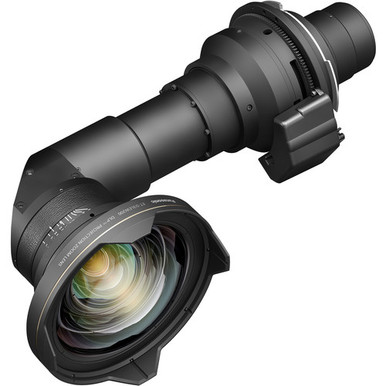

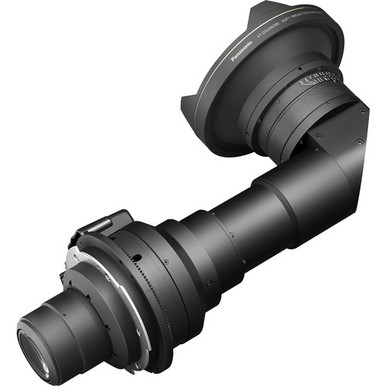

Designed for use in applications where space is a limiting factor, Panasonic's ET-D3LEW200 13.8-18.1mm Short-Throw Zoom Lens has a focal length of 13.8-18.1mm and an aperture of f/2.5, delivering a 0.693?0.913:1 throw ratio when projecting images in 4K+ mode. This lens enables you to project images with a diagonal size between 200 and 600" and is compatible with select Panasonic DLP 3-chip projectors.
Key Features

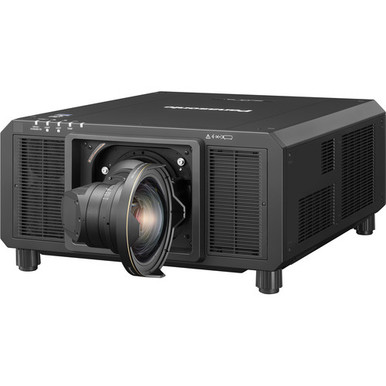

- For Select 3-Chip DLP Projectors
- 13.8-18.1mm Focal Length
- f/2.5 Aperture
- 0.693–0.913:1 Throw Ratio in 4K+ Mode
Panasonic D3LEW Specs
General
| Compatibility | Panasonic PT-RQ32K Panasonic PT-RZ31K Panasonic PT-RQ22K Panasonic PT-RZ21K |
| Lens Type | Short-Throw, Zoom |
Performance
| Throw Ratio | 0.693 to 0.913:1 (4K) 0.645 to 0.850:1 (WUXGA) 0.699 to 0.921:1 (SXGA+) |
| Aperture | f/2.5 |
| Focal Length | f = 13.8 to 18.1mm |
| Projection Size | 200 to 600" / 508.00 to 1524.00 cm |
| Lens Shift Percentage | Vertical: ±56% Horizontal: ±19% |
| Zoom Ratio | 1.5 |
Physical
| Exterior Dimensions | H: 7.6 x W: 9.8 x L: 19.5" / H: 193.0 x W: 250.0 x L: 495.0 mm |
| Weight | 19.8 lb / 8.98 kg |
1 Year Parts & Labor Manufacture Warranty
