Description

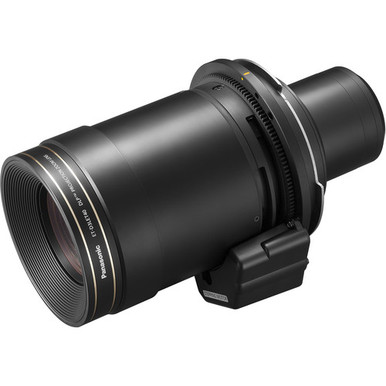

Panasonic D3LET Overview
Designed for use with select 3-chip DLP projectors, the 96.6-154.9mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal distance. The zoom lens is equipped with an EEPROM (electronically erasable programmable read-only memory) and a stepping motor. Included with the lens is a protective lens cover.
Panasonic D3LET Specs
General
| Compatibility | Panasonic PT-RQ32K Panasonic PT-RZ31K Panasonic PT-RS30K Panasonic PT-RQ22K Panasonic PT-RZ21K Panasonic PT-RS20K |
| Lens Type | Zoom |
| Motorized | Yes |
Performance
| Throw Ratio | PT-RQ32K/RQ22K: 4.94 to 7.94:1 (16:10) PT-RZ31K/RZ21K: 4.61 to 7.41:1 (16:10) PT-RS30K/RS20K: 4.99 to 8.02:1 (4:3) |
| Aperture | f/2.5 |
| Focal Length | f = 96.6 to 154.9mm |
Physical
| Exterior Dimensions | ø: 6.1 x L: 11.0" / ø: 154.0 x L: 279.0 mm |
| Weight | 11.02 lb / 5 kg |
