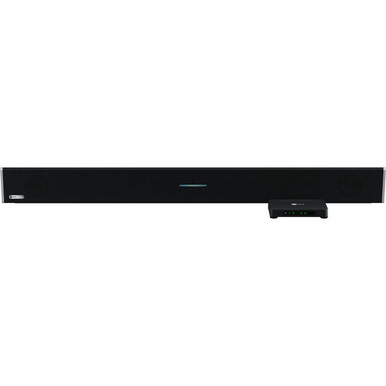

Suited for mid-sized conference spaces measuring 30 x 30′, the black HDCL310 Audio Conference System equips you with all the tools you need for high-quality audio during your next hybrid meeting or presentation. The system includes a speaker bar with integrated microphones, connect module with USB-B host connection, infrared remote control, and cables to connect the units to one another. Install the system in your meeting room with the connect module mounting bracket to deliver and capture sound in a space up to 30 x 30′.

Powerful Microphone Array and Speakers
The speaker bar features twelve built-in omnidirectional MEMS microphones and two 20W speakers. Its microphone mist technology capable of deploying 8192 virtual microphones throughout your conference space to pick up voices from virtually every corner. A greater processing power and expanded memory unlocks other advanced audio capabilities.

Virtual Microphone Capabilities

• Intelligent sound targeting: adaptive learning algorithms identify noise polluters like HVAC systems and fans to eliminate disruptions.
• Position-based gain control: embedded technology identifies the best position of each sound source and applies gain equally for optimized microphone and sound processing. Remote participants have an easier listening experience without needing to parse through uneven audio.
• Continuous autocalibration: the system continues to adapt to your room’s acoustic profile without the need for manual calibration when you reconfigure your space.
• Simultaneous processing: even when multiple participants are speaking simultaneously, the speaker bar processes all virtual microphones at the same time so conversations sound natural to remote participants.

Software and Services

• Your HDL310 system includes the Nureva Console cloud management system to remotely install firmware updates, check device status, change audio settings, explore analytics data, and more.
• Also included is a 2-year subcription to Nureva PRO for expanded support and advanced hardware replacement. Talk to experts 20/5 whenever you have an issue to troubleshoot.
• The Developer Tool Kit allows you to get APIs for easy integration of your Nureva devices with third-party products, automate tasks, and in the future enable third-party camera control.
• Nureva Pro support is free for two years with expanded support hours, advance hardware replacement, and enhanced console features.

Voice Amplification Mode
Connect a wireless headset microphone to your system to enable Voice Amplification Mode. The individual wearing the microphone will be broadcasted through the speakers without disruption from the full-room microphone pickup. Audience mute can be toggled to eliminate all other microphone pickup using the infrared remote.

Connect Module Hub
The Connect Module features a USB-B 2.0 host interface for connection to a computer. A 3.5mm output and input offer audio expansion while two RJ45 ports connect the module to the speaker bar. Another RJ45 port connects the console to your preexisting network with the included Ethernet cable. Power the module using the included power cable.

Compatibility
The HDL310 works with leading UC&C platforms like Microsoft Teams, Zoom, Google Meet, Ring Central, and others. Compatible room peripherals from Barco, Logitech, Extron, Crestron, Poly, Huddly, and others can be integrated into the system with ease.

Specifications

Microphone 12 MEMS
Frequency Response 94 dB SPL at 100 Hz to 7 kHz
THD 0.25% (Typical)
Speakers 2 x 20 W ,4″ Aluminum Cone
Audio Output 91 dB-SPL at 3.3′ / 1 m
Inputs/Outputs
1 x USB-B 2.0 Hub
1 x 3.5 mm Stereo Aux Output
1 x 3.5 mm Stereo Aux Input
2 x RJ45 Speaker and Microphone Inputs
1 x RJ45 Network Input
1 x DC Barrel Power Input
Operating System Windows 8, 10,macOS X 10 and 11
Power Rating Universal Switching 100 to 240 VAC, 50 to 60 Hz
Power Consumption <30 W
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Compliance RoHS, REACH, PoP, WEEE, California Proposition 65, EPA
Certifications FCC Part 15, Class A; ICES-003, Class A; CISPR 32 (EN55032), Class A; CISPR 35 (EN55035); CISPR24 (EN55024); UL 62368; CAN/CSA-C22.2 NO.62368; IEC/EN62368; AS/NZS 62368; UL 60950; CAN/CSA-C22.2 NO.60950; IEC/EN60950; AS/NZS 60950
Dimensions
60 x 5.91 x 3.5″ / 152.4 x 14.9 x 9 cm (Speaker Bar with Integrated Microphones)
8.7 x 5.91 x 1.46″ / 22.2 x 15 x 3.7 cm (Connect Module)
Weight
18 lb / 8.2 kg (Speaker Bar with Integrated Microphones)
0.97 lb / 0.44 kg (Connect Module)

Packaging Info
Package Weight 25.5 lb
Box Dimensions (LxWxH) 64.25 x 10.5 x 9.5″
