Key Features
The monitor boasts a 1000:1 (25,000:1 dynamic) contrast ratio, 178°/178° viewing angles, and 250cd/m² brightness
The quick 5ms response time prevents image blurring and ghosting, making it excellent for watching fast-paced video
The display's stand is capable of height, pivot, tilt, and swivel adjustment

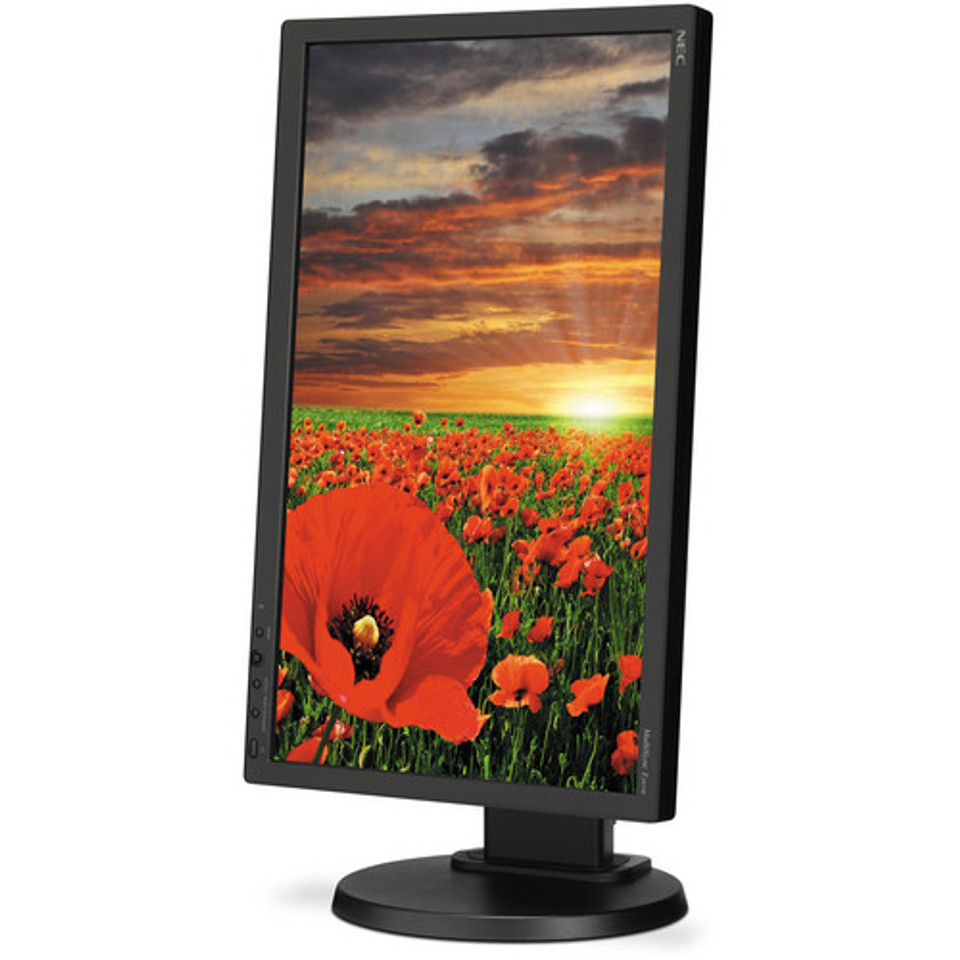

The MultiSync E201W-BK 20" Eco-Friendly Widescreen LCD Computer Display from NEC is an eco-conscious computer monitor with VGA, DVI, and DisplayPort inputs. It features a 16:9 aspect ratio with a native resolution of 1600 x 900 -- greater than that of 720p video. The LED backlit reduces power consumption and enhances image quality when compared to traditional CCFL lamps.
The monitor boasts a 1000:1 (25,000:1 dynamic) contrast ratio, 178°/178° viewing angles, and 250cd/m² brightness. The quick 5ms response time prevents image blurring and ghosting, making it excellent for watching fast-paced video. The display's stand is capable of height, pivot, tilt, and swivel adjustment.
NEC P221W Specs
| Panel/Display |
|
| Type |
LCD Flat Panel (TN, W-LED Backlight) |
| Viewable Size |
20.1" |
| Brightness |
250cd/m² |
| Contrast Ratio |
1000:1 (Typical); 25,000:1 (Dynamic) |
| Viewing Angle |
178° horizontal, 178° vertical |
| Pixel Dot Pitch |
0.28mm |
| Response Time |
5ms |
| Panel Life |
Not Specified by Manufacturer |
| Colors Supported |
>16.7 million |
| Signal |
|
| Internal Interface |
Analog/Digital |
| Frequency |
Horizontal: 31.5-82.3kHz
Vertical: 56-75Hz |
| Sync Type |
Separate/Composite Sync: TTL Level (Positive/Negative), Composite Sync on Green (0.3Vp-p negative 0.7Vp-p positive) |
| Resolution |
1600 x 900 |
| Input/Output Connectors |
|
| Analog |
1x VGA |
| Digital |
1x DVI-D
1x DisplayPort |
| Audio Input |
None |
| Headphone Jack |
None |
| Hub Ports |
None |
| Speakers |
None |
| Mount |
VESA 100 x 100mm |
| Controls |
|
| Buttons |
NaViKey |
| On-Screen Display |
Yes |
| Auto Configuration |
Yes |
| Touch Screen |
No |
| Tilt/Swivel Range |
Tilt: Yes
Swivel: Yes
Height: 4.3" (11cm)
Pivot: Yes |
| Security |
None |
| Compliant Standards |
ENERGY STAR 5.0, TCO 5.0, EPEAT Silver, RoHS, VESA DDC 2B, ISO 9241-307 Class I, Windows 7 |
| System Requirements |
Computer with VGA, DisplayPort, or DVI output |
| Power Requirements |
Consumption: 28W (Typical), 0.34W (Power Saving Mode) |
| Environmental Requirements |
Operating
Temperature: 41-95°F (5-35°C)
Humidity: 20-80%
Altitude: 0-6562' (0-2000 m)
Storage
Temperature: 14-140°F (-10-60°C)
Humidity: 10-85%
Altitude: 0-40,000' (0-12,192 m) |
| Dimensions |
With Stand: 18.8 x 14.1-18.5 x 8.4" (47.7 x 35.9-46.9 x 21.4cm)
Without Stand: 18.8 x 11.2 x 2.2" (47.7 x 28.6 x 5.5mm) |
| Weight |
With Stand: 11.9 lb (5.4kg)
Without Stand: 7.6 lb (3.4kg) |
Packaging Info
| Package Weight |
14 lb |
| Box Dimensions (LxWxH) |
25 x 14 x 9.2" |
