Mustang Pro Tilt Mount 600x500 200lbs

Ideal Use Cases

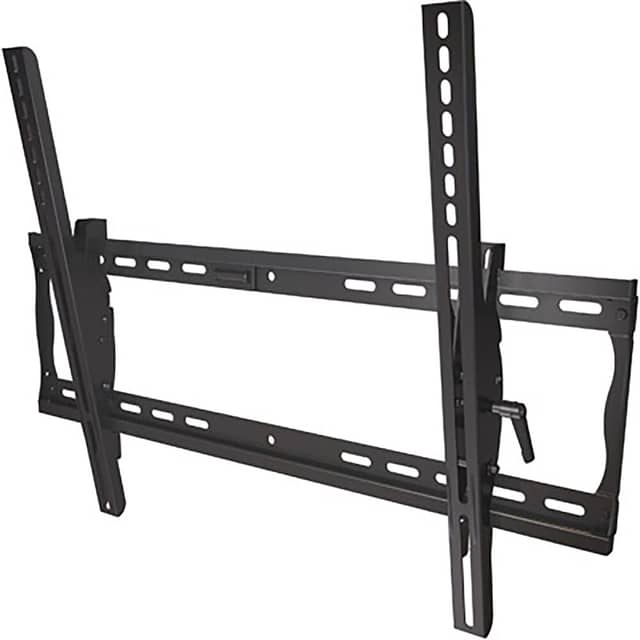

The Mustang AV MPT-L65U is designed for installations requiring a tilting mount for 32- to 80-inch LCD, LED, or plasma displays. Its 200-pound load rating makes it suitable for compatible displays across a broad size and weight range, including heavier models. The mount supports VESA patterns up to 660 x 501 mm, so installers can evaluate both the display weight and mounting-hole pattern before selection. Its tilt mechanism is particularly relevant for bottom-heavy displays that can benefit from controlled positioning.

Why Choose This Model

The MPT-L65U combines a high load rating with a pre-tensioned tilt mechanism and ratcheting handle. This configuration is designed to benefit bottom-heavy displays while providing access to tilt adjustment from the mount. The structure is fabricated from high-grade cold-rolled steel and finished with a durable epoxy powder coat. These documented construction details distinguish the mount from models that do not specify their frame material or finish.

Compatibility is clearly defined: display sizes from 32 to 80 inches, a maximum supported weight of 200 pounds, and a maximum VESA pattern of 660 x 501 mm. These specifications make it easier to confirm suitability against the requirements of a particular LCD, LED, or plasma television.

Installation and Integration

The MPT-L65U can be installed on double- or triple-wood-stud structures, depending on the applicable installation configuration. It also mounts to structural concrete and cinder block surfaces. Metal-stud installations require Mustang toggle-bolt hardware. Because the required structure and hardware vary by installation surface, the wall construction should be identified before mounting begins.

An included kickstand provides access for cord installation, helping installers work behind the display after it has been positioned on the mount. This is useful when routing or connecting cables in the limited space between a mounted display and its installation surface. A lock-and-key system is also listed as available for tilting mounts. The provided data does not identify that system as standard included equipment.

Before installation, verify that the display falls within the stated 32- to 80-inch range, does not exceed the 200-pound load rating, and uses a VESA pattern no larger than 660 x 501 mm. The installation surface must also match one of the supported structural arrangements, with the appropriate hardware used for that surface.

Performance Highlights

• Supports 32- to 80-inch LCD, LED, and plasma displays.
• Rated for display loads up to 200 pounds.
• Accommodates VESA mounting patterns up to 660 x 501 mm.
• Uses a pre-tensioned tilt mechanism with a ratcheting handle.
• Tilt design benefits bottom-heavy displays.
• Constructed from high-grade cold-rolled steel.
• Finished with a durable epoxy powder coat.
• Includes a kickstand for easier cord installation.

The source data does not specify a tilt-angle range, overall mount dimensions, product weight, or distance from the installation surface. Those values should not be assumed when planning an installation.

What Makes It Different

The defining feature of the MPT-L65U is the combination of its 200-pound rating and its pre-tensioned, ratcheting tilt mechanism. Rather than describing tilt capability alone, the supplied specifications identify a design intended to benefit bottom-heavy displays. The included kickstand adds practical access for cord installation, while the supported installation surfaces include wood-stud structures, structural concrete, and cinder block. Metal-stud applications are also addressed through the specified use of Mustang toggle-bolt hardware.

Final Assessment

The Mustang AV MPT-L65U is a professional tilt display mount with clearly stated compatibility limits and installation requirements. It supports 32- to 80-inch LCD, LED, and plasma displays weighing up to 200 pounds and using VESA patterns up to 660 x 501 mm. Its cold-rolled-steel construction, epoxy powder-coat finish, pre-tensioned tilt mechanism, ratcheting handle, and included cord-access kickstand provide a focused set of features for compatible display installations.
