Mustang Pro Floor Stand 1300x700 300lbs Heavy Duty Security locks

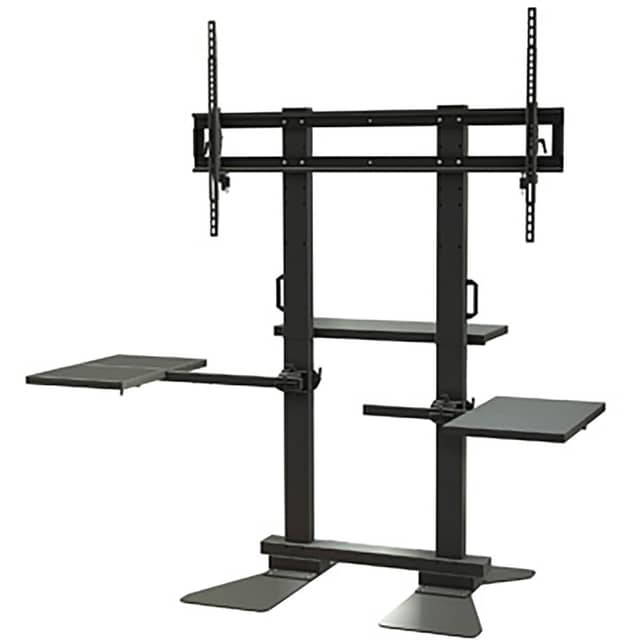

The Mustang AV MPS-X137UL is a professional floor display mount designed for 70- to 98-inch TVs weighing up to 300 lbs. Its aluminum and high-grade cold-rolled steel construction supports demanding large-display installations, while the scratch-resistant epoxy powder-coat finish helps protect the stand’s exterior. A maximum VESA pattern of 1351 x 757 mm accommodates a broad range of compatible displays.

Ideal Use Cases

This model is suited to installations centered on large 70- to 98-inch TVs. Its 300 lb load rating makes it appropriate when the selected display requires more support than a lighter-duty floor stand can provide. Four available height positions and continuous tilt adjustment also make it useful for projects that require the screen position to be tailored to the viewing environment.

The one-touch lock-and-key system addresses installations where display security is an important requirement. Adjustable shelf options allow the mounting system to be configured around laptops, components, or other equipment when the corresponding accessories are selected.

Why Choose This Model

The MPS-X137UL combines substantial display capacity with controlled positioning. The display can be centered at 52, 58, 60, or 64 inches, providing four defined mounting heights. Its continuous tilt range extends from 15 degrees upward to 5 degrees downward, with incremental locking positions for securing the chosen angle.

These adjustments provide flexibility without sacrificing the stand’s heavy-duty specification. The 300 lb load rating, 1351 x 757 mm maximum VESA pattern, and compatibility with 70- to 98-inch TVs give installers clear parameters for confirming display suitability before installation.

Installation and Integration

Installation planning should begin by confirming the TV’s dimensions, weight, and VESA mounting pattern against the stand’s stated limits. The display must measure between 70 and 98 inches, weigh no more than 300 lbs, and use a VESA pattern no larger than 1351 x 757 mm. The preferred display-center height can then be selected from the four available positions.

After setting the height, the continuous tilt mechanism allows the screen angle to be adjusted between +15 and -5 degrees. Incremental locking positions secure the selected tilt setting. The one-touch lock-and-key system adds the specified security function after the display is mounted.

Compatible optional accessories include the MPMP-C9 back-panel and cover system, MPMS-9S laptop shelf, MPMS-9B front/back shelf, and MPMS-9T top shelf. Shelf positions are vertically adjustable. Side shelves can be adjusted continuously from 45 degrees in front of the display to 45 degrees behind it. With the cover installed, the maximum supported component depth is 3 inches.

Performance Highlights

• Supports 70- to 98-inch TVs.
• Rated for display loads up to 300 lbs.
• Accepts VESA patterns up to 1351 x 757 mm.
• Centers the display at 52, 58, 60, or 64 inches.
• Provides +15-degree to -5-degree continuous tilt.
• Uses incremental locking positions for tilt adjustment.
• Includes a one-touch lock-and-key security system.

What Makes It Different

The MPS-X137UL brings its primary adjustment and security features together in one large-format floor mounting system. Instead of providing a single fixed display height, it offers four center-height positions. Instead of limiting the screen to a fixed angle, it supplies continuous positive and negative tilt with defined locking positions.

Its accessory system provides additional configuration choices without making those components mandatory. Installers can select a back-panel and cover system, laptop shelf, front/back shelf, or top shelf according to the project. Vertically adjustable shelving and the wide side-shelf adjustment range further support equipment placement around the display.

Final Assessment

The Mustang AV MPS-X137UL is a strong match for large-display projects requiring compatibility with 70- to 98-inch TVs, a 300 lb load rating, adjustable height, controlled tilt, and keyed security. Its aluminum and high-grade cold-rolled steel construction, scratch-resistant epoxy powder-coat finish, and range of optional shelf and cover accessories provide a clearly specified foundation for a professional floor display installation.
