10.1" 1280x800 Outdoor Touch Display with Android 8.1 OS

The Mimo MOT-10180CH is a compact commercial display built for outdoor interactive applications where visibility, touch control, and environmental protection matter. Its 10.1-inch LCD presents 1280 x 800 content in a 16:10 format, backed by 1000-nit brightness and an anti-glare, hard-coated surface. An integrated RK3288 processor and Android 8.1 operating system support all-in-one deployment, while the IP65-rated, all-aluminum enclosure is designed for demanding outdoor use and 24/7 applications.

Ideal Use Cases

The combination of a small-format screen, high-brightness panel, and 10-point capacitive touch makes this model suitable for customer-facing installations that require clear information and responsive interaction. Recommended applications include:

• Outdoor interactive digital signage and wayfinding
• Outdoor menu boards with ordering capability
• Amusement parks and stadiums
• Transportation environments
• Outdoor restaurants and kiosks
• Service stations and gas stations

Its compact dimensions allow the display to serve focused applications such as ordering, navigation, status information, and self-service interaction without requiring a large-format installation.

Why Choose This Model

The MOT-10180CH combines an embedded Android platform with the display hardware needed for commercial outdoor deployments. Android 8.1 and the RK3288 processor allow content and applications to run on the integrated platform. The 1000-nit LCD supports clear, crisp visuals in bright and ambient lighting, while a built-in light sensor adjusts brightness during cloudy conditions and at night. This helps maintain an appropriate viewing experience while optimizing power consumption. The operating temperature range of 0°C to 60°C, or 32°F to 140°F, supports use across changing seasonal conditions.

Installation and Integration

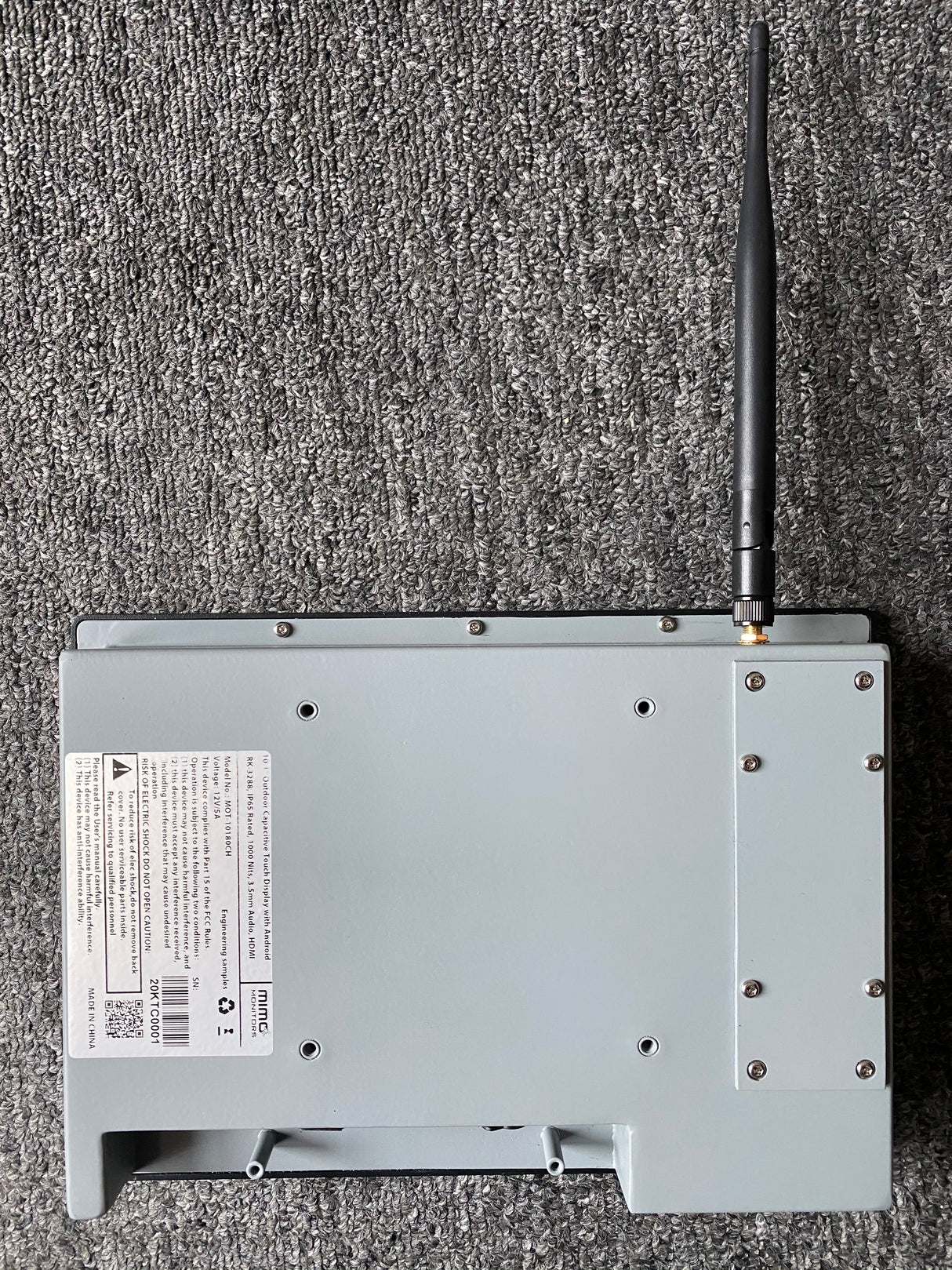

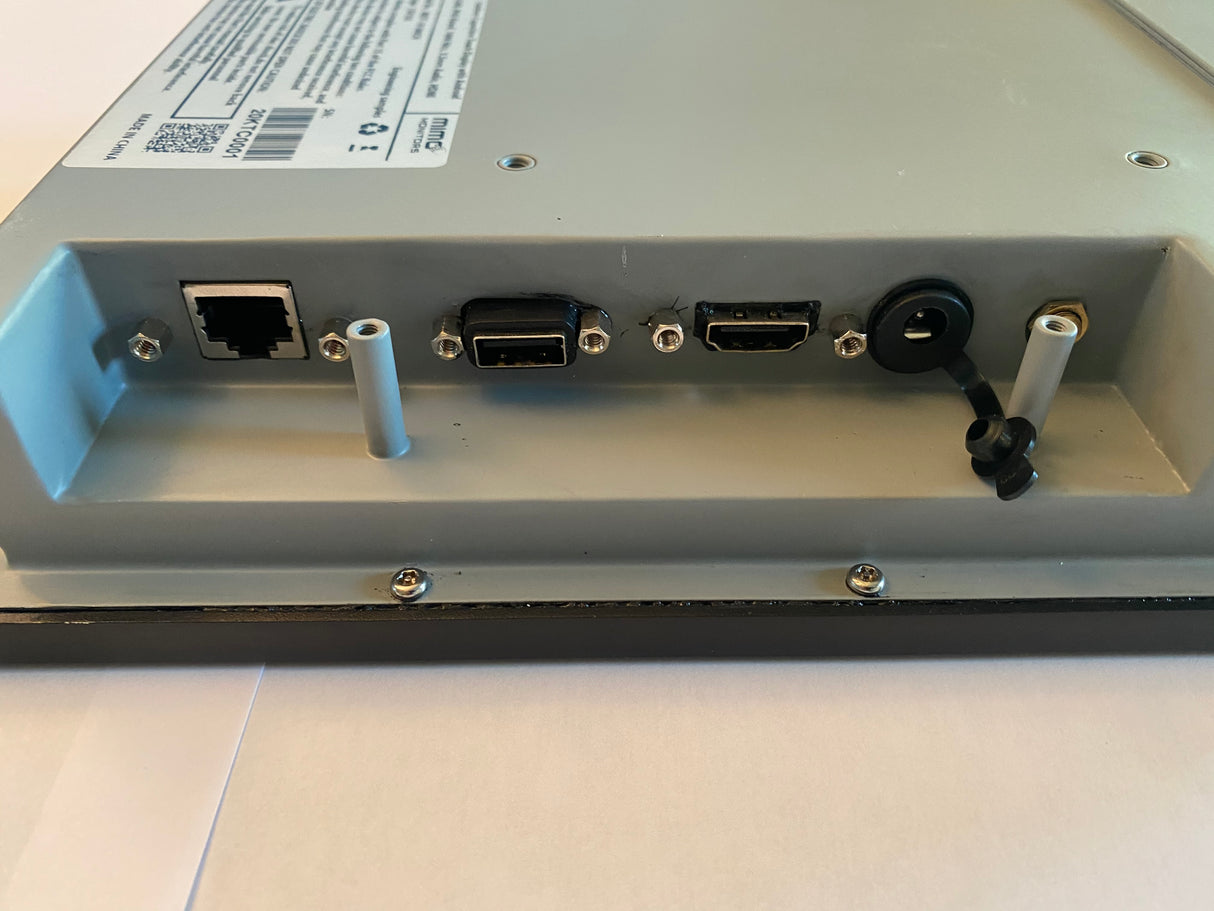

A standard VESA 100 mm mounting interface provides a familiar foundation for integration into kiosks, fixtures, menu systems, and signage structures. The display includes an HDMI input, USB connectivity for touch, and a 3.5 mm audio connection. Windows and Linux HID support is provided for the touch interface when the display is used with a compatible external system. The all-aluminum housing is specifically designed for outdoor 24/7 applications, while the IP65 rating protects against environmental exposure including water, moisture, sand, dust, and insects.

Placement requires careful attention. Android all-in-one displays should not be installed in direct sunlight because internal temperatures may exceed the stated 140°F operating limit, causing the processor to slow down or possibly stop operating. Direct sunlight can also make a touch surface extremely hot and create a risk of fingertip injury. This touch display should therefore be installed in a shaded outdoor area that remains within its specified operating range.

Performance Highlights

The 10.1-inch panel delivers a native 1280 x 800 resolution with a widescreen 16:10 aspect ratio. Product specifications list an 800:1 contrast ratio and 85° viewing angles in each direction. A brightness rating of 1000 cd/m² helps content remain visible under challenging ambient light. The projected-capacitive panel recognizes as many as ten simultaneous touch points, supporting interactive interfaces and multi-touch gestures. Its surface uses a 3H hard coating with anti-glare treatment, while listed power consumption is 40W.

What Makes It Different

This model brings together several capabilities in one compact commercial unit: a high-brightness LCD, 10-point capacitive touch, an embedded Android 8.1 platform, IP65 environmental protection, and an aluminum outdoor enclosure. The ambient light sensor adds automatic brightness adjustment, and the HDMI and USB connections allow the display to integrate with external sources when required. VESA 100 mm compatibility further simplifies incorporation into purpose-built signage, ordering, and wayfinding systems.

Final Assessment

The Mimo MOT-10180CH is a practical choice for shaded outdoor installations that need a compact Android touch display with high brightness and environmental protection. Its 1280 x 800 panel, 1000-nit output, 10-point touch system, RK3288 processor, and commercial mounting and connection options address the core requirements of interactive outdoor signage. Installers should account for the direct-sunlight restriction and maintain the specified operating temperature range when planning any deployment.
