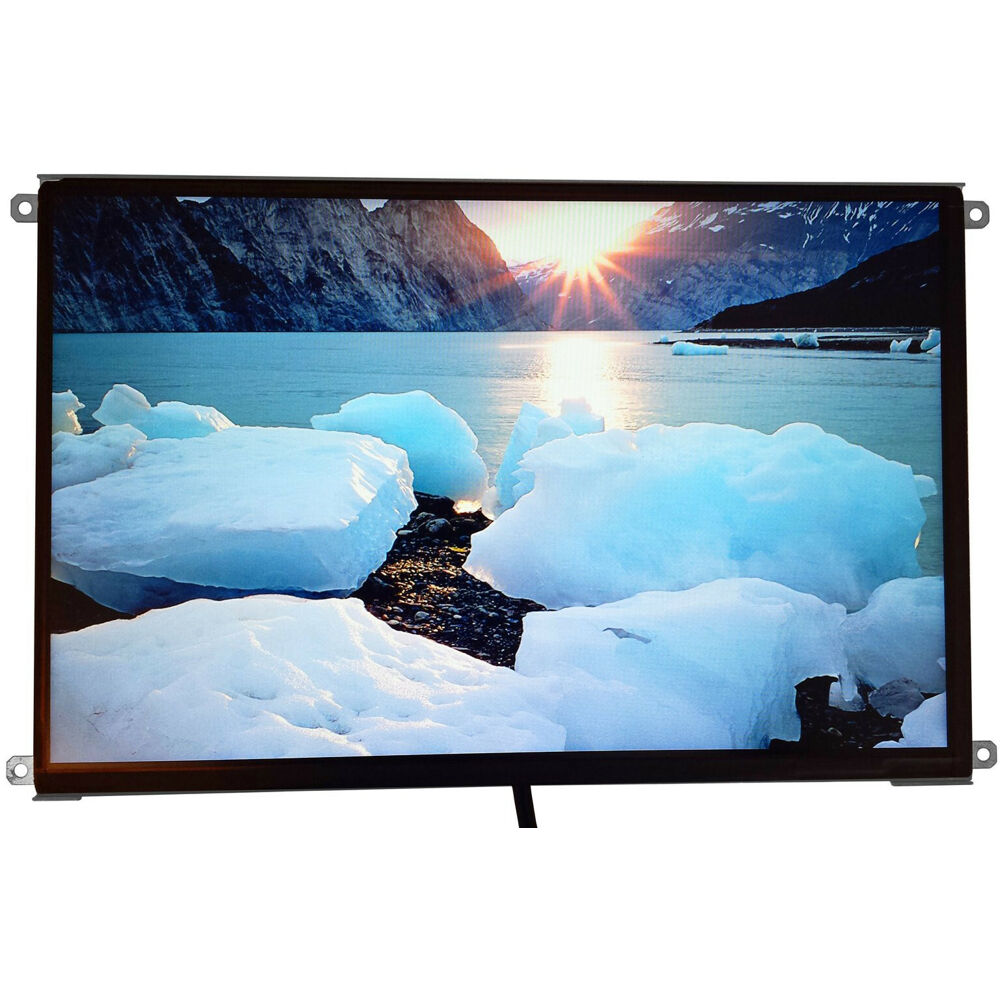

10.1" 1280x800 Open Frame Non-Touch Display, HDMI

Ideal Use Cases

The Mimo UM-1080H-OF is intended for projects that call for a 10.1-inch screen integrated into an open-frame assembly. Its non-touch design suits viewing-focused interfaces where users do not need to enter commands directly through the display, while HDMI video aligns it with systems built around an HDMI source. The compact diagonal and 16:10 image format make it relevant when a larger conventional monitor would not match the available display area. Because this is an open-frame model, it is best considered for projects in which the surrounding structure and final presentation are addressed as part of the overall integration.

Why Choose This Model

The precise model designation is important within the UM-1080 family. The UM-1080H-OF is explicitly identified as the non-touch, HDMI-video, open-frame version. The UM-1080-OF is instead listed with USB video, while the UM-1080CH-OF combines HDMI video with capacitive touch. These distinctions allow buyers to select the required video interface and interaction type without assuming that similarly named models have identical capabilities. For an installation requiring a 1280×800 open-frame screen with HDMI video and no touch functionality, the UM-1080H-OF is the matching listed configuration.

Installation and Integration

Integration planning should begin with the 10.1-inch diagonal display area, 16:10 aspect ratio, and 1280×800 native resolution. The connected source should support the display’s documented HDMI video configuration and native resolution. Because this model is specified as non-touch, the installation does not need to accommodate a touch interface. It is also distinct from the USB-video version of the open-frame display. The listed viewing angles of 85/85/85/85 can help inform screen placement when the image may be observed from different positions. Physical dimensions, weight, mounting hardware, power requirements, and included cables are not stated, so those details should be confirmed before final enclosure or system design.

Performance Highlights

The IPS panel provides a documented 1280×800 pixel format across its 10.1-inch diagonal viewing area. Its 16:10 aspect ratio defines the shape of the available image canvas and should be considered when preparing source content. White luminance is rated at 350 cd/m², while the stated contrast ratio is 800:1. Viewing angles are specified as 85/85/85/85, providing measurable guidance for installations where the viewer may not remain directly centered. Together, these specifications establish a clear performance profile based on panel type, resolution, luminance, contrast, and viewing-angle coverage without relying on unspecified image-processing features.

What Makes It Different

The defining characteristic of this model is its specific combination of a 10.1-inch IPS panel, open-frame construction, HDMI video, and non-touch operation. It is not the capacitive-touch HDMI variant, and it is not the non-touch USB-video variant. That focused configuration is useful when touch capability would be unnecessary and the system is already designed to provide video through HDMI. The exact MPN, UM-1080H-OF, also differentiates it from the UM-1080H desktop or wall-mount model and from other open-frame products in the same family. Matching the complete model number is therefore essential during specification and procurement.

Final Assessment

The Mimo UM-1080H-OF is a purpose-defined open-frame display for integrations that require HDMI video without touch input. Its documented strengths are specific and easy to evaluate: a 10.1-inch IPS panel, 1280×800 native resolution, 16:10 aspect ratio, 350 cd/m² white luminance, 800:1 contrast, and 85/85/85/85 viewing angles. Buyers should use the full model number to avoid confusion with USB-video, capacitive-touch, desktop, or wall-mount variants. When these display and interface requirements match the planned system, the UM-1080H-OF provides the corresponding configuration in the Mimo UM-1080 product family.
