Key Features
Broad Compatibility: Works seamlessly with forward-phase (leading edge) and reverse-phase (trailing edge) dimmers.
Solves Performance Issues: Eliminates common dimming problems like flickering, dropping out, or lights staying on when they should be off.
High Versatility: Supports multiple source types including LED, Halogen, Incandescent, and Low-Voltage Transformers.
Flexible Installation: Designed for load-side installation, wired in parallel with the lighting load.
Compact Design: Fits within a standard 2-gang U.S. wallbox and can be surface or recess mounted.
Voltage: 120 V AC at 50/60 Hz
Power Dissipation: 10 Watts maximum (when the dimmer is at high-end)
Current Rating: 100 ms

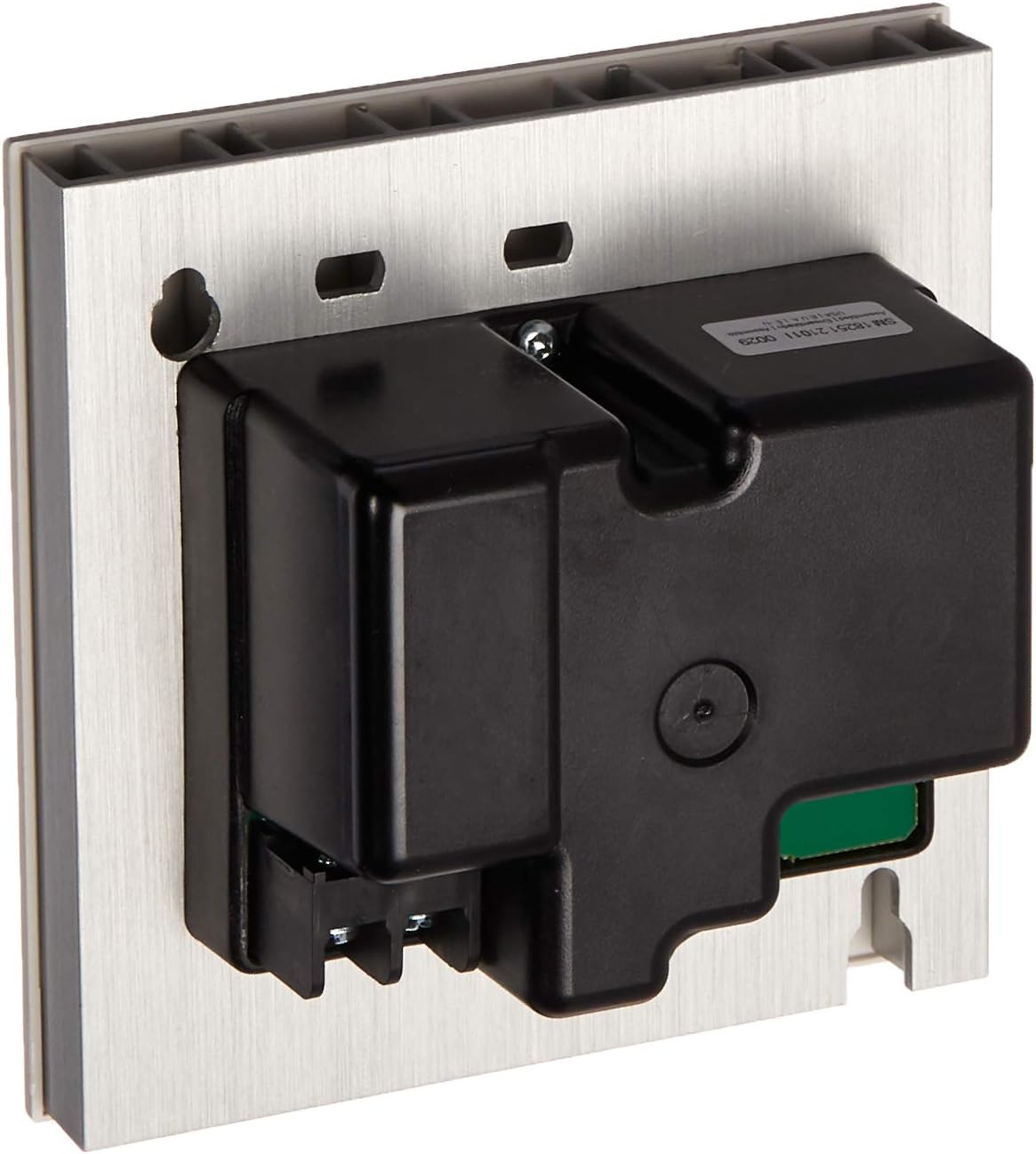

The Lutron LUT-LBX-WH is a synthetic minimum load interface designed to ensure proper dimming performance for low-wattage lighting loads. It presents a simulated load to the dimmer, allowing it to meet its minimum operating requirements even when the actual light bulbs (such as high-efficiency LEDs) draw very little power.
Key Features and Benefits:
-
Broad Compatibility: Works seamlessly with forward-phase (leading edge) and reverse-phase (trailing edge) dimmers.
-
Solves Performance Issues: Eliminates common dimming problems like flickering, dropping out, or lights staying on when they should be off.
-
High Versatility: Supports multiple source types including LED, Halogen, Incandescent, and Low-Voltage Transformers.
-
Flexible Installation: Designed for load-side installation, wired in parallel with the lighting load.
-
Compact Design: Fits within a standard 2-gang U.S. wallbox and can be surface or recess mounted.
Technical Specifications:
-
Voltage: 120 V AC at 50/60 Hz
-
Power Dissipation: 10 Watts maximum (when the dimmer is at high-end)
-
Current Rating: 100 ms
-
Operating Temperature: 32 F to 104 F (0 C to 40 C)
-
Color: White (WH)
Note: This device does not change the approved load types of your dimmer; it only assists in meeting the minimum load requirement for the specific lighting source you are using.
