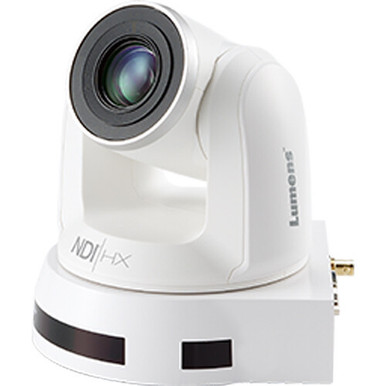

Integrate the white Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x optical zoom into your AV broadcast or IP live production setup for distribution and control over Ethernet network connection. Efficiently capture your next conference or live performance with simultaneous 3G-SDI, HDMI, and NDI video outputs. A 1/2.8" CMOS sensor adds a wide dynamic range, 3D noise reduction, advanced autofocus, and auto white balance to your broadcast. Stream 1080p60 video with low latency to platforms like YouTube, Twitch, or Facebook without the need for additional hardware or software.
Control over the 20x optical zoom and pan and tilt movements can be achieved via NDI tools or hardware controllers thanks to the camera's RS-232, RS-422, and IP serial control compatibility. The device can be powered through Ethernet connection via PoE+ or via the DC input for flexible installation in your preexisting workflow.
Camera Control
- RS-232 and RS-422 support allows for connection to a wide range of products
- NDI, VISCA, VISCAIP, PELCO-D, and ONVIF protocols
- Supports IR remote control
Specifications
Key Specs
Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.16 Megapixel
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1 Second
Optical Zoom Ratio 20x
External Recording Modes
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Broadcast Output NTSC
IP Streaming
H.264, MJPEG, NDI|HX, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p
Supported Control Protocols
IP
NDI
Pelco-D
VISCA
PoE Support PoE+ 802.3at
Mounting 1x 1/4"-20 Female for Tripod
Imaging
Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.16 Megapixel
IR Cut Filter No
Built-In ND Filter No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1 Second
Precise Scan Rate Control No
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1 Lux
Flip / Mirror Support Image Flip, Mirror (Vertical)
White Balance 2800 to 10,000K Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 5.3 to 110mm
Optical Zoom Ratio 20x
Field of View
Horizontal: 57°
Vertical: 32.1°
Diagonal: 65.4°
Maximum Aperture f/1.6 to 3.8
Minimum Focus Distance
Wide: 59.1" / 1.5 m
Telephoto: 59.1" / 1.5 m
Video Capture
External Recording Modes
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Broadcast Output NTSC
IP Streaming
H.264, MJPEG, NDI|HX, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p
Control
Presets 128
Move Speed
Pan: 300°/sec
Tilt: 300°/sec
Movement Range
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light Yes
Supported Control Protocols
IP
NDI
Pelco-D
VISCA

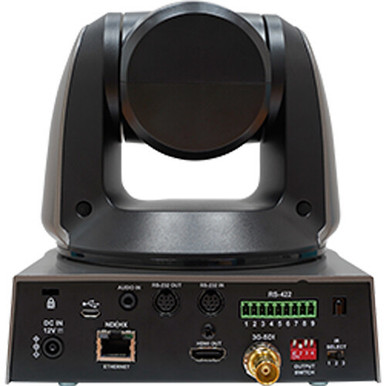

Interface
Video I/O
1x BNC (3G-SDI) Output
1x HDMI 1.0 Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block 9-Pin (RS-422)
1x RJ45 Control Input
1x USB-C Input
Built-In Speaker No
Power
PoE Support PoE+ 802.3at
Power I/O 1x Barrel (12VDC) Input
Power Consumption
Power Supply: 17 W
PoE: 18.5 W
General
Mounting 1x 1/4"-20 Female for Tripod
Certifications FCC Part 15 Class A, CE, ICES-003
Dimensions (W x H x D) 6.9 x 7.3 x 7.4" / 174 x 186 x 187 mm
Weight 4.4 lb / 2 kg (Body Only)
Packaging Info
Package Weight 8.08 lb
Box Dimensions (LxWxH) 12.4 x 10.8 x 10.6"
