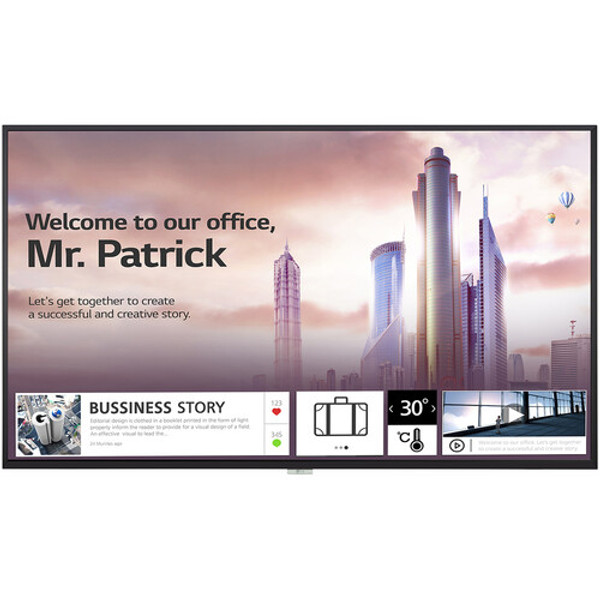

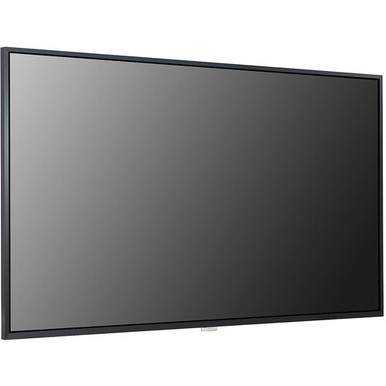

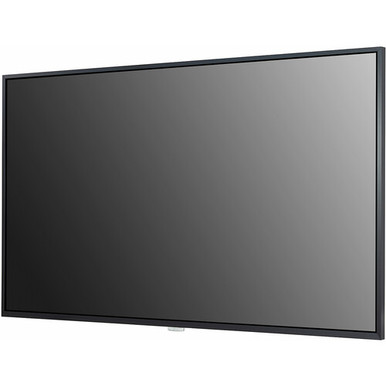

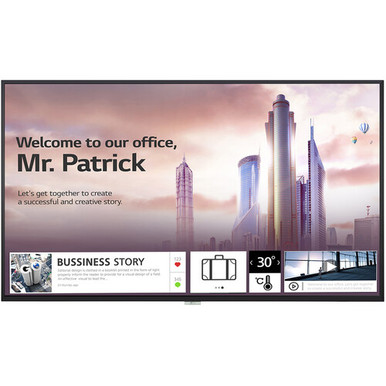

LG 65UH5F-H 65" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display

(No reviews yet) Write a Review

SKU:: 65UH5F-H
UPC:: 719192639331
MPN:: 65UH5F-H
Condition:: New
Shipping:: Free Shipping

$2,015.00

Current Stock:

Quantity:

Frequently bought together:

Description
Warranty Information

Description

LG UH5F Overview

Conduct productive meetings or advertise your business or product with the LG UH5F-H 65" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display. The onboard webOS platform provides a variety of tools to meet your signage and communication needs. The display features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 500 cd/m² helps improve visibility in high-brightness environments, such as a retail store.

The UH5F-H features a slim bezel design, a narrow overall depth, and a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, or the included remote control.

Key Features

4K UHD (3840 x 2160) Native Resolution
Up to 500 cd/m² of Brightness
DisplayPort, DVI-D, 3x HDMI Inputs
Built-In Wi-Fi & Ethernet Connectivity
webOS 4.1 Smart Platform
Portrait and Landscape Orientation
IP5X Dust-Resistant Rating
DisplayPort Cable & IR Remote Included

Clear View with Non-Glare Coating

Viewers can be distracted by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

4K UHD Resolution

With resolution that is four times that of Full HD, Ultra HD makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle enabled by LG's IPS panel provides clear content without distortion.

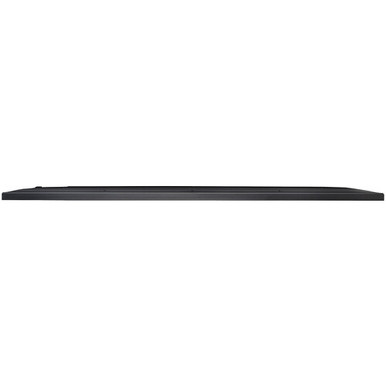

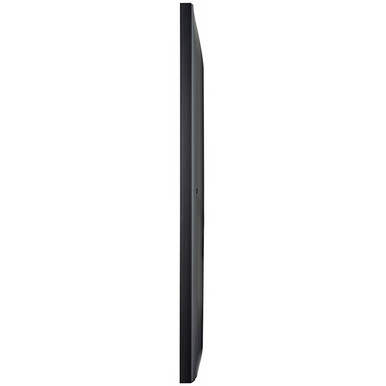

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Detachable Logo and Built-In Speaker

This series is equipped with a new transparent logo to help it blend into its surroundings. Also, this logo is removable, offering flexibility during installation. Content will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

IP5X Certified Design

The IP5X dust-proof certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's viewing comfort. The UH5F-H series supports the installation with 30 degrees of downward tilt in environments up to 86°F, 50% humidity.

Auto Screen Rotation

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so a manual rotation setup process isn't required. The direction of display and background content will be already set when you first turn on the display.

Fine Adjustment

The UH5F-H series is equipped with a horizontal sensor – a digital level – which shows users how the device is tilted, so that it can be precisely installed.

High Performance with webOS

The UH5F-H series has a built-in quad-core system-on-chip (SoC) that can execute several tasks at once while providing smooth content playback without the need for a media player. Utilizing the SoC, LG's webOS smart signage platform has a convenient graphical user interface and simple app development tools.

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via its USB port. That means there is no cost to purchase or maintain additional software or media players for creating value-added solutions.

Compatible with A/V Control Systems

The UH5F-H series has been certified Crestron Connected for high compatibility with professional A/V controls to achieve seamless integration and network-based control, boosting business management efficiency.

Compatible with Cisco Video Conference Systems

The UH5F-H is compatible with Cisco conferencing systems that offer powerful HDMI-based control for a smarter video conference experience that avoids wasted time setting up the picture or input settings.

HDCP Compliance

HDCP 2.2 on HDMI 1 & 2 and DisplayPort
HDCP 1.4 on all HDMI and DVI-D
HDCP 1.3 on DisplayPort

Additional Features

Built-in handle
OPS slot
Temperature sensor
Auto brightness sensor
Local Key Operation
Local Contents Scheduling
Group Manager
USB Plug & Play
Fail over
Booting Logo Image
No Signal Image
RS-232C Sync
Local Network Sync
PIP
4-image PBP
Screen Share
Video Tag (4)
Play via URL
External Input Rotation
Gapless Playback
Tile Mode (up to 15 x 15)
Setting Data Cloning
SNMP
ISM Method
Auto Set ID
Status Mailing
Control Manager
Crestron Inside
Smart Energy Saving
PM Mode
Wake on LAN
Beacon
HDMI-CEC
SI Server Setting
webRTC
Pro:Idiom
409 BTU/Hr (typical), 563 BTU/Hr (max)
SuperSign CMS with SuperSign Control, Control+, SuperSign WB, SuperSign Media Editor, and Signage 365 Care

LG UH5F Specs

Display

Screen Size (Diagonal)	65"
Resolution	3840 x 2160
Panel Type	IPS-Type LCD
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
Color Gamut	95% Rec. 709
Brightness	500 cd/m² (Typical)
Viewing Angle (H x V)	178 x 178°
Aspect Ratio	16:9
Contrast Ratio	1100:1
Dynamic Contrast Ratio	1,000,000:1
Response Time	8 ms (GtG)
Refresh Rate	60 Hz
Backlighting Technology	Edge LED

Connectivity

Primary Connectivity Location	Display
Input Ports	3 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio
Output Ports	1 x DisplayPort – Audio, Video 1 x 1/8" / 3.5 mm – Audio
USB Ports	1 x USB (Version Unspecified) Type-A
Ethernet Ports	1
Control	IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output
Wi-Fi	Built-in
Number of OPS/Expansion Slots	1

General

TV Tuner	No
Display Orientation	30° Downward Angle, Landscape, Portrait
HDCP Support	Yes
Maximum Multiple Display Configuration	15 x 15
Lighting Lifespan	50000 Hours

Surface

Surface Treatment	Anti-Glare
Haze Level	28%

Audio

Built-In Speakers

Yes

Hardware

Operating System	webOS 4.1
RAM	8 GB

Electrical

Power Consumption	Typical: 120.0 W Maximum: 165.0 W Standby: 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 80%
Certifications	CE, ENERGY STAR, FCC-A, as per Manufacturer

Physical

Wall Mounting	300 x 300 mm
IP Rating	IP5X
IR Sensor	Yes
Bezel Thickness	9.9 mm (Right/Top/Left) 14.4 mm (Bottom)
Duty Cycle	24 Hours / 7 Days
Dimensions	57.2 x 33.2 x 1.6" / 1453.3 x 844.0 x 39.9 mm
Weight	62.3 lb / 28.3 kg

Packaging Info

Package Weight	75 lb
Box Dimensions (LxWxH)	64.7 x 43 x 6.5"
