Key Features
Borderless design with 0.9mm even panel bezel
Built-in quad-core SoC allows you to play various content formats and eliminates the need for an external media player
Using its built-in SoC, each display plays its video tile without lag for synchronized content playback
webOS 2.0 platform provides easy and convenient tools to create contents
Through VIC (Video Wall Image Creation) technology; color and brightness differences are compensated for by an algorithm within the circuitry that gives the panels the same characteristics, enabling the video wall to maintain a consistent white balance from panel-to-panel
Image-improvement algorithm can adjust to images moving within the boundaries of the bezels, enabling viewing experience from screen-to-screen
LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware
Guide bracket is an attachment that ensures the video wall remains flat

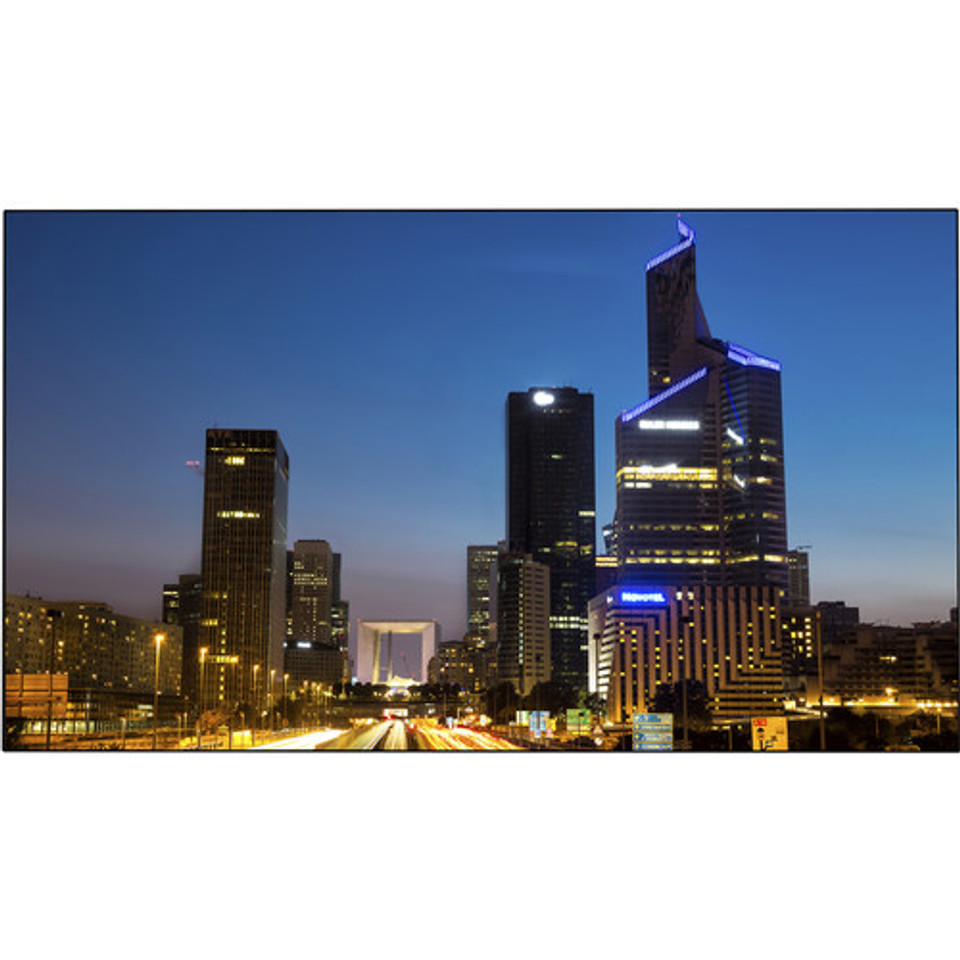

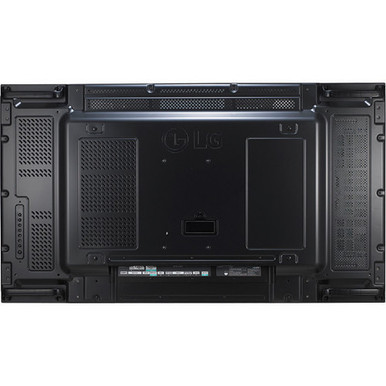

LG 55VH7B-A Overview
The 55″ 1080p Video-Wall Monitor from LG is suitable for placement in video-walls. It is engineered with efficient management tools such as quad-core SoC (System on Chip) which plays various types of content without the need for an external media player. This business-ready monitor features a 55″ IPS LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor’s 700 cd/m2 brightness rating and 1400:1 contrast ratio showcases its ability to handle light and dark on-screen images. For viewing flexibility, it can also accommodate portrait and landscape viewing orientations.
As a digital-signage-capable display, this commercial monitor is suitable for use in areas such as museums, airports, galleries, and large retail spaces. This display is equipped with DVI-D, DisplayPort, and HDMI ports for connecting a variety of video sources. Daisy chaining is also supported via DisplayPort connectivity. Furthermore, the monitor is VESA 600 x 400 compliant for wall mounting.
- Borderless design with 0.9mm even panel bezel
- Built-in quad-core SoC allows you to play various content formats and eliminates the need for an external media player
- Using its built-in SoC, each display plays its video tile without lag for synchronized content playback
- webOS 2.0 platform provides easy and convenient tools to create contents
- Through VIC (Video Wall Image Creation) technology; color and brightness differences are compensated for by an algorithm within the circuitry that gives the panels the same characteristics, enabling the video wall to maintain a consistent white balance from panel-to-panel
- Image-improvement algorithm can adjust to images moving within the boundaries of the bezels, enabling viewing experience from screen-to-screen
- LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware
- Guide bracket is an attachment that ensures the video wall remains flat
- Eight control buttons
- Temperature sensor, tile mode (up to 15 x 15), natural mode@tile mode, energy saving, smart energy saving, file play with USB, internal memory (8GB, system 4GB + available 4GB), Wi-Fi dongle ready, USB cloning, content scheduling, fail over (USB, RGB, DVI, HDMI, internal memory)
LG 55VH7B-A Specs
Display
|
Screen Size (Diagonal)
|
55″
|
|
Resolution
|
1920 x 1080
|
|
Panel Type
|
IPS-Type LCD
|
|
Brightness
|
700 cd/m²
|
|
Viewing Angle (H x V)
|
178 x 178°
|
|
Aspect Ratio
|
16:9
|
|
Contrast Ratio
|
1400:1
|
|
Dynamic Contrast Ratio
|
500,000:1
|
|
Response Time
|
8 ms
|
Connectivity
|
Input Ports
|
1 x HDMI Audio, Video
1 x DVI-D Video
1 x DisplayPort Audio, Video
1 x 1/8″ / 3.5 mm Audio
1 x 15-Pin VGA Video
|
|
Output Ports
|
1 x DisplayPort – Audio, Video
1 x 1/8″ / 3.5 mm – Audio
|
|
USB Ports
|
1 x USB 2.0
1 x USB 3.1 / USB 3.2 Gen 1
|
|
Ethernet Ports
|
1
|
General
|
Display Orientation
|
Landscape, Portrait
|
Surface
Electrical
|
Power Consumption
|
Typical: 220.0 W
Economy Mode: 110.0 W
|
Environmental
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
|
Operating Humidity
|
10 to 80%
|
Physical
|
Wall Mounting
|
600 x 400 mm
|
|
Bezel Thickness
|
0.9 mm (Bottom)
0.9 mm (Right)
0.9 mm (Top)
0.9 mm (Left)
1.8 mm (Bezel-to-Bezel)
|
|
Dimensions
|
47.6 x 26.8 x 3.4″ / 121.0 x 68.2 x 8.6 cm
|
|
Weight
|
41 lb / 18.6 kg
|
