4x4 Seamless AV Matrix Switcher/MultiScaler

The Kramer VSM-4x4A is a 4×4 seamless AV matrix switcher and multi-scaler built for systems that require flexible routing and clean source changes. Its frame-to-frame switching produces a clean video cut without glitches. Beyond conventional matrix operation, the unit can serve as a 2×2 or 1×4 video-wall driver or provide dual and quad multi-viewer configurations. It supports HDMI resolutions with deep color, up to eight audio channels, and individual HDCP and EDID settings for each port.

Ideal Use Cases

The VSM-4x4A is suited to installations that need to select and distribute content from four AV inputs through a four-output matrix. Its alternative display modes also make it useful where the same system must support more than basic source-to-display routing.

• Four-input, four-output AV matrix routing systems.
• 2×2 video-wall configurations requiring content across four displays.
• 1×4 video-wall arrangements using a single row or column of four display positions.
• Dual multi-viewer applications that present two viewing layouts.
• Quad multi-viewer applications that bring four sources into a combined viewing arrangement.
• HDMI-based systems that require deep-color support and as many as eight audio channels.

Why Choose This Model

The defining benefit of this model is its combination of seamless matrix switching and multiple display-layout functions. During an input change, the VSM-4x4A switches from frame to frame and creates a clean video cut without glitches. This behavior is particularly relevant when visible interruptions during source selection would distract an audience or interfere with monitoring.

The unit also consolidates several operating roles. It can function as a 4×4 matrix switcher, a video-wall driver in either 2×2 or 1×4 form, or a dual or quad multi-viewer. Per-port HDCP and EDID settings provide a port-specific way to configure content-protection and display-identification behavior.

Installation and Integration

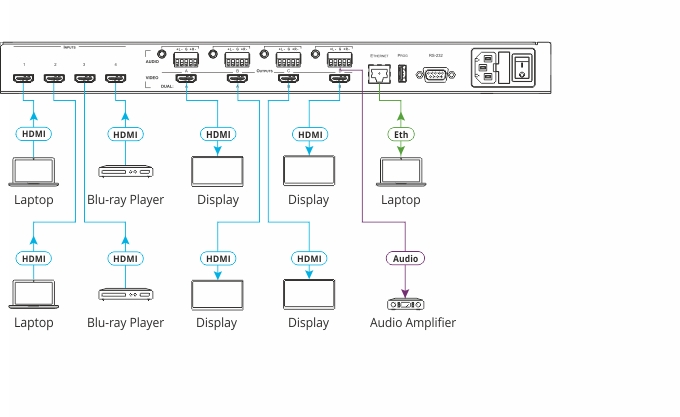

System planning begins by selecting the required operating role. Standard matrix applications can use the 4×4 routing configuration, while multi-display installations can be organized around the stated 2×2 or 1×4 video-wall modes. Applications requiring multiple sources within viewing layouts can use the dual or quad multi-viewer functions.

The VSM-4x4A supports HDMI resolutions with deep color. Each connected source and destination should be configured for the HDMI format required by the system. The per-port EDID controls allow display-identification settings to be handled at the individual port level, while the per-port HDCP controls address content-protection settings for each connection. Audio integration can accommodate up to eight channels, subject to the selected source material and connected equipment.

Performance Highlights

• Seamless 4×4 AV matrix switching.
• Clean frame-to-frame video cuts without glitches.
• 2×2 and 1×4 video-wall driver modes.
• Dual and quad multi-viewer operation.
• Support for HDMI resolutions with deep color.
• Support for up to eight audio channels.
• Individual HDCP settings for each port.
• Individual EDID settings for each port.

These capabilities focus the VSM-4x4A on stable source transitions and adaptable presentation layouts. The source data does not specify a maximum HDMI resolution, so resolution compatibility should be evaluated using the documented requirements of the complete AV system.

What Makes It Different

A conventional matrix switcher is centered on routing, but the VSM-4x4A adds video-wall and multi-viewer roles to its 4×4 matrix foundation. An installation can therefore be designed for direct matrix selection, a four-display wall, or dual and quad multi-view layouts using the same model. Its clean-cut switching method further distinguishes the unit by changing inputs from frame to frame without glitches.

Per-port HDCP and EDID configuration adds another practical distinction. Instead of applying only a general setting across the system, the VSM-4x4A provides settings for individual ports. This is useful when an installation includes multiple connected sources and displays with different identification or content-protection requirements.

Final Assessment

The VSM-4x4A is a focused choice for AV systems that need four-by-four routing together with flexible multi-display presentation. Its 2×2 and 1×4 video-wall modes, dual and quad multi-viewer functions, HDMI deep-color support, eight-channel audio capability, and per-port HDCP and EDID settings provide a specific set of integration tools. Most importantly, its seamless frame-to-frame switching delivers clean source changes without glitches.
