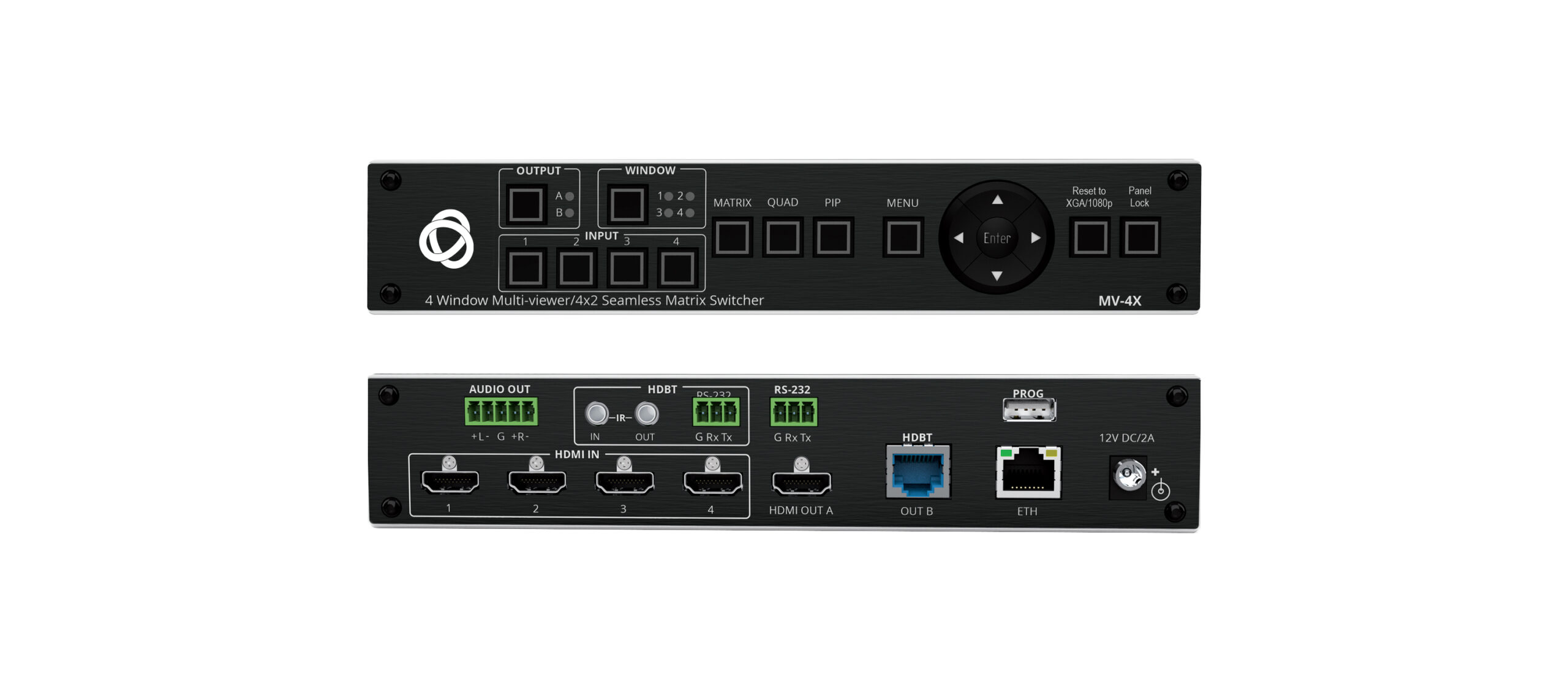

4 Window Multi-viewer/4×2 Seamless Matrix Switcher

The Kramer MV-4X combines four-source multi-viewing with seamless 4×2 matrix switching in a single HDMI system. Integrated scaling and flexible window controls allow multiple sources to be monitored together or selected individually. It supports video up to 4K@60Hz 4:4:4, 18Gbps bandwidth, HDR10, and LPCM audio up to 7.1 channels at 192kHz. HDMI and HDBT outputs provide two display paths, while compatibility with HDCP 1.x and 2.3 supports protected content workflows.

Ideal Use Cases

The MV-4X is designed for environments where several video sources need to remain visible, accessible, or quickly switchable. In a control room, operators can place four HDMI sources into a quad view for simultaneous monitoring. Conference rooms can use PiP or PoP layouts to combine primary presentation material with an additional source. Classrooms can display multiple feeds at once or move a selected input to a full-screen view.

Both outputs support the available individual-source and multi-window viewing options, making the unit suitable for installations that require HDMI and HDBT output connections. Users can choose among full-screen presentation, quad display, picture-in-picture, picture-outside-picture, or conventional matrix routing according to the task.

Why Choose This Model

The defining advantage of the MV-4X is its ability to operate as either a four-window multi-viewer or a seamless 4×2 matrix switcher. This provides two distinct presentation approaches without changing devices. Multi-window operation keeps several inputs visible, while matrix mode routes sources to the two outputs with a zero-time video cut.

Integrated scaling technology supports the creation and adjustment of windowed layouts. Input and window routing, position, and size can be managed through the available control interfaces. Chroma-keying and logo overlay functions add further flexibility when a presentation requires keyed content or an identifying graphic over the displayed video.

Installation and Integration

The unit accepts four HDMI sources and provides two output types: HDMI and HDBT. Ethernet connectivity includes embedded webpages for browser-based management, while RS-232 supports integration with compatible control systems. Front-panel OSD buttons provide direct local operation when network or serial control is not required.

These control methods provide access to source selection as well as input and window routing, position, and size. Installers can therefore choose local front-panel control, Ethernet management, or RS-232 according to the room design and operating requirements. No mounting dimensions, power requirements, or included accessories are specified in the supplied product information.

Performance Highlights

Video support reaches 4K at 60Hz with 4:4:4 chroma sampling, backed by an 18Gbps bandwidth specification. HDR10 support is also listed. These capabilities apply alongside the product’s integrated scaling and multi-window functions, allowing high-resolution sources to be used in full-screen or combined layouts.

For audio, the MV-4X supports LPCM signals up to 7.1 channels and a sampling rate of 192kHz on its inputs and outputs. HDCP compatibility covers both HDCP 1.x and HDCP 2.3 standards. Together, these specifications address high-resolution video, multichannel PCM audio, and protected HDMI content within the stated operating modes.

What Makes It Different

Many routing applications require either source switching or simultaneous source monitoring. The MV-4X places both functions in one model. Its quad mode shows all four HDMI sources together, while PiP and PoP provide alternative arrangements for emphasizing one source while retaining another on screen. Any of the four sources can also be displayed individually in full-screen mode.

When multi-window presentation is not needed, the seamless 4×2 matrix option provides zero-time video cuts between routed sources. Chroma-keying and logo overlay extend the visual feature set beyond basic routing. The combination of adjustable window position and size, integrated scaling, two output types, and three control approaches gives operators direct control over how sources are arranged and delivered.

Final Assessment

The Kramer MV-4X is a focused choice for control rooms, conference rooms, and classrooms that need to view up to four HDMI sources or switch them seamlessly across HDMI and HDBT outputs. Its 4K@60Hz 4:4:4 support, 18Gbps bandwidth, HDR10 compatibility, multichannel LPCM audio, flexible window modes, and front-panel, Ethernet, and RS-232 control provide a clearly defined feature set for multi-source display and routing applications.
