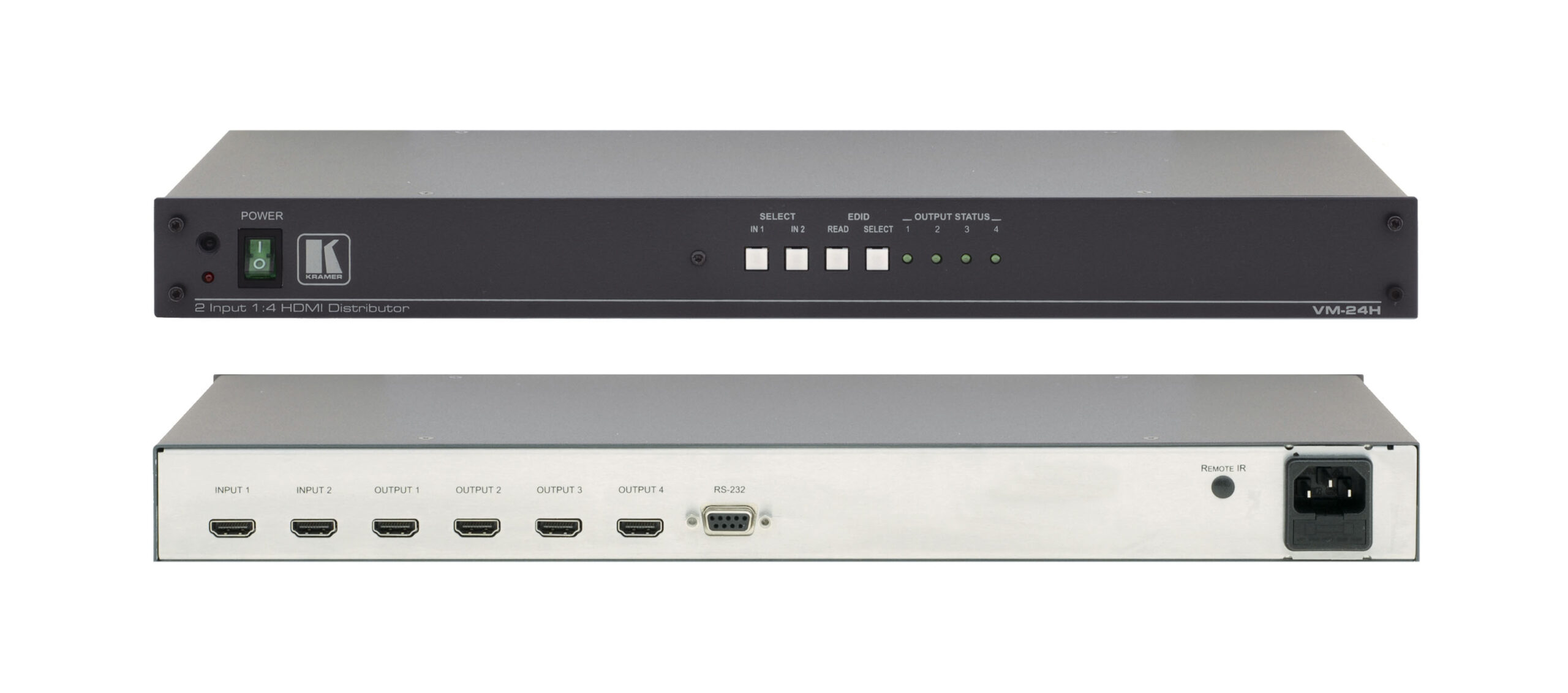

2x1:4 HDMI Distribution Amplifier

Ideal Use Cases

The VM-24H is intended for an HDMI system that needs both source selection and four-way signal distribution in one unit. It fits a layout with two available HDMI sources where one source must be chosen and shown through four identical outputs. That makes the signal path straightforward: choose either input, then feed the selected program to four connected HDMI destinations. The model is especially relevant when a system design calls for the same selected HDMI signal at every output rather than independent content on each connection.

Why Choose This Model

Its defining advantage is the combination of a two-input switch and a 1:4 distribution amplifier. The VM-24H accepts one of two selectable HDMI input signals, then reclocks and equalizes that chosen signal before distribution. Reclocking and equalization are part of the unit's stated operation, so the product does more than provide a simple choice of source and duplicate the connection. With four identical outputs, the output arrangement remains consistent and clearly defined. The published 6.75Gbps bandwidth and 60Hz refresh rate provide concrete reference points when matching the unit to the rest of an HDMI installation.

Installation and Integration

Integration centers on a 2x1:4 topology. Connect the two intended HDMI sources to the selectable inputs, connect up to four HDMI destinations to the outputs, and use the unit to select which incoming signal is distributed. Because all four outputs are described as identical, this model should be specified where a single selected source is meant to appear across the output set. It is not described as a matrix switcher, and the supplied data does not indicate independent source selection per output.

Before installation, compare the source signal and downstream equipment with the listed 60Hz refresh rate and 6.75Gbps bandwidth. The listing SKU is VM-24H(VM-24HDMI)/110V, identifying this as the 110V version. No mounting format, dimensions, weight, supported HDMI version, HDCP details, or included accessories are provided in the source data, so those items should be confirmed separately when they are important to the project.

Performance Highlights

The signal-handling sequence is concise: the VM-24H selects one of two HDMI inputs, reclocks and equalizes that signal, and distributes it to four outputs. Its bandwidth is listed at 6.75Gbps, while the stated refresh rate is 60Hz. These specifications should be treated as the primary performance boundaries supplied for this listing. The source data does not specify resolution, HDR capability, color format, audio format, HDMI generation, or HDCP version; the product should therefore be evaluated by the explicit HDMI distribution, refresh-rate, and bandwidth information rather than assumptions about unlisted formats.

What Makes It Different

The VM-24H brings two normally separate routing tasks into one defined workflow. A basic 1:4 distributor begins with only one source, while this model provides two selectable source inputs before its four-way output stage. Once an input is selected, the unit applies reclocking and equalization and sends the result to four identical outputs. This makes the distinction easy to understand when comparing models: the VM-24H is not only a four-output HDMI distribution amplifier; it is a switchable 2x1:4 design with stated 6.75Gbps bandwidth and 60Hz operation.

Final Assessment

The VM-24H is a focused choice for an HDMI signal path requiring a choice between two sources and simultaneous distribution of the selected signal to four identical outputs. Its core value is clearly documented: selectable dual inputs, four outputs, signal reclocking, signal equalization, 60Hz refresh rate, and 6.75Gbps bandwidth. For buyers comparing distribution amplifiers, those details define the use case without relying on unlisted capabilities. Choose this 110V SKU when that exact input-to-output arrangement and the published performance figures align with the planned system.
