Dynamic Audio Performance for Architectural Installs

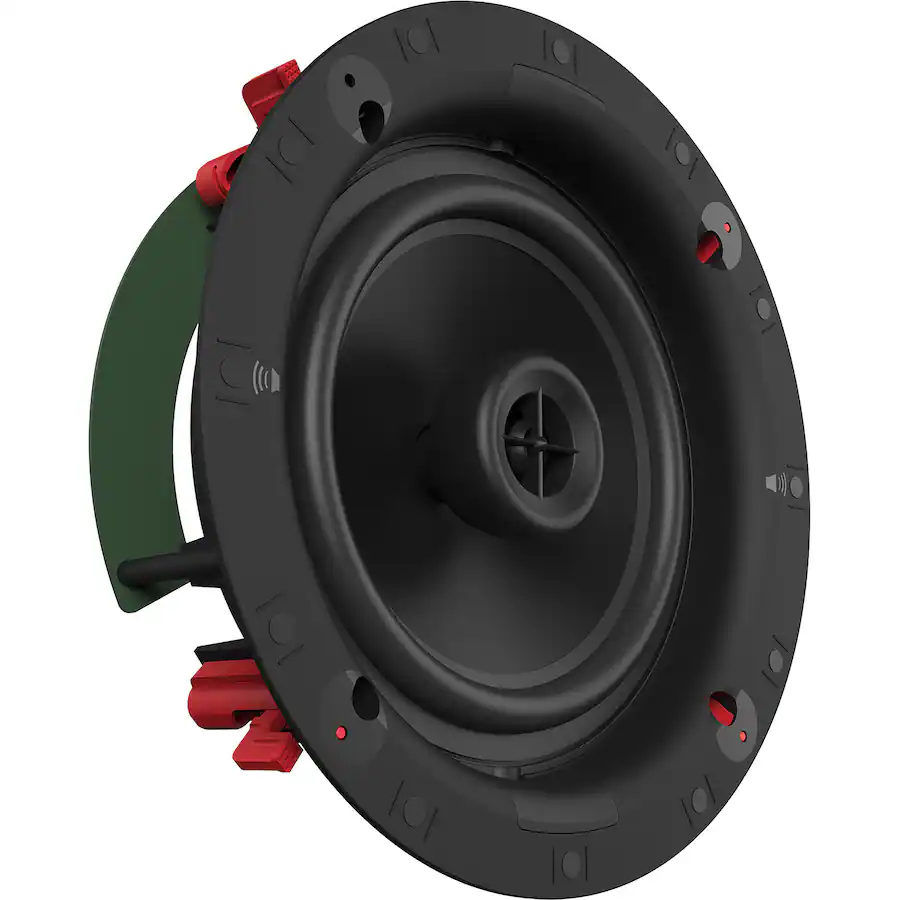

The Klipsch DS-180CDT brings the legendary power, detail, and efficiency of Klipsch acoustics into a stealthy, flush-mount in-ceiling enclosure. Designed specifically for custom home theater surrounds, height channels (Dolby Atmos®/DTS:X®), and multi-room distributed audio systems, this 8-inch speaker delivers full-range sound with rich bass response and clear, articulate dialogue.
Controlled Dispersion Technology (CDT®)
Equipped with Klipsch’s proprietary Controlled Dispersion Technology, the DS-180CDT solves the common challenge of fixed-direction ceiling speakers. Both the 8-inch Polypropylene woofer and the 1-inch Silk Dome Tractrix® Horn tweeter can independently pivot up to 15 degrees in any direction. This allows installers to aim high and mid frequencies directly at the seating area, optimizing imaging and soundstage clarity regardless of room layout.
SkyWaltz™ Bezel-Less Magnetic Grille
Designed to stay virtually invisible, the DS-180CDT features a premium, low-profile SkyWaltz™ magnetic steel grille. The rimless design eliminates bulky plastic bezels, sitting completely flush against the drywall. The paintable grille allows you to match any ceiling color seamlessly for zero aesthetic compromise.
Fast, Secure Installation with SkyHook™ Cinch System
Save time on every job with Klipsch’s toolless SkyHook™ Cinch Installation System. The automatic mounting dog legs engage when inserted into the cutout, clamping securely to the ceiling with minimal effort while reducing installation time by up to 75%.
Key Specifications
| Feature |
Specification |
| Speaker Type |
2-Way In-Ceiling Speaker |
| Low-Frequency Driver |
8" (20.32 cm) Polypropylene Woofer |
| High-Frequency Driver |
1" (2.54 cm) Silk Dome Tweeter mated to a Round Tractrix® Horn |
| Aiming Technology |
Controlled Dispersion Technology (CDT) – Pivots up to 15° |
| Frequency Response |
73 Hz – 20 kHz (± 3dB) |
| Power Handling |
50 W RMS / 200 W Peak |
| Sensitivity |
94 dB @ 2.83 V / 1 m |
| Nominal Impedance |
8 Ω Compatible |
| Grille Type |
Magnetic, Paintable, Bezel-Less SkyWaltz™ Steel Grille |
| Cutout Dimensions |
9.8" (24.9 cm) Diameter |
| Mounting Depth |
4.45" (11.3 cm) |
