Frequency Range 77Hz – 20kHz +/- 3dB
High Frequency Driver 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix Horn
Low Frequency Driver 6.5 (16.51cm) Polypropylene Woofer
Sensitivity 91 dB @ 2.83V / 1m
Coverage Angle 100
Power Handling 50W RMS / 200W RMS
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 9.0 W x 14.1 H x 3.9 D (22.8cm H x 35.8cm W x 9.8cm D)
Mounting Depth 3.78 (9.6cm)
Cutout Dimensions 13 H X 8 W (33.0cm H X 20.3cm W)
Product Weight 7.2lbs (3.25kg)
Included Magnetic Grille
Installation Kit IK-650-W II (Sold Separately)
Fire Rated Enclosure ME-650-W (Sold Separately)
Built From 2017
Patented Sky Hook Tool-Free Installation System Bezel-Free Magnetic Grille SPECIFICATIONS
Frequency Range 77Hz 20kHz +/- 3dB
Frequency Range High Frequency Driver 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix Horn
Frequency Range Low Frequency Driver 6.5 (16.51cm) Polypropylene Woofer Sensitivity 91 dB @ 2.83V / 1m Coverage Angle 100
Frequency Range Power Handling 50W RMS / 200W RMS Impedance 8 Ohm Compatible Enclosure Type ABS/Infinite Baffle Finish
Frequency Range Black Baffle/Frame, White Paintable Grille Product Dimensions 9.0 W x 14.1 H x 3.9 D (22.8cm H x 35.8cm W x 9.8cm D) Mounting Depth 3.78 (9.6cm) Cutout Dimensions 13 H X 8 W (33.0cm H X 20.3cm W) Product Weight 7.2lbs (3.25kg) Included Magnetic Grille Installation Kit
IK-650-W II (Sold Separately) Fire Rated Enclosure ME-650-W (Sold Separately) Built From 2017 HORN-LOADED PERFORMANCE
Frequency Range of our premium architectural and box speaker lines, the all new

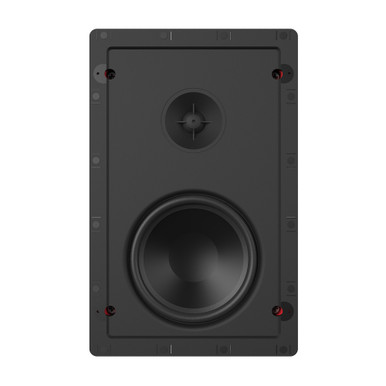

Frequency Range Klipsch Designer series brings true Klipsch power and performance. With a 6.5 Polypropylene woofer and a 1 Silk Dome tweeter mated to a round Tractrix horn, the DS-160W brings dynamic, powerful,
Frequency Range detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.

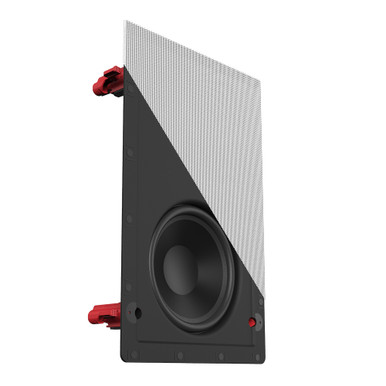

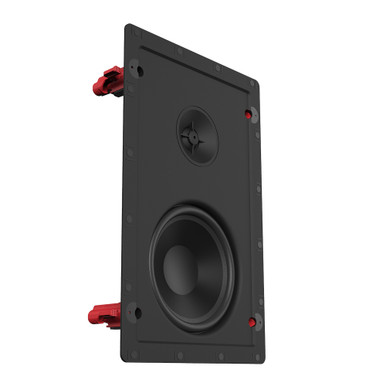

The exclusive installation system engages the dog legs automatically
Frequency Range when the speaker is inserted into the cutout hole with a preset
Frequency Range clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

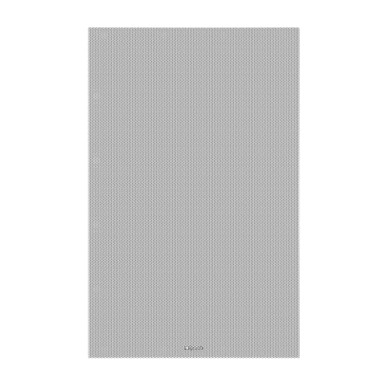

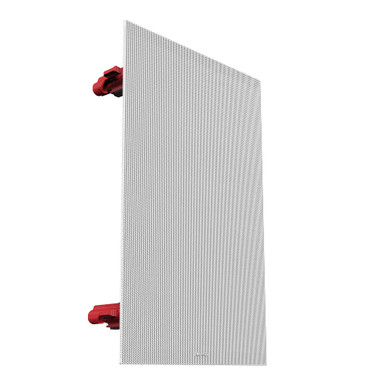

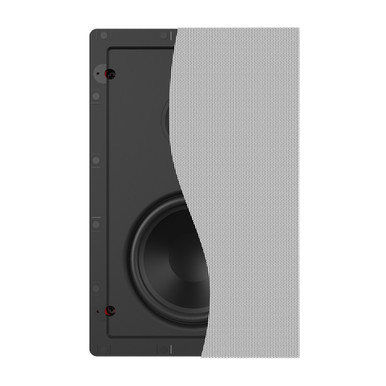

Frequency Range ALL NEW, BEZEL-FREE MAGNETIC GRILLE
Frequency Range A completely redesigned powercoated magnetic steel grille
Frequency Range eliminates the bezel for seamless, pristine integration into the living space.
SKU DS160W
