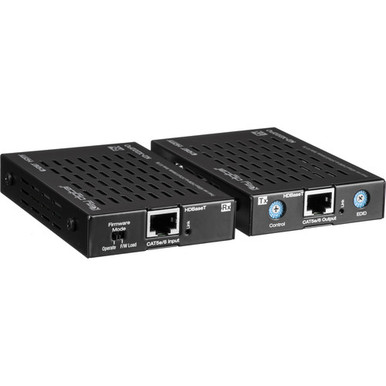

Key Digital KD-X222PO HDBaseT 4K HDMI Extender Set with PoE, HDR & HDCP 2.2

Key Digital KD-X222 Overview

The HDBaseT 4K HDMI Extender Set from Key-Digital is an HDCP 2.2 compliant product that extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0) signals up to 150′ using a KD-CAT6STP1X Super Cat 6a shielded cable, or up to 125′ using a single third-party Cat 5e/6 cable. 1080p/60, 1920 x 1200, 3D signals are extended up to 250′ via a single KD-CAT6STP1X Super Cat 6a shielded cable, or up to 230′ using a single third-party Cat 5e/6 cable. In addition to HDMI video and audio signals, this extender set carries IR or RS-232 for controlling remotely located equipment. This unit features power extension from the transmitter to the receiver with Power over HDBaseT, so the receiver unit does not require a power supply.

HDR

More life-like images through a greater range of luminance levels

4K/UHD Resolution

Supports signals up to 4096 x 2160 60 Hz [4:2:0] 8-bit, 4096 x 2160 30 Hz [4:2:2] 12-bit, and 4096 x 2160 30 Hz [4:4:4] 8-bit

Deep Color Support

Up to UHD/4K 30 Hz [4:2:2] 12-bit or 60 Hz [4:2:0] 8-bit

3D

Support for standard 3D stereoscopic signal formats

Low-Profile

Super-slim chassis design

HDMI and HDCP Licensing

Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD [4:2:0] 8-bit at 60 fps

EDID Control

Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx

Hot Plug Detection Control

Enables integrator to choose if active signal voltage is forced to connected input devices

Full Buffer System

Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID control handshake, and Hot Plug control

IR Sensor

Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight IR from remote without external IR connecting block

Up/Down IR

Two channels of IR enable control to/from devices connected to Tx and Rx units

RS-232

Bidirectional control to/from Tx and Rx unit on Phoenix connector

Rotary Switch RS-232 Control Mode

Provides control of Tx unit as well as connectivity status

Lossless Compressed Digital Audio

Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio

CEC Support

For inter-device control between input and output HDMI channel

I2C Communication

EDID and HDCP authentication to Display and Source

Control System Support

Fully controllable by all RS-232 supported control systems via open API: Compass Control, AMX, Crestron, KNX, RTI, Savant, URC, Leviton, etc.

Key Digital KD-X222 Specs

Inputs	Transmitter: 1 x HDMI, 1 x IR Receiver: 1 x Cat 5e/6 UTP/STP, 1 x IR
Outputs	Transmitter: 1 x Cat 5e/6 UTP/STP, 1 x IR/RS-232 Bidirectional Receiver: 1 x HDMI, 1 x IR/RS-232 Bidirectional
Input DDC Signal	5 V p-p (TTL)
Input Video Signal	1.2 V p-p
Regulation	CE, RoHS, WEEE
Enclosure	Black metal
Power	12 VDC / 2 A, 100-240 VAC, 50-60 Hz, interchangeable head with screw-in connector
Dimensions	4.1 x 2.8 x 0.9″ (10.4 x 7.1 x 2.2 cm)
Weight	0.75 lb (340 g)

Packaging Info

Package Weight	2 lb
Box Dimensions (LxWxH)	7.1 x 4.1 x 3.2″
