It’s showtime. The all-in-one JBL Bar 300 turns your movies and TV shows into a true experience, and lifts your games to the next level. MultiBeam™ and Dolby Atmos® technologies deliver vivid 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. When you’re ready to unwind with music or a podcast, take your pick of over 300 streaming services and enjoy them using AirPlay, Alexa MRM, or Chromecast built-in™.

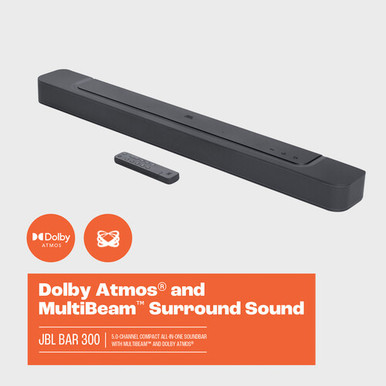

DOLBY ATMOS® AND MULTIBEAM™ SURROUND SOUND
Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in the room, without the need for extra surround speakers.
BUILT-IN WI-FI WITH AIRPLAY, ALEXA MULTI-ROOM MUSIC AND CHROMECAST BUILT-IN™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
260W OUTPUT POWER
With 260 watts of total output power, the JBL Bar 300 transforms your movies, music and games into immersive sound experiences.
Specifications
General Specifications
Power supply 100 – 240V AC, ~ 50/60Hz
Networked standby power < 2.0 W
Operating temperature 0°C – 45 °C
Audio Specifications
Total speaker power output (Max @THD 1%) 260W
Soundbar transducer 4x (46×90)mm racetrack drivers, 2x 0.75″ (20mm) tweeters
Frequency response 50Hz – 20kHz (-6dB)
Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D) 820 x 56 x 103.5 mm / 32.3’’ x 2.2’’ x 4.1’’
Soundbar weight 2.5kg/5.5 lbs
Packaging dimensions (W x H x D) 1060 x 120 x 170 mm/ 41.7″ x 4.7″ x 6.7″
Packaging Weight 4.1 kg / 9 lbs
Control and Connection Specifications
USB port Type A
USB rating 5V DC, 0.5A
Supporting file format MP3
MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate 16 – 48 kHz
MP3 bitrate 80 – 320 kpbs
Bluetooth version 5.0
Bluetooth profile A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range 2400 MHz – 2483.5 MHz
Bluetooth transmitter power <15 dBm (EIRP)
Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power < 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
Video Specifications
HDMI video input 1
HDMI video output (with Enhanced Audio Return Channel, eARC) 1
HDMI HDCP version 2.3
HDR pass through HDR10, Dolby Vision
What’s in The Box?
1 x Soundbar
Remote control with 2 x batteries
Power cords (up to 4pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket with screws
Quick start guide
Safety Instruction and Warranty Card
Wall mount template
