HPE JW752A Aruba 7220 4P 10GBASE-X SFP+2 Dual Pers Mobility Controller

The HPE Aruba 7220 Mobility Controller (JW752A) is engineered to tackle the most demanding enterprise wireless and BYOD (Bring Your Own Device) network requirements. Powered by an eight-core central processor, it has the capacity to support up to 24,576 concurrent mobile devices while performing stateful firewall policy enforcement at an exceptional 40 Gbps. By centralizing control functionality, the 7220 streamlines network management, improves access point utilization, and secures client roaming across extensive enterprise networks.

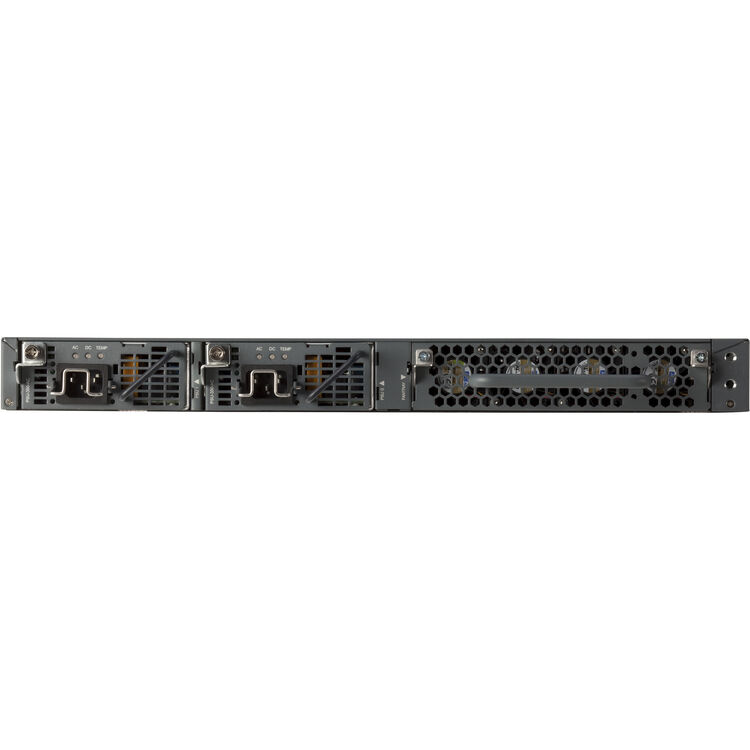

This 1U rack-mountable appliance features a highly flexible interface array, including four 10GBASE-X SFP+ ports and two dual-personality (10/100/1000BASE-T or SFP) ports, providing the scalability required by modern infrastructures. It runs the ArubaOS network operating system and integrates advanced management tools like zero-touch provisioning, the Aruba Policy Enforcement Firewall, AppRF technology for granular application visibility, and Adaptive Radio Management (ARM). To ensure continuous operations in mission-critical environments, the controller is designed with high availability in mind, supporting hot-swappable redundant power supplies and field-replaceable fan trays.

Key Specifications

• Max Access Points: 1,024
• Max Concurrent Devices: 24,576
• Firewall Throughput: 40 Gbps
• Active Firewall Sessions: Over 2 million (2,015,291)
• Ports: 4x 10GBASE-X (SFP+), 2x dual-media (1000BASE-X or 10/100/1000BASE-T), 1x USB 2.0
• Form Factor: 1U Rack-mountable
• Power: Includes one 350W AC power supply (supports dual redundant hot-swappable setups)
