Description
About Crown Audio CDI 2X300

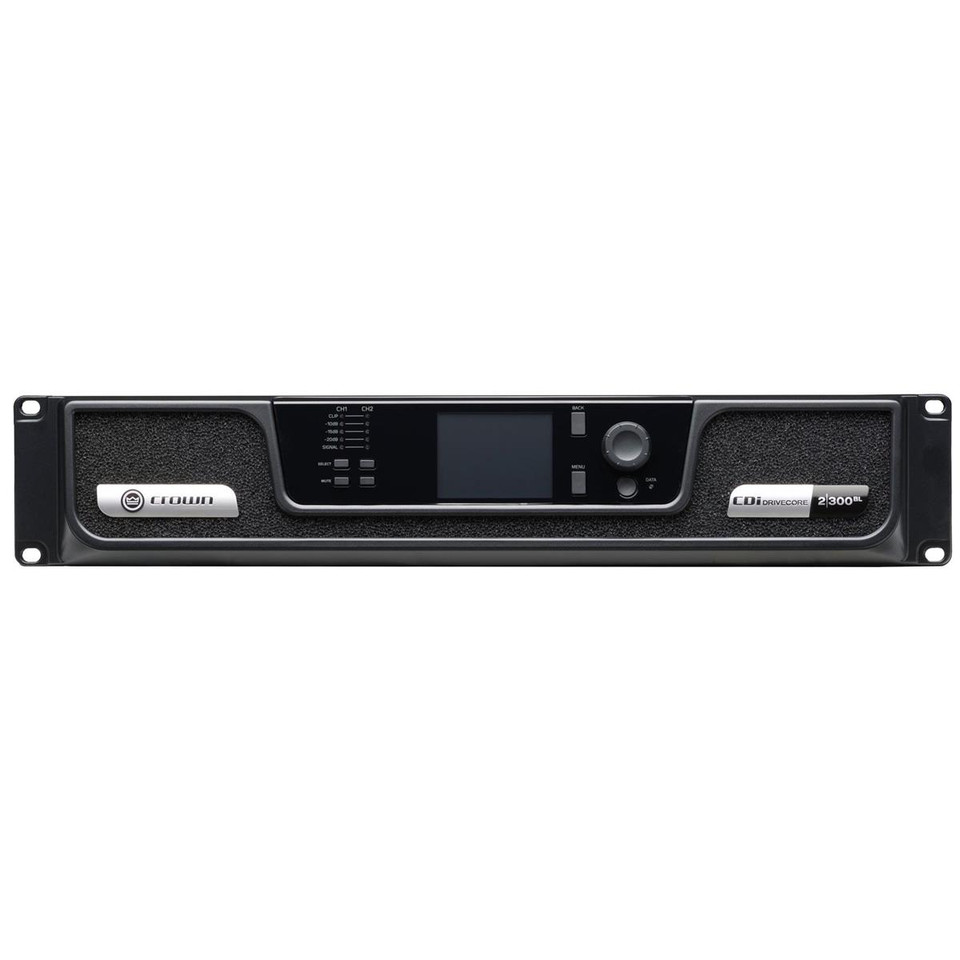

Let the CDi 2X300BL DriveCore Series 2-Channel 2x300W Power Amplifier revolutionize your audio experience. This advanced, high-quality amplifier is the next step in audio technology, offering an unparalleled blend of superior performance, comprehensive features, and cost-effectiveness.
Drawing on technology from Crown Audio's flagship Installed Sound amplifier, the Crown DriveCore Install series, the CDi DriveCore 2|300BL is engineered to deliver exceptional functionality in a wide array of small to medium-sized installations, from bustling restaurants to retail stores.
This powerful 2-channel amplifier is equipped with network control and monitoring capabilities, high-level Digital Signal Processing (DSP), and a user-friendly front-panel interface. It's designed to drive up to 100Vrms speaker loads without the need for a transformer, making it a versatile choice for various audio setups.
The 2|300BL also features BLU link, a cutting-edge technology that enables the transmission and reception of channels over HARMAN's digital audio BUS. This innovative feature enhances the amplifier's connectivity and flexibility.
The CDi DriveCore line comes pre-loaded with JBL speaker tunings, simplifying and speeding up the installation process. Crown's proprietary DriveCore technology minimizes the number of components within each amplifier, reducing variability, enhancing reliability, and delivering stunning audio fidelity from a highly efficient design.
Through HARMAN's HiQnet Audio Architect software, the CDi DriveCore can be seamlessly controlled, configured, and monitored via a standard TCP/IQ network. The on-board DSP allows for custom configuration and includes integrated features such as an Input Router, Input Delay of up to 1000ms, 8-band Input Parametric EQ, Crossover, 8-band Output Parametric EQ, Output Delay of up to 100ms, and a LevelMAX Limiter.
Each output channel is capable of providing either 70V or 100V for high impedance applications, and the amplifier can be fully configured using the intuitive front-panel interface. The combined GPIO/AUX Port allows for preset recall, channel muting, fault monitoring, power on/off control, and more.
Experience the power and versatility of the CDi 2X300BL DriveCore Series 2-Channel 2x300W Power Amplifier, designed to deliver superior audio performance in a wide range of applications.
Crown Audio CDI 2X300 Features
- Exclusive multi-patented DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption, and improved reliability
- BLU link digital audio transport - Up to 256 Channels of digital audio over Category 5e cabling
- Supports configuration and control using HiQnet Audio Architect
- Monitoring and control over TCP/IP
- Color LCD and front panel user interface for amplifier configuration, control, and monitoring
- Programmable GPIO (general purpose input/output) control port
- Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAXTM limiters)
- Support for importing of FIR filter coefficients
- 20 device presets - 1 factory and 19 user
- 96kHz/32-bit floating-point signal processing
- Universal power supply with PFC for reduced current draw and industry-leading efficiency
- Power saving modes
- Remote power off - Sleep mode activated via AUX port
- 70Vrms/100Vrms direct drive
- Each channel independently configurable for low z or high z operation
- Advanced protection circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage, and high-frequency overload
- Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
- Included speaker tunings for various JBL speaker models
- Support for BSS Audio Soundweb Contrio Ethernet wall controllers
Specifications
BLU link:- Yes
Channels:- 2
Network Control:- Yes
DSP:- Yes
Control Port Yes
Sensitivity:- 0.7V RMS (for full rated power at 8 ohms)
Rated Power Output:-
Dual-Mode
150W @ 2 Ohm
300W @ 4 Ohm
300W @ 8 Ohm
150W @ 16 Ohm
Bridge Mono Mode
300W @ 4 Ohm
600W @ 8 Ohm
600W @ 16 Ohm
Load Impedance Dual Mode:- 2 - 16 Ohms; 70Vrms and 100Vrms
Load Impedance Bridge Mono:- 4 - 16 Ohms; 140Vrms and 200Vrms
Analog Input Signal to Noise Ratio:- > 104dB (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)
THD:- 0.35% (full rated power, 20 Hz - 20 kHz)
Frequency Response:- +/-0.5dB (8 Ohm, 20 Hz - 20 kHz)
Crosstalk 20 Hz to 1 kHz :- > 80dB (below rated power)
Dimensions (W x H x D) :- 19 x 3.5 x 12.25" (48.3 x 8.89 x 31.1cm) (depth not including 1.3" front panel protrusion)
