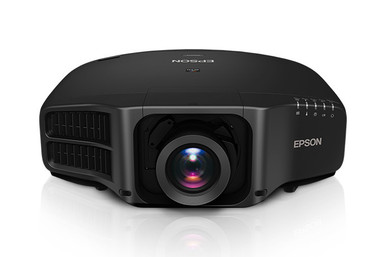

Epson PowerLite Pro PL-G7805NL XGA 3LCD Projector

Ultra bright large-venue projector with optional lenses and HDBaseT

The Pro G7805NL large-venue projector delivers ultra bright, uncompromising image quality and XGA resolution. Offering high Color Brightness, Epson 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the sleek, black G7805NL features 8000 lumens of color brightness and 8000 lumens of white brightness. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI® and DVI-D inputs. It also offers ten optional interchangeable lenses with powered lens shift and lens memory. Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

High Color Brightness with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% Balanced Color Brightness and White Brightness*. Delivering 8000 lumens of color brightness and 8000 lumens of white brightness, the PowerLite Pro G7805NL uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Projection System: High-aperture Epson 3-chip 3LCD technology
Native Resolution: XGA (1024 x 768)
Color Brightness: 8000 lumens
White Brightness: 8000 lumens

Bright and Colorful
Features 8000 lumens of color brightness (color light output) and 8000 lumens of white brightness (white light output).
XGA Resolution
1024 x 768 resolution
HDBaseT
Combines HDMI, ethernet and RS-232 into one cable
Advanced Edge Blending
Get seamless panoramic, multi-screen edge blending on horizontal or vertical walls, with curved surface and corner wall support.
Optional Lenses
Interchangeable lens options with varying ranges for optimal placement and flexibility
Portrait Mode
Allows you to turn the projector 90 degrees – great for digital signage, fashion shows, art galleries and museums

• High Color Brightness and reliable performance — 3LCD, 3-chip technology
• One measurement of brightness is not enough — look for both high color brightness and high white brightness.
  The PowerLite Pro G7805NL has:
  Color Brightness: 8000 lumens
  White Brightness: 8000 lumens
• Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
• Ten optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (sold separately)
• Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI, DVI-D, VGA and 5-BNC, for easy integration with any system
• Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
• Web-based remote management — control and monitor projector status via a Web browser
• Multi-PC Projection — connect up to 50 Windows, Mac, iOS or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator function)
• Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen
• Professional installation features — full 360-degree installation flexibility, including Portrait Mode
• Epson Warranty — Three-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

Eco Features

• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay™ Transport Partner

Specifications Projector:

---

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness – Color Light Output: 8000 lumensWhite Brightness – White Light Output: 8000 lumensAspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 400 W UHELamp Life:

• Normal mode: Up to 3000 hours
• ECO mode: Up to 4000 hours

Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.44 – 2.32Size – projected distance: 50″ – 300″Keystone Correction:

(For Standard Lens)
• Horizontal: ±30 degrees
• Vertical: ±45 degrees

Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:

---

Pixel Clock, Horizontal, Vertical:Pixel Clock

• 13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

• 15 KHz – 92 KHz

Vertical

• 50 Hz – 85 Hz

General:

---

Temperature: 32° to 113° F (0° to 45° C)Weight: 28.4 lb (with standard lens)Security:

• Security cable hole
• Lens lock
• Kensington® lock provision,

Projection Lens:

---

Type: (For Standard Lens) Powered focus / zoomF-number: (For Standard Lens) 1.70 – 2.30Focal Length: (For Standard Lens) 24.0 mm – 38.2 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.6xLens Shift:(For Standard Lens)

• Vertical: ±67 degrees
• Horizontal: ±30 degrees

Projector Details:

---

Display Performance:

• NTSC: 480 line
• PAL: 576 line

(depends on observation of the multi-burst pattern)

Input Signal:

• NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
• Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

Interfaces:

• HDBaseT x 1
• DVI-D x 1
• HDMI x 1
• Computer: D-sub 15 pin x 1
• Component Video: BNC x 1
• Audio-in: Mini stereo x 3
• Audio Out x 1
• Network: RJ-45 x 1, 100 Mbps Serial: RS-232c
• Hardwire remote jack x 1
• Monitor Out: D-sub 15 pin x 1

Fan Noise:

• Normal mode: 39 dB
• ECO mode: 31 dB

Projector Dimensions:

---

Including feet: With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)Excluding feet and lens: 20.67 x 16.73 x 7.28 (W x D x H)

Remote Control:

---

Features: Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:Right / Left:

• Front: ±60 degrees
• Rear: ±30 degrees

Upper / Lower:

• Front: ±20 degrees
• Rear: +10 to +50 degrees

Power:

---

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

• Normal mode:601 W
• ECO mode: 498 W
• Communication on: 2.0 W standby
• Communication off: 0.5 W standby
