Epson V11H868020 LightScene EV100 2000-Lumen WXGA Laser 3LCD Projector (White)

Epson Lightscene EV100 Overview

Enjoy bright, vibrant images in a variety of settings with the white Epson LightScene EV100 2000-Lumen WXGA Laser 3LCD Projector. Its 2000 lumens of color and white brightness, combined with its 2,500,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The projector’s 1280 x 800 native resolution helps ensure that images and text are clear at most viewing distances.

The LightScene EV100 features a spotlight design to help it blend in, and an included ceiling mount lets you hang it wherever you want to project signage or artwork, making it suitable for use in commercial signage, retail, showrooms, museums, and more. It has an HDMI input for connecting a traditional source device and an SD card slot for local multimedia playback. An IR remote control is included, as is a ceiling mount and fall-prevention hardware.

Key Features

• Color & White Brightness of 2000 Lumens
• WXGA (1280 x 800) Native Resolution
• 1.38 to 2.19:1 Throw Ratio
• Built-In Wi-Fi & Ethernet Connectivity
• HDMI Input, SD Card Slot
• Spotlight Design
• Edge Blending Technology
• Includes Ceiling Mount & Remote Control

Laser Light Source for Long Life

The laser light source is designed to last up to 20,000 hours for virtually maintenance-free operation. The sealed optical engine helps further mitigate the need for maintenance.

High Dynamic Contrast Ratio

The 2,500,000:1 dynamic contrast ratio helps provide deep blacks and bright, vivid colors.

Edge Blending

Use multiple projectors to overlap images; edge blending prevents bright spots where the overlap occurs for seamless projection.

Projection on Non-Standard Surfaces

The LightScene EV100 can project onto curved surfaces or corners.

Integrated Lighting and Digital Display

Project dynamic, experiential content to engage audiences in retail, showrooms, museums, and hospitality and event spaces.

Digital Signage Capable

Illuminate and project onto virtually any surface or material for digital art, commercial signage, and décor applications.

Designed to Blend-In Discreetly

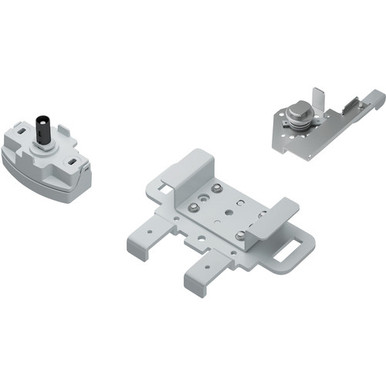

The sleek, spotlight design helps the projector blend into its surroundings, offering vertical and horizontal rotation with flexible mounting on floors, walls, or ceilings. It can also mount to lighting tracks (with optional hardware) or floorstanding (with optional hardware).

Remote Management and Control Tools

Control and manage the projector remotely with Epson’s web-based application or with Crestron, Art-Net, and more.

Programmable Design

The projector includes templates, effects, color filters, and customizable options. The playlist and playback functions allow for seamless content management for single or multiple LightScene projectors.

Flexible Positioning

1.58x powered optical zoom and powered focus let you install the projector in either large or small spaces.

Enhanced Connectivity

The LightScene EV100 has HDMI, wired and wireless LAN, and an SD card slot for direct content storage when you need it.

Additional Features

• Recyclable design
• RoHS compliant
• Enterprise Level Security Encryption
• Remote control of brightness level, A/V Mute, focus, zoom, volume, spotlight, HDMI, LAN, SD card, keystone, pattern, menu, and effects

Epson Lightscene EV100 Specs

Image Display

Display System	3-Chip Polysilicon TFT LCD
Native Chip Resolution	1280 x 800 (WXGA)
Max Brightness	White: 2000 Lumens Color: 2000 Lumens
Aspect Ratio	Native: 16:10
Dynamic Contrast Ratio	2,500,000:1
Color Depth	8-Bit (16.78 Million Colors)

Lens

Focus	Manual Powered
Lens	f/1.51 – 1.92 (f = 18.2 – 28.4 mm)
Optical Zoom	Powered: 1.58x
Throw Distance	34.646 – 249.606″ / 88 – 634 cm
Throw Ratio	1.38 to 2.19:1
Projection Size	30 – 133″ / 76.20 – 337.82 cm

Features

Keystone Correction	Manual-Vertical: ± 45° Manual-Horizontal: ± 40°
Digital Zoom	1.4x
Ceiling Mountable	Yes
Projection Tilt Option	Yes

Input/Output Connectors

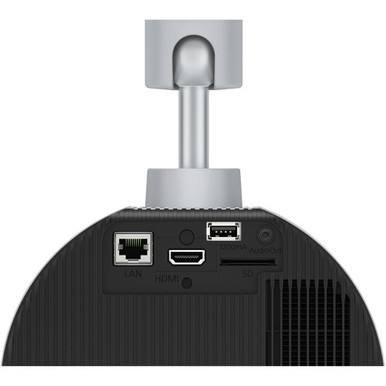

Inputs/Outputs	1 x HDMI (HDMI Type-A) Audio, Video Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Power Output 1 x USB 2.0 (Mini-USB) Service Input
Memory Card Slot	1 x SD (Unspecified Type)

Hardware

Wireless LAN / Wi-Fi

Yes, Built-in

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 173 W Medium Brightness: 118 W Standby Mode (Lamp Off): 2 W
Operating Temperature	41 to 104°F / 5 to 40°C
Weight	11.00 lb / 4.99 kg Projector 4.2 lb / 1.91 kg Ceiling Mount
