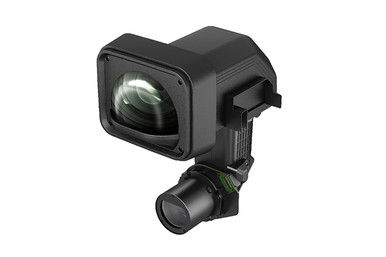

Ultra short-throw lens designed for select Epson projectors.

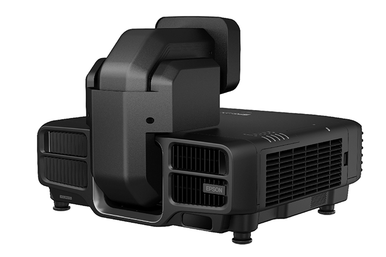

Project supersized images using the ELPLX02 ultra short-throw lens with select Epson Pro L Series projectors¹, 9,000 lumens or higher. Featuring a 0.35 throw ratio and zero offset, this versatile lens is the ideal solution for installation in narrow spaces and rear-projection applications. Plus, its wide lens shift range offers even more flexibility when needed.

• Ideal in space-constrained applications — ultra short-throw lens delivers large-size images from a short distance
• Installation flexibility — 0.35 throw ratio, plus zero offset (negative offset with Pro L1000 Series projectors)
• Versatile — ideal solution for installation in narrow spaces, on low ceilings and in rear-projection applications
• Positioning flexibility — wide lens shift range
• Bright, larger-than-life images virtually anywhere — project in tight locations that were previously not an option for projection applications
• Compatible — supports select Epson interchangeable lens projectors¹, 9,000 to 20,000 lumens
• Supported screen size — 100″ to 500″
• F-number — 1.9
• Wide lens shift — Vertical: +45% to +70% (H Center) Horizontal: -15% to +15% (V Center) (Powered)
  4K-UHD = Vertical: +45% to +68% (H Center) Horizontal: -10% to +10% (V Center) (Powered)
• Focal length — 8 mm
• Ideal for dynamic displays — facilitates front projection from above and rear projection from below the floor surface for dynamic window displays and other immersive experiences
