Key Features
With the RLM-W6’s three-chip DLP color quality, your brand is depicted just the way you want it in your company’s lobbies and entrance hall
For auditoriums and other large rooms, Barco’s RLM-W6 offers a light output of 6,000 lumens, which means that presentations will be clearly visible from the first to the last row

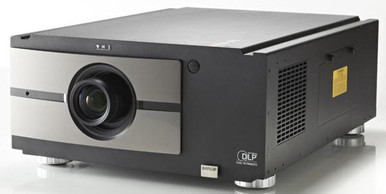

Barco RLM-W6
Green and ergonomic 6000-Lumen projector
In meeting rooms and boardrooms, the RLM-W6’s WUXGA (1920×1200) resolution makes sure you and your colleagues see all important details at once. With the WUXGA resolution, you can show full HD video content simultaneously with banners, tickers or subtitles.
With the RLM-W6’s three-chip DLP color quality, your brand is depicted just the way you want it in your company’s lobbies and entrance hall. For auditoriums and other large rooms, Barco’s RLM-W6 offers a light output of 6,000 lumens, which means that presentations will be clearly visible from the first to the last row.
Specification
| Projector type |
WUXGA 3-chip DLP digital projector |
| Technology |
0.67″ DMD™ x3 |
| Resolution |
1,920 x 1,200 |
| Brightness |
6,300 center lumens / 6,000 ANSI lumens (±10%)
|
| Contrast ratio |
2,200:1 (standard) / 3,000:1 (CE) |
| Brightness uniformity |
95% |
| Aspect ratio |
16:10 |
| ScenergiX |
N/A |
| Lens type |
RLDW |
| Lenses |
Fixed: 0.77:1, 1.16:1
Zoom: 1.45–1.74:1, 1.74–2.17:1, 2.17–2.9:1, 2.9–4.34:1, 4.34–6.76:1 |
| Optical lens shift |
Vertical: -100% to +100%
Horizontal: -35% to +35% on zoom lenses |
| Color correction |
P7 |
| Lamps |
2 x 280 W |
| Lamp lifetime |
1,500 hours (typical) / 2,000 hours (maximum) |
| Transport with lamp |
Yes |
| Lamp house, quick replace |
Yes, auto lamp select |
| Lamp warranty (field replace/ factory replace) |
120 days, 500 hours |
| Sealed DLP™ core |
Standard |
| Picture-in-picture |
Up to two sources simultaneously |
| Orientation |
table, ceiling, side (portrait)*, vertical
* lamp door down/bottom |
| WARP |
H+V keystone |
| Integrated web server |
Yes |
| 3D |
Passive circular polarized (optional) |
| Inputs |
2 x HDMI (HDCP 1,3); 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB; YUV); cinch (RGBs, YUV); Composite video; S-Video |
| Input resolutions |
From NTSC up to UXGA (1600×1200), including WUXGA (1920×1200) |
| Max. pixel clock |
165 MHz |
| Software tools |
Projector Toolset |
| Control |
Mini-jack + IR, RS232, 12v trigger |
| Network connection |
10/100 base-T, RJ-45 connection |
| Power requirements |
90–240 V / 50–60 Hz |
| Max. power consumption |
700 W / Standby mode: < 2 W |
| Noise level (typical at 25°C/77°F) |
37 dB(A) |
| Operational ambient temperature |
0–40°C / 32°–104°F |
| Operational humidity |
0–80% (non condensing) |
| Dissipation BTU |
max 2388 BTU/h |
| Dimensions (WxLxH) |
19.69 x 26.36 x 9.72 inches (500 x 669.74 x 247 mm) |
| Weight |
57.3 lb (26 kg) |
| Shipping Dimensions (LxWxH) |
32,28 x 25,98 x 14,96 inches (820 x 660 x 380 mm) |
| Shipping Weight from Factory |
66.1 lb (30 kg) |
| Standard accessories |
Power cord, wireless remote control |
| Certifications |
Compliant with FCC rules and regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RoHS, WEEE |
| Warranty |
3 years standard, 4th or 5th year optional |
