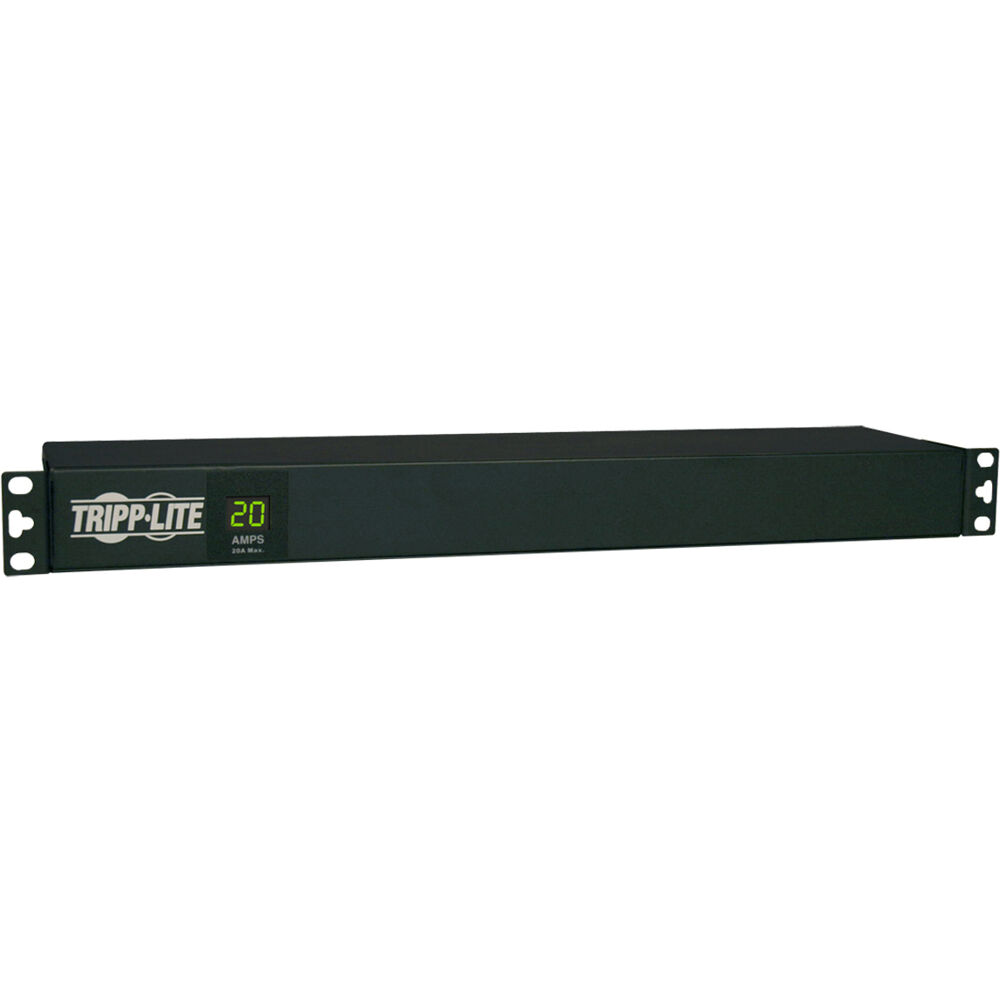

PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM

Ideal Use Cases

The PDUMH20 is built for racks that need straightforward, organized power distribution from a single 120V, 20A branch circuit. Its horizontal 1U form factor makes it especially useful when rack space is limited but clean power routing and local load visibility still matter. For AV, IT, and control environments, this model helps consolidate connected equipment onto one rack-mounted power point instead of relying on loose power strips or scattered wall connections.

• Conference room and corporate AV equipment racks
• Network closets and small telecom installations
• Control system racks and automation enclosures
• Education, hospitality, and house-of-worship rack deployments
• Retrofit projects that need a 1U horizontal metered PDU

It is a practical fit for integrators, installers, and service teams that want better rack organization while keeping an eye on power loading at the distribution point.

Why Choose This Model

This model combines several features that are especially useful in professional rack builds: a 120V / 20A power configuration, 12 outlets, a locking L5-20P input, and local metering in a compact 1U rack-mount design. That combination supports cleaner installations and more informed rack planning without adding unnecessary complexity.

The 12-outlet layout gives you room to power multiple devices from one distribution unit, which can simplify wiring for processors, network hardware, control components, and other rack-based equipment. The metered design adds immediate value during installation and service because it provides local load visibility where the equipment is actually deployed. For teams managing active racks, that can make it easier to assess usage and plan connected loads more confidently.

The locking L5-20P input is also an important advantage in environments where connection security matters. In serviceable racks or shared technical spaces, a locking power connection helps support more stable deployment practices than a non-locking input.

Installation and Integration

The PDUMH20 is designed for horizontal 1U rack mounting, making it easy to integrate into standard equipment racks where front-accessible power distribution is preferred. Before installation, confirm that your rack has an available 1U mounting space and that the site provides a compatible 120V, 20A power source with the appropriate receptacle for the L5-20P locking plug.

The 5-15/20R outlet configuration supports compatible loads that use common 5-15R or 5-20R style connections, giving installers flexibility when powering a mix of rack devices. This can be particularly helpful in AV and IT environments where connected equipment may vary across deployments.

• Mounts in a single horizontal 1U rack space
• Uses a locking L5-20P input connection
• Distributes power to 12 outlets
• Supports 5-15R/5-20R compatible loads

For best integration results, map device current requirements before connecting equipment and position the unit where cord routing remains neat and service access is preserved. In organized racks, this approach can help reduce cable clutter and improve long-term maintainability.

Performance Highlights

At its core, this PDU is designed to deliver organized rack power for 120V / 20A applications while adding the practical benefit of local metering. That meter visibility is useful during deployment, maintenance, and future rack changes because it gives technicians a direct way to observe load conditions at the rack itself.

Key operating facts include:

• 120V power configuration
• 20A capacity
• 12 total outlets
• Horizontal 1U rack-mount format
• Metered design for local load visibility
• L5-20P locking input plug

In day-to-day use, these features make the PDUMH20 well suited for installations where both power organization and quick reference to rack load are important. Instead of treating power as an afterthought, this unit helps make it a more manageable part of the overall rack design.

What Makes It Different

What sets this model apart is its balance of density, visibility, and installation practicality. A 1U horizontal PDU with 12 outlets is a strong fit for compact racks that still need to support multiple connected devices. Adding metering makes the unit more useful than basic non-metered distribution options in environments where technicians benefit from seeing rack-level load information without relying solely on upstream infrastructure.

The locking L5-20P input also reinforces its suitability for professional installations. In AV, IT, and control racks, secure power connections can be just as important as outlet count, especially in racks that are accessed for service or updated over time. Combined with support for 5-15R/5-20R compatible loads, the unit is positioned to work well in a wide range of standard North American rack applications.

Final Assessment

The PDUMH20 is a smart choice for buyers who need a metered 120V / 20A rack PDU with 12 outlets in a horizontal 1U format. It is particularly well suited for AV, IT, and control racks where organized power distribution, a locking input connection, and local load visibility all contribute to a cleaner and more manageable installation.

If your project calls for a rack-mounted power solution that helps simplify cable management, supports better branch-circuit planning, and fits into a single 1U space, this model offers a strong combination of practical features for professional deployments.
