Dual-Extension Monitor Mount for Slat Wall System, 13" to 32" Displays

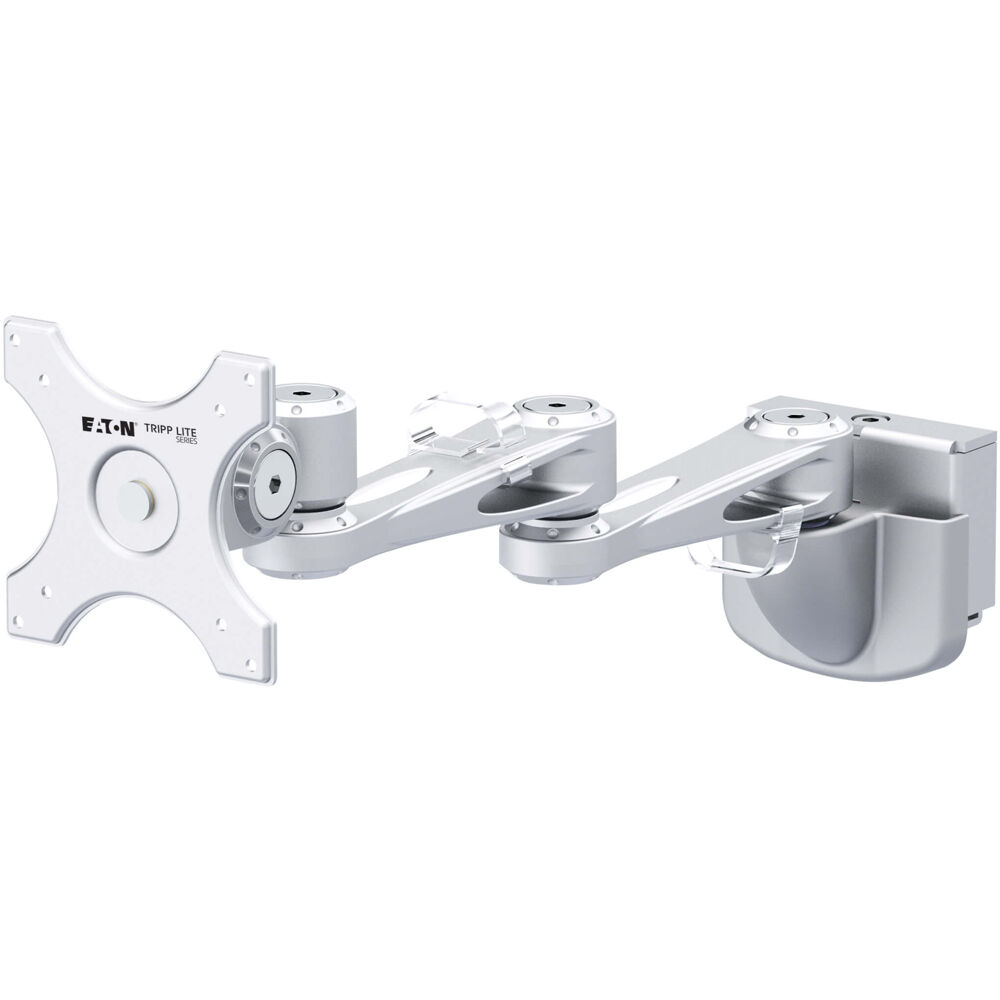

The Eaton Tripp Lite series DMSW1332LTAA is a dual-extension monitor mount designed for a slat wall system. It supports one monitor or HDTV measuring 13 to 32 inches and weighing up to 22 lb. The silver aluminum mount combines height adjustment with full-motion positioning, including 360-degree swivel, 60-degree tilt, and rotation. Compatibility with 75 x 75 mm and 100 x 100 mm VESA patterns supports two widely used display mounting configurations.

Ideal Use Cases

This model is suited to slat wall installations that require an adjustable mounting point for a single display. It can accommodate either a monitor or HDTV within its specified size and weight limits, making it appropriate for setups centered on a 13- to 32-inch screen. Its combination of swivel, tilt, rotation, and height adjustment is useful when a display must be repositioned for different viewing angles or working positions. The dual-extension design also provides more positioning flexibility than a fixed display mount.

Why Choose This Model

The DMSW1332LTAA brings several clearly defined capabilities together in one mounting solution. It supports displays up to 22 lb while offering both 75 x 75 mm and 100 x 100 mm VESA compatibility. A 360-degree swivel range allows the mounted display to turn through a complete circle, while 60 degrees of tilt supports vertical angle adjustment. Rotation and height adjustment add further control over display placement. Its aluminum construction and silver finish provide a consistent physical design for compatible slat wall installations.

This model is also TAA compliant and listed as RoHS compliant. Those compliance details distinguish it for purchasing requirements where TAA status or RoHS compliance must be considered. The supplied UPC is 037332286499, and the manufacturer catalog number, model, MPN, and SKU are all DMSW1332LTAA.

Installation and Integration

Assembly is required, and the product information indicates that tools are necessary. The package includes the DMSW1332LTAA monitor mount, four M4 x 10 screws, a hex wrench, two cable-management clips, and an owner’s manual. The included hex wrench and mounting screws provide the listed hardware for assembly, while the cable-management clips can be used to organize attached display cables around the mount.

Before installation, confirm that the intended display measures between 13 and 32 inches, weighs no more than 22 lb, and has either a 75 x 75 mm or 100 x 100 mm VESA mounting pattern. The source identifies the mounting location as desktop while describing the product itself as a mount for a slat wall system. Its listed physical dimensions are 3.8 inches in length or depth, 3.9 inches in width, and 18.6 inches in height. Product weight is 3.6 lb.

Performance Highlights

The mount’s principal performance feature is its range of physical display adjustment. The 360-degree swivel supports broad side-to-side repositioning, and the 60-degree tilt range allows the screen angle to be changed vertically. Full-motion and rotation capabilities supplement these movements, while height adjustment helps place the display at a suitable vertical position. The mount is intended for one display and has a maximum weight capacity of 22 lb. The supplied product data also lists a minimum/maximum arm-extension value of 18.6, although no unit is specified for that value.

What Makes It Different

Unlike a basic fixed mount, the DMSW1332LTAA combines a dual-extension configuration with swivel, tilt, rotation, and height adjustment. Its compatibility with both monitors and HDTVs broadens the types of supported display, provided the screen remains within the stated dimensional, weight, and VESA limits. TAA compliance is explicitly confirmed, and RoHS compliance is also listed. The inclusion of cable-management clips, mounting screws, a hex wrench, and an owner’s manual gives installers the specific package contents identified by Eaton.

Final Assessment

The Eaton DMSW1332LTAA is a focused single-display mounting solution for compatible slat wall systems. Its strongest attributes are support for 13- to 32-inch displays, a 22 lb capacity, two common VESA patterns, and multidirectional adjustment through swivel, tilt, rotation, and height controls. Aluminum construction, included assembly hardware, cable-management clips, and confirmed TAA and RoHS compliance complete a clearly specified option for adjustable monitor or HDTV placement.
