Key Features
Screen Array Configuration: screen width x screen height
Single drop for fast installation
Micro-adjustable roll of ±3° for perfect leveling
360° swivel for optimal viewing angles
Single horizontal extrusion keeps screens aligned
Interface brackets with Centris technology allow for easy tilt adjustment from -5 to 20°
Allows for tool-free installation of displays
Secures displays with optional padlock security
Chief LCB2X1U Overview

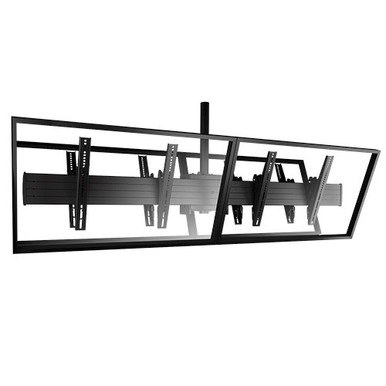

The black FUSION LCB2X1U Large Back to Back Ceiling Mountable 2 x 1 Menu Board Mount from Chief makes construction of menu boards possible using four 40 to 55” displays in prominent locations where walls aren't available. Combine several menu board mount units to easily create longer menu boards. This ceiling-mounted menu board is suitable for digital signage installations.
This menu board mount includes a ceiling mount assembly, 8 interface brackets, and all the necessary mounting hardware. The interface brackets allow -5° to 20° tilt and can be locked at 0°, 10°, and 20° tilt.
This menu board mount is intended to be used with the CPA330, CPA365, and CPA395 UL-listed CPA Ceiling Plates (sold separately) and FCAX08, FCAX14, and FCAX20 UL-listed Extension Brackets (sold separately). The CMA330, CMA345, and CMA395 Ceiling Plates without swaged collars may also be used.
You can add a padlock (sold separately) to each interface bracket to lock the display to the ceiling mount.
- Screen Array Configuration: screen width x screen height
- Single drop for fast installation
- Micro-adjustable roll of ±3° for perfect leveling
- 360° swivel for optimal viewing angles
- Single horizontal extrusion keeps screens aligned
- Interface brackets with Centris technology allow for easy tilt adjustment from -5 to 20°
- Allows for tool-free installation of displays
- Secures displays with optional padlock security
- Fits four 40 to 55" screens
- An FCAX series extension bracket can be added for larger screens up to 65"
- Compatible with traditional 1.5" NPT and new CPA-pinned ceiling plates and column systems (sold separately)
- UL listed
Chief LCB2X1USpecs
| Compatible with |
To confirm the compatibility of this mount with your display, visit Chief's MountFinder. |
| Used with |
CPA330, CPA365, and CPA395 CPA Ceiling Plates
FCAX08, FCAX14, and FCAX20 Extension Brackets
CMA330, CMA345, and CMA395 Ceiling Plates without Swaged Collars |
| Mounting Pattern Compatibility (Universal Version) |
Any width x 100 to 400 mm |
| Post-Installation Leveling (Roll) |
±3° |
| Solution Type |
Universal |
| Tilt |
-5°, +20° |
| Typical Screen Sizes |
40.0 to 55.0" (101.6 to 139.7 cm)
Can mount screens up to 65" with an FCAX series extension bracket (sold separately) |
| Load Capacity |
Maximum Weight Allowed for Each Display: 100.00 lb (45.35 kg)
Maximum Weight Capacity of Mounting System: 400.0 lb (181.4 kg) |
Packaging Info
| Box Dimensions (LxWxH) |
82.5 x 12.5 x 12" |
